Exploded View - Rear Wheel Sensor

RH Side

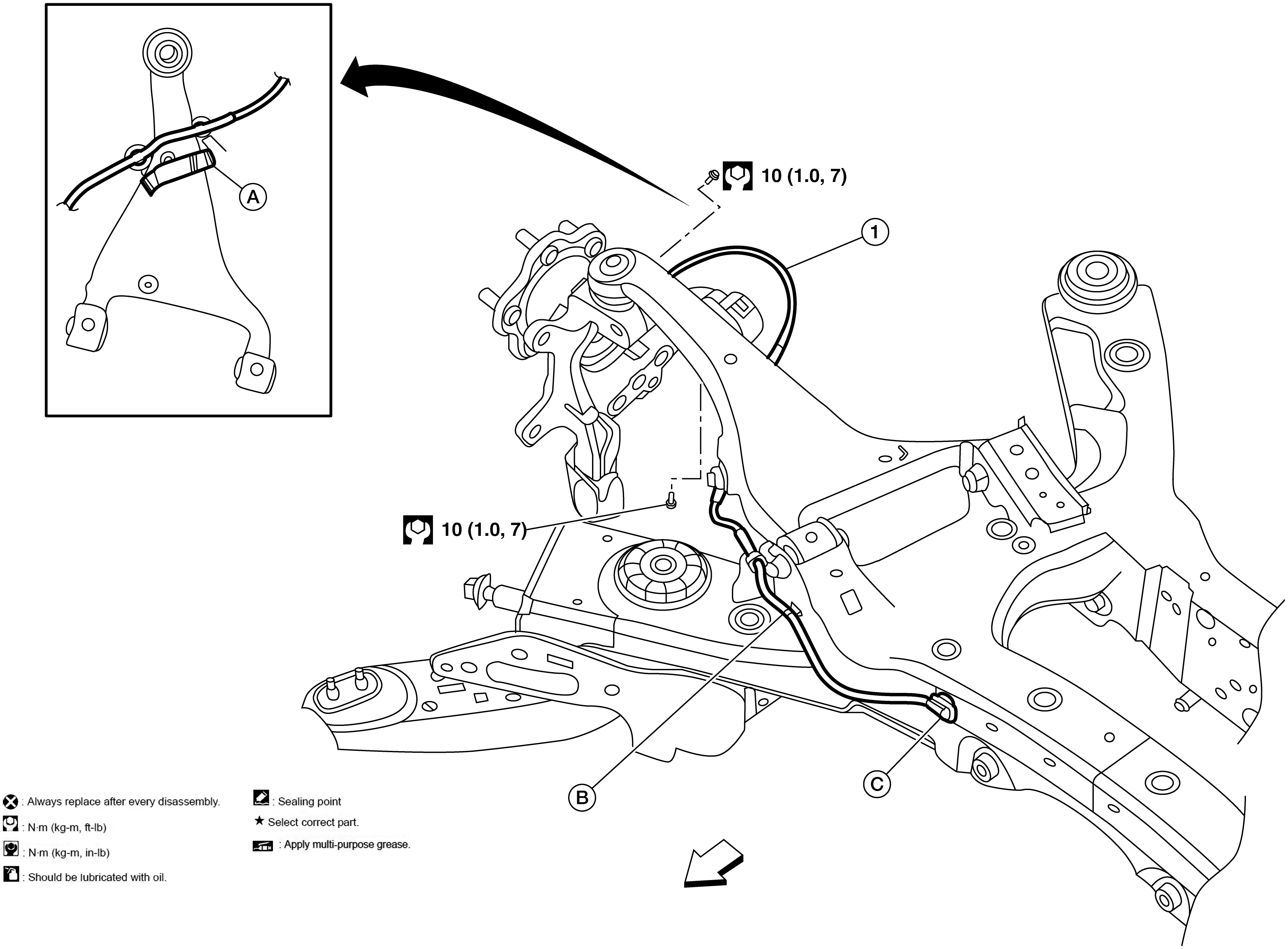

Fig 1: Exploded View Of Rear Wheel Sensor (RH Side) With Torque Specifications
G09425492Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear wheel sensor A. Rear wheel sensor bracket B. Clip
C. Rear wheel sensor connector ARROW Front

LH Side

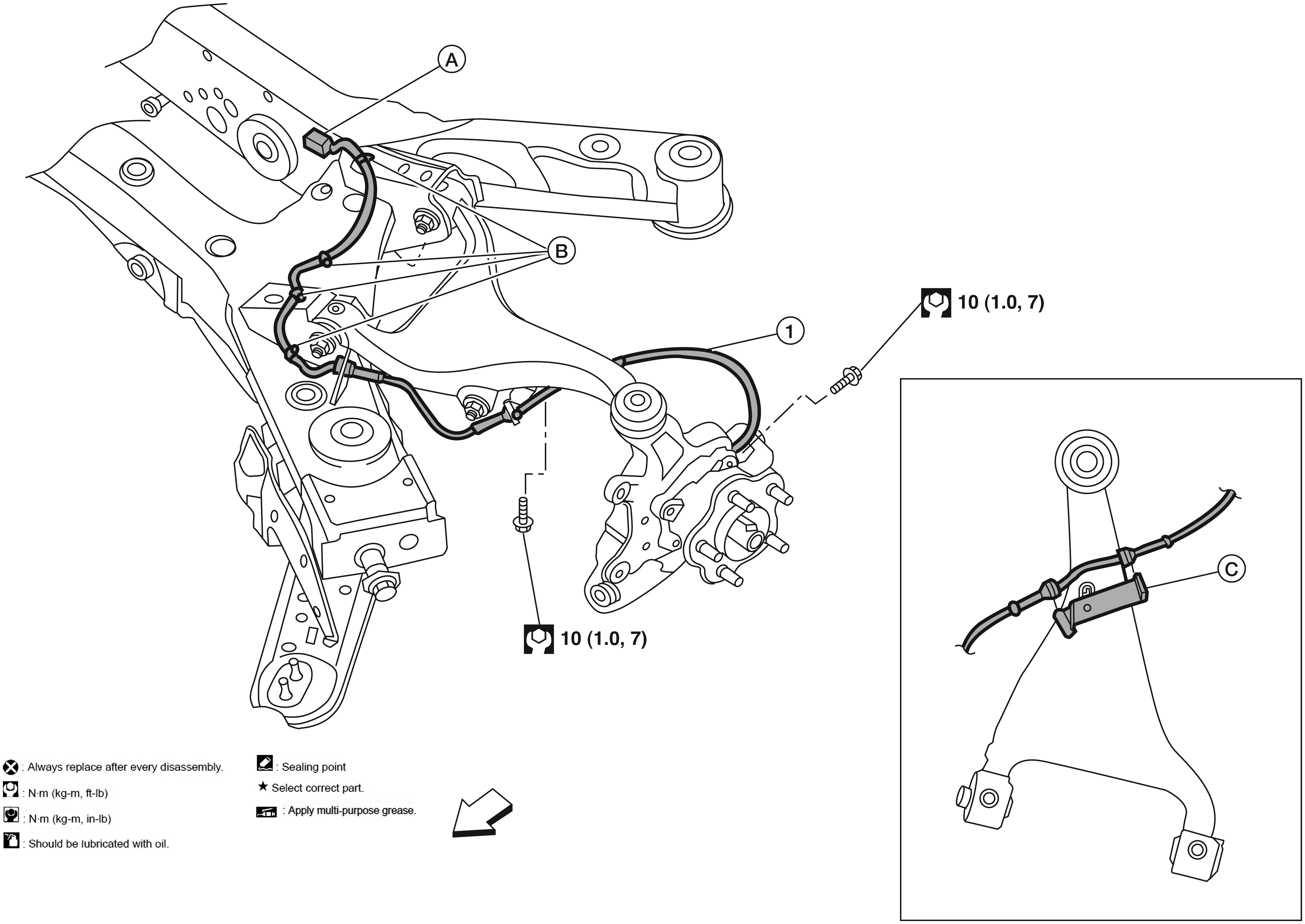

Fig 2: Exploded View Of Rear Wheel Sensor (LH Side) With Torque Specifications
G09425493ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Rear wheel sensor A. Rear wheel sensor connector B. Clip
C. Rear wheel sensor bracket ARROW Front
