Exploded View - Front Wheel Sensor

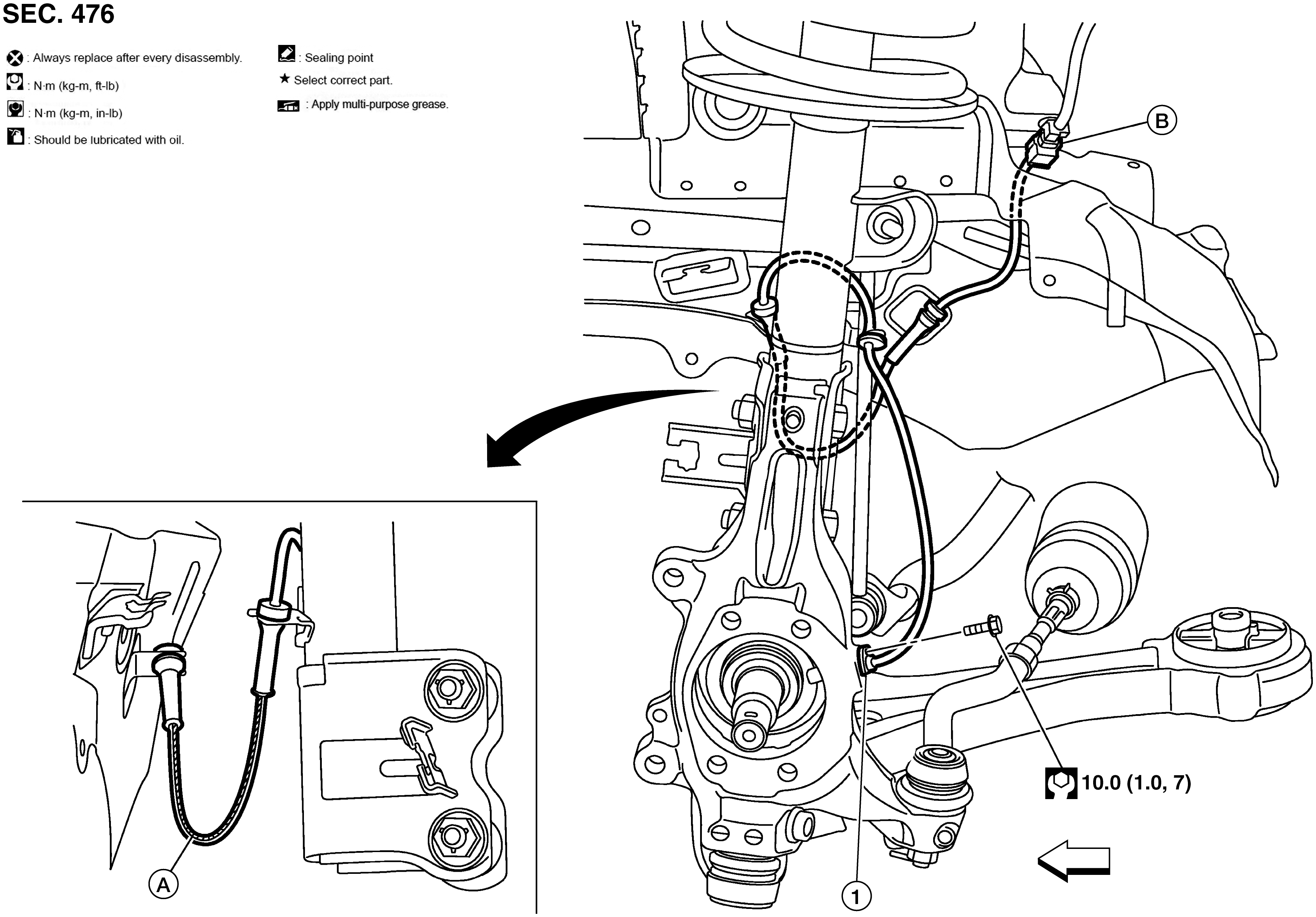

Fig 1: Exploded View Of Front Wheel Sensor With Torque Specifications
G09425490ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Front wheel sensor A. Color line (slant line) B. Front wheel sensor connector
ARROW Front
