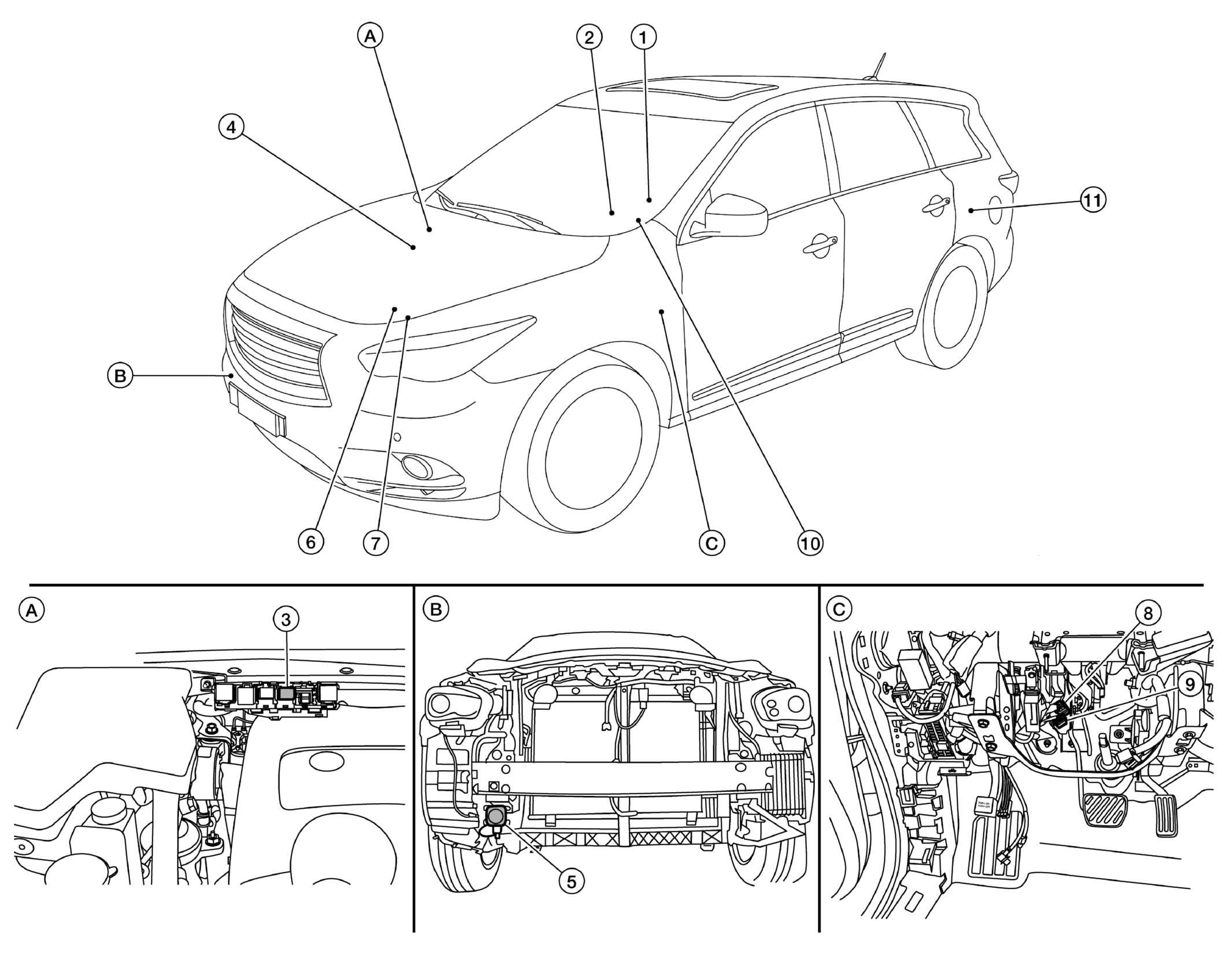

Component Parts Location
| 1. | ICC steering switch | 2. | Vehicle information display, ICC system warning lamp, IBA OFF indicator lamp, buzzer (On the combination meter) |
3. | ICC brake hold relay (view with relay cover removed) |
| 4. | ABS actuator and electric unit (control unit) | 5. | ICC sensor (view with front fascia removed) |
6. | TCM |
| 7. | ECM | 8. | Stop lamp switch (view with instrument panel LH removed) |
9. | ICC brake switch (view with instrument panel LH removed) |
| 10. | Steering angle sensor | 11. | ADAS control unit | ||
| A. | Back side of engine room (RH) | B. | Front bumper | C. | Upper side of brake pedal |
