Exploded View With Torque Specifications

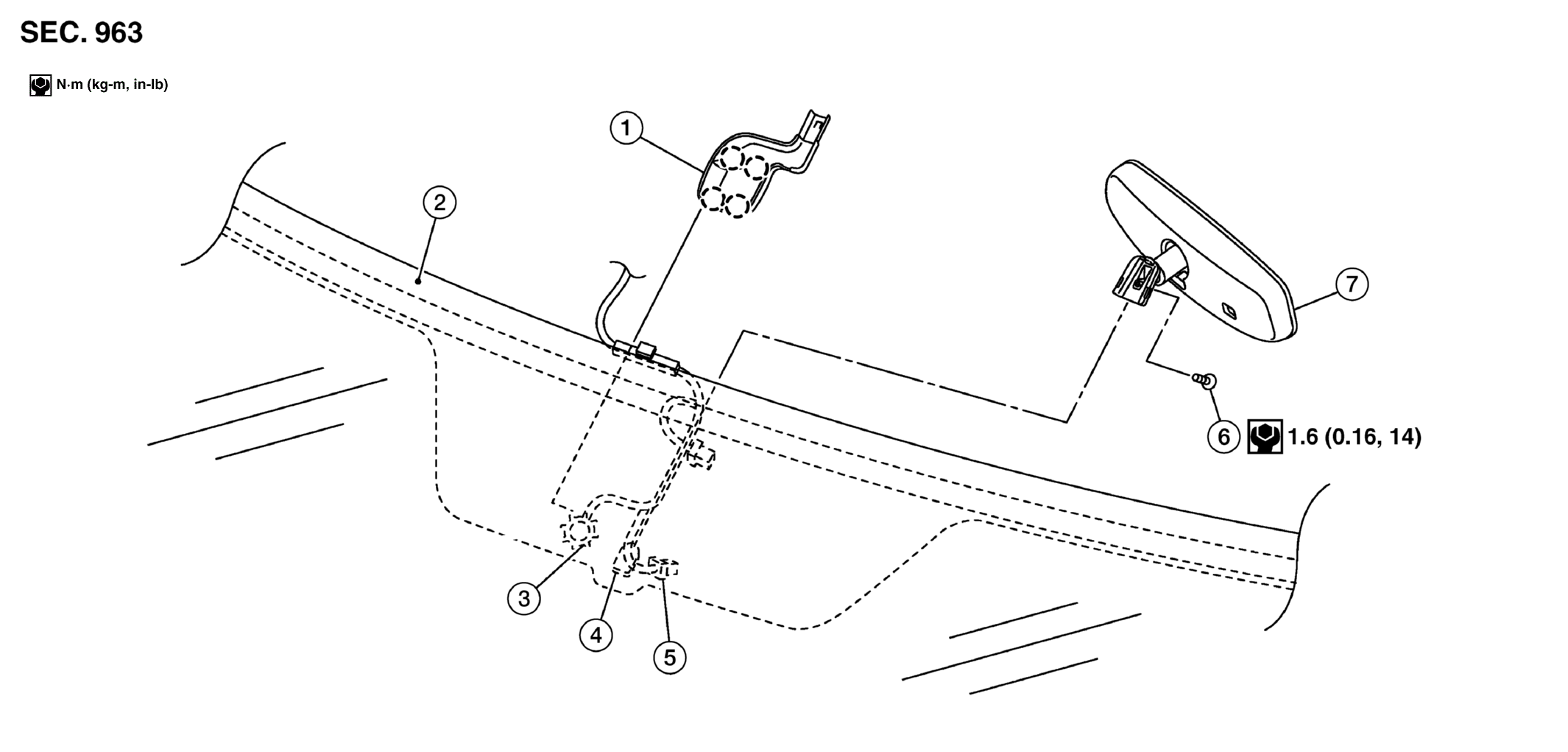

WITH RAIN SENSOR
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Rain sensor finisher |
2. |
Windshield glass |
3. |
Rain sensor |
| 4. |
Mirror base |
5. |
Harness connector |
6. |
Bolt |
| 7. |
Inside mirror |
 |
Pawl |
|
|
WITHOUT RAIN SENSOR
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Windshield glass |
2. |
Mirror base |
3. |
Harness connector |
| 4. |
Bolt |
5. |
Inside mirror |
6. |
Inside mirror finisher |
