Infiniti
>>
2015
>>
QX50 Base, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Wiring Diagram
>>
AWD System
>>
AWD System Connector End Views
AWD System Connector End Views

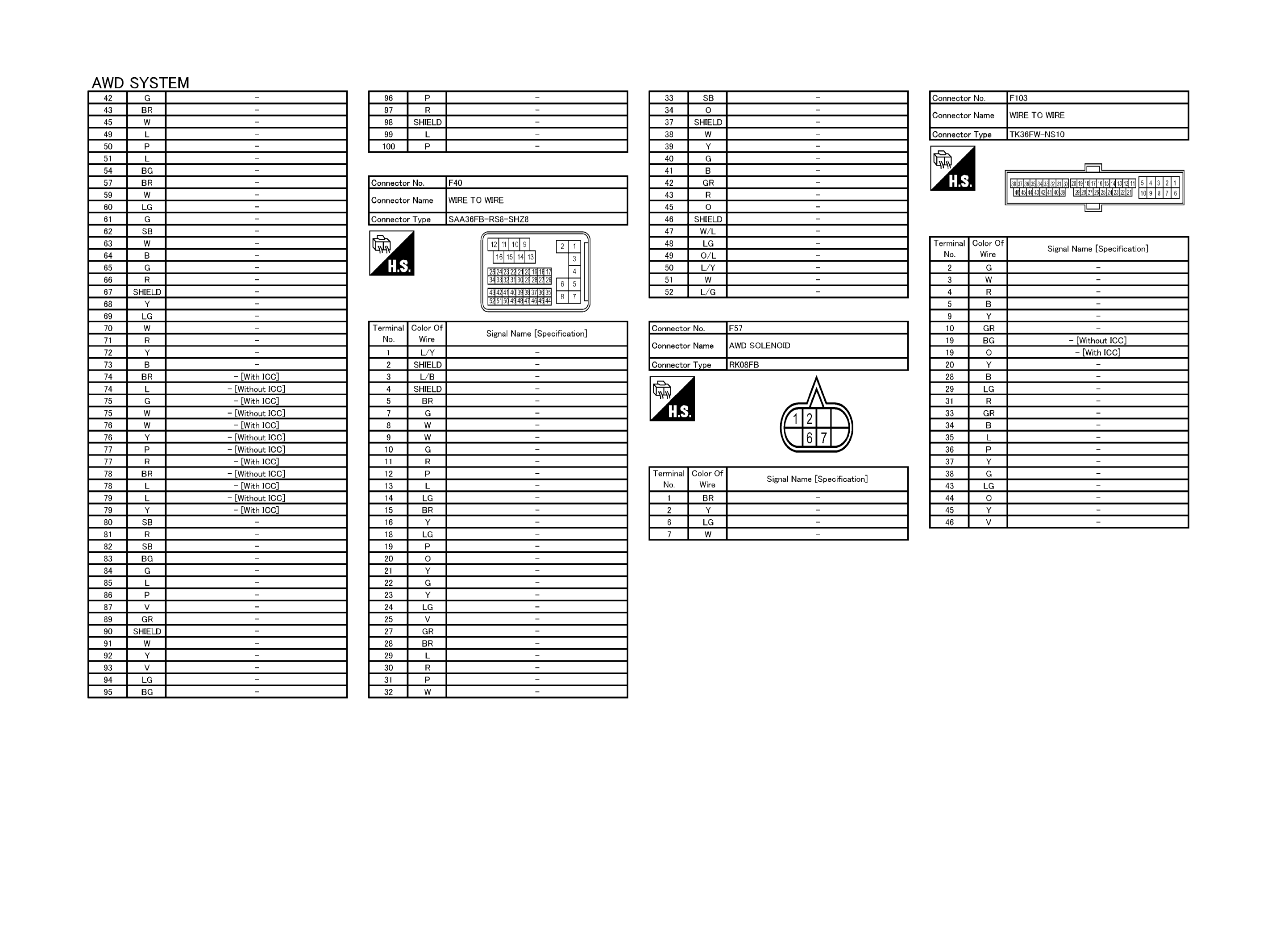

Fig 1: AWD System Connector End Views (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

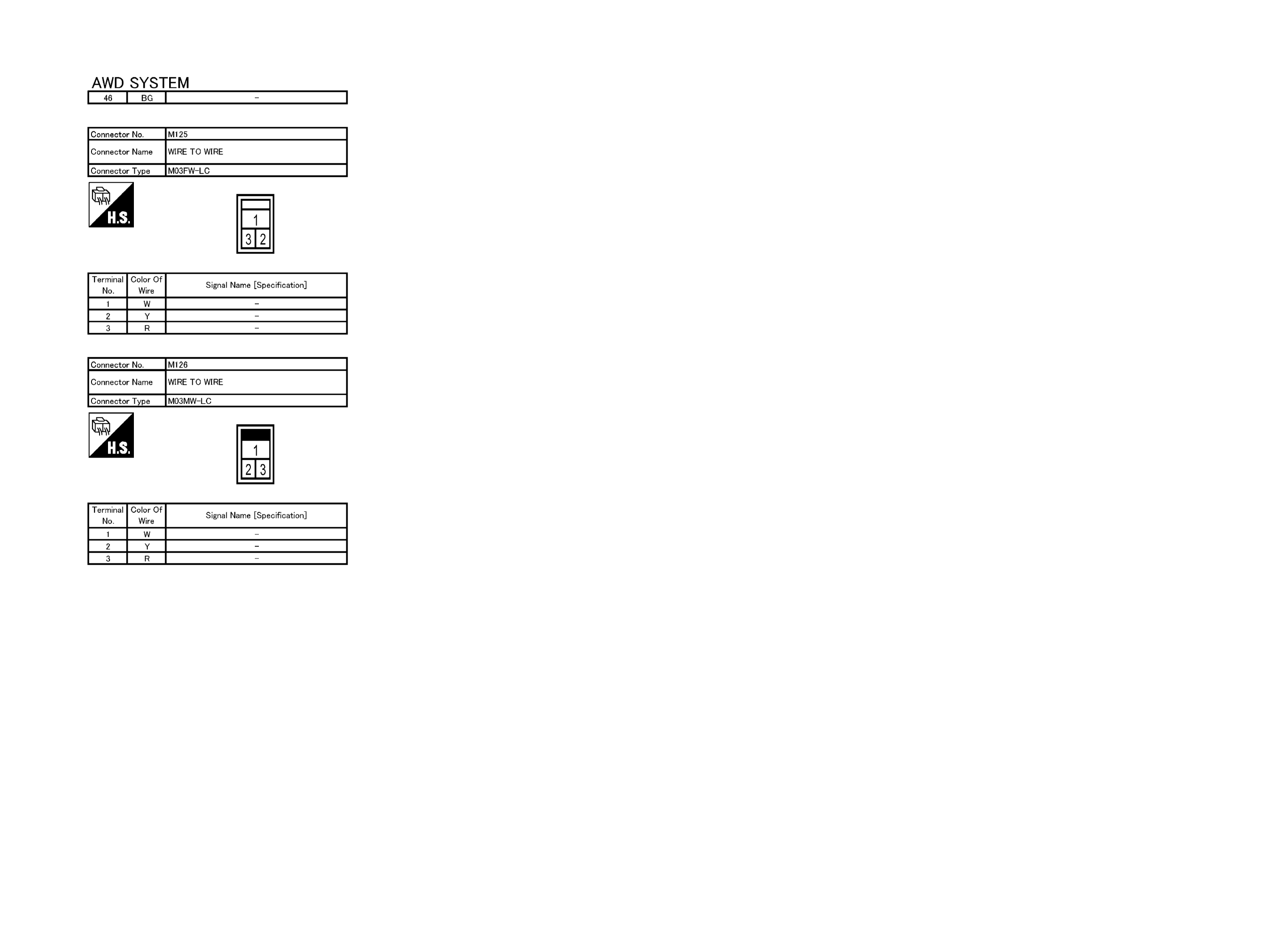

Fig 2: AWD System Connector End Views (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

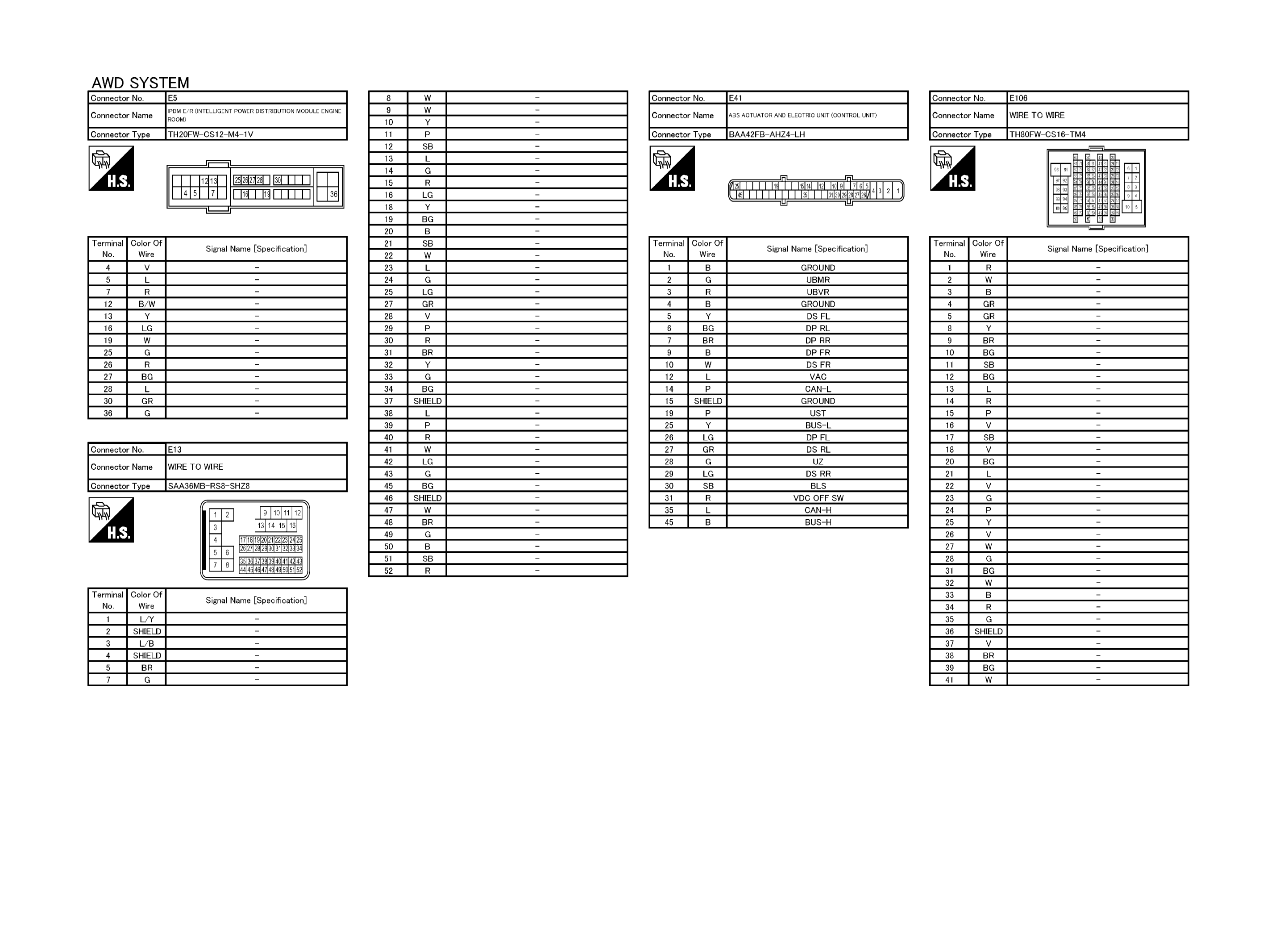

Fig 3: AWD System Connector End Views (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

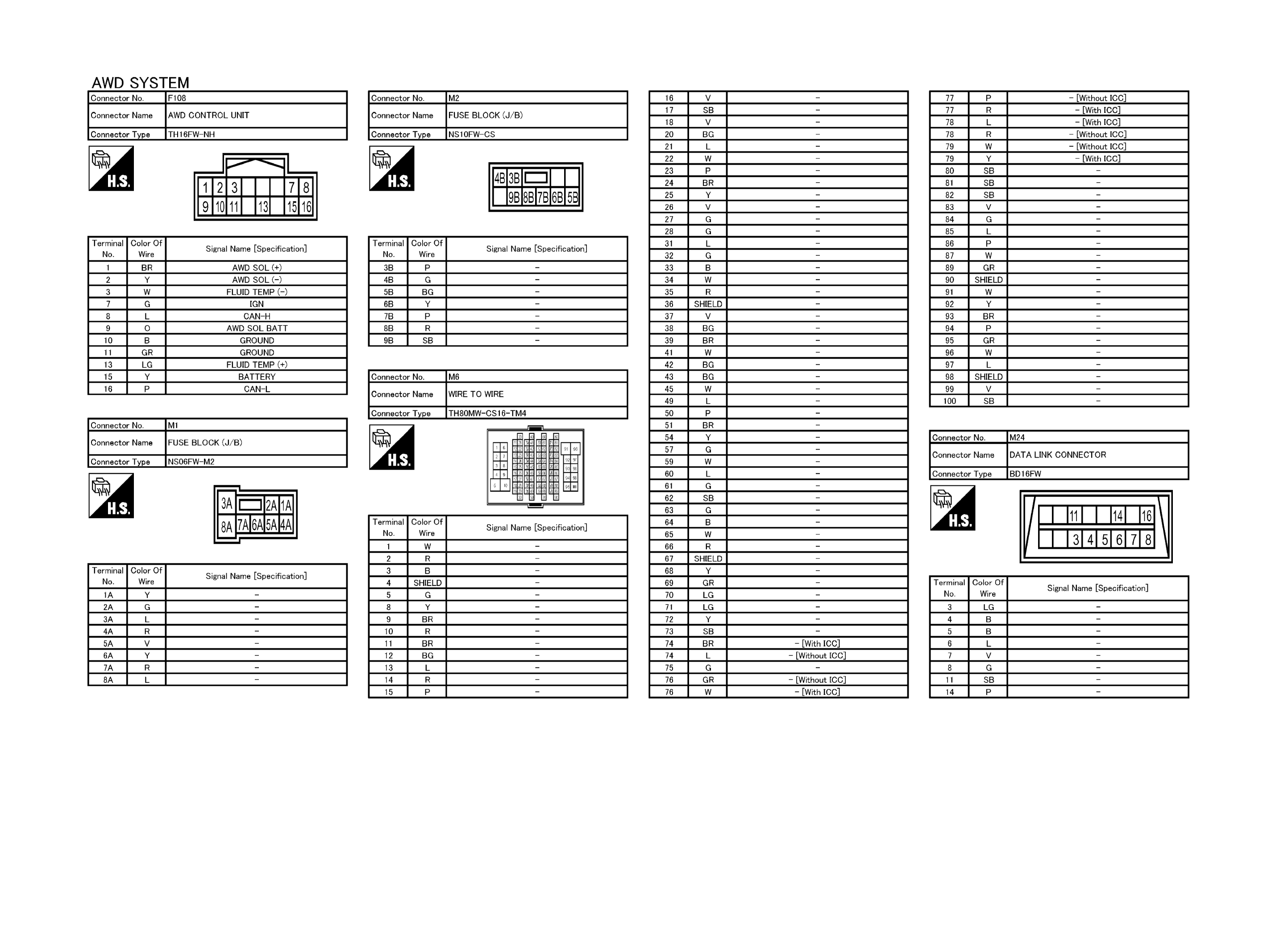

Fig 4: AWD System Connector End Views (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: AWD System Connector End Views (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
