Home >> Infiniti >> 2015 >> QX50 Base, AWD >> Repair and Diagnosis >> Steering >> Steering Control Systems >> Steering Control System (EPS) >> Ecu Diagnosis Information >> Power Steering Control Unit >> Wiring Diagram - Electronically Controlled Power Steering System -

Wiring Diagram - Electronically Controlled Power Steering System -

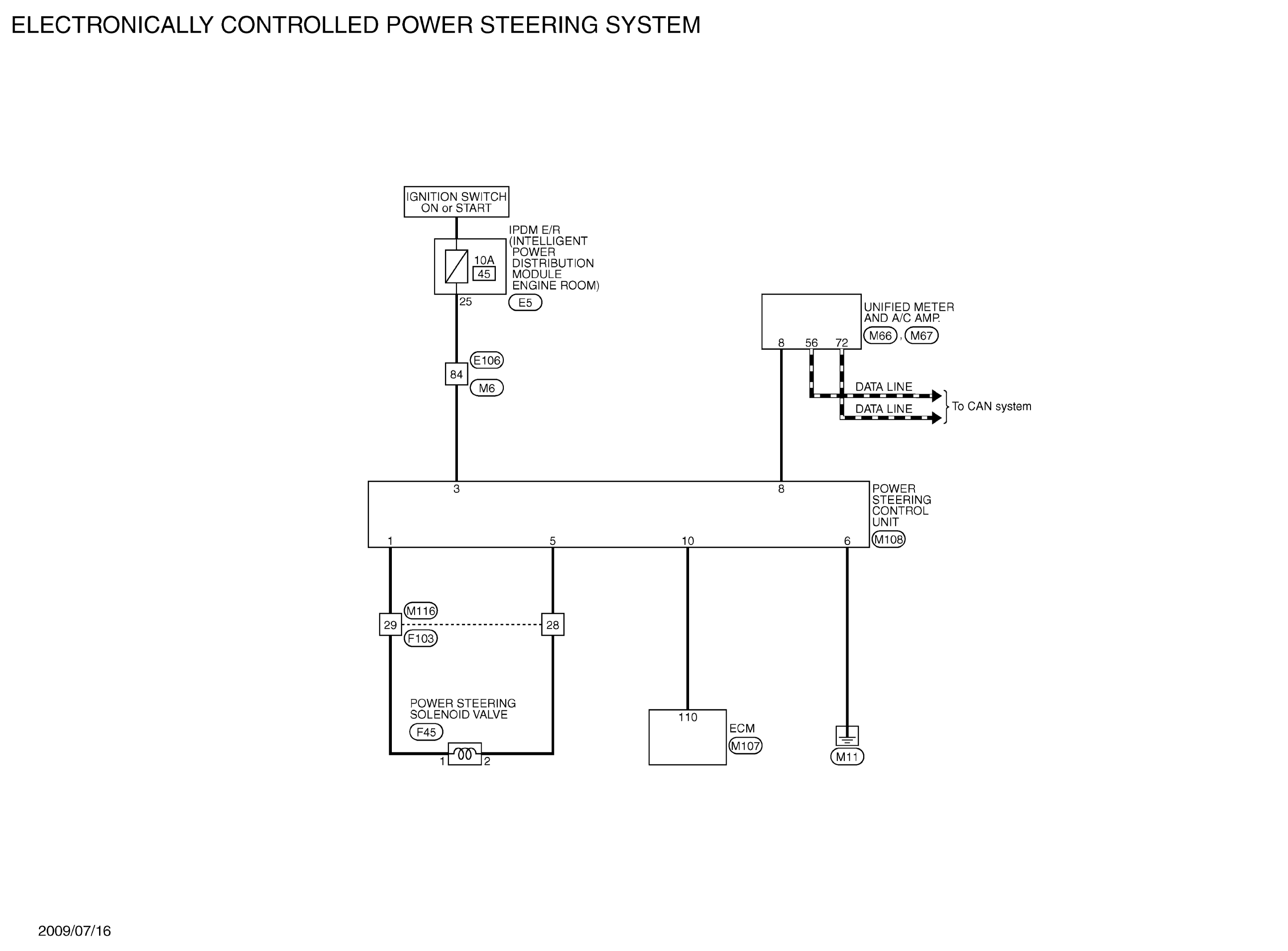

Fig 1: Electronically Controlled Power Steering System Wiring Diagram

G07165924

Courtesy of NISSAN NORTH AMERICA, INC.
