Components Location
WARNING: This page is about a different car, the 2015 Infiniti Q70. However, it is still accessible from the selected car via links, so may be relevant.

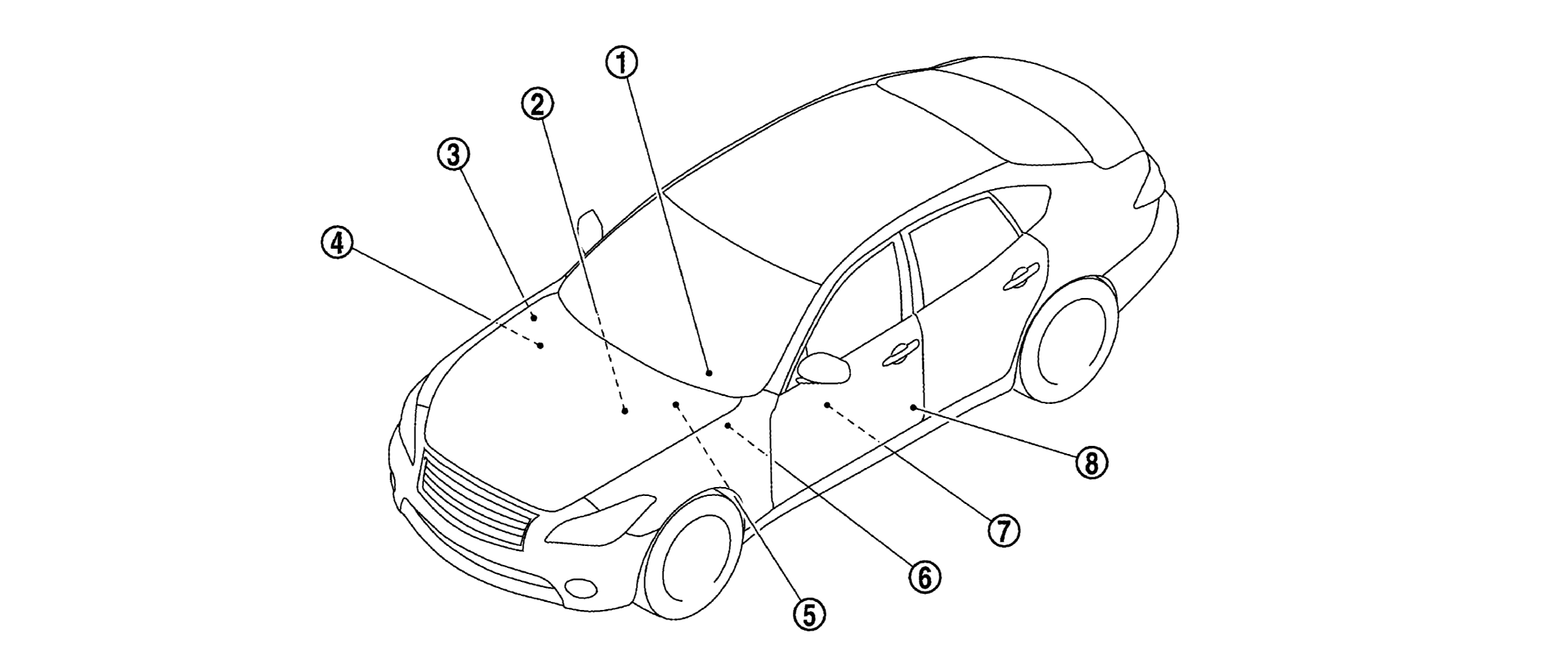

| 1. | Combination meter | 2. | ECM Refer to COMPONENTS LOCATION . |
3. | IPDM E/R Refer to COMPONENTS LOCATION . |
| 4. | CAN gateway Refer to COMPONENTS LOCATION . |
5. | Electrically-driven intelligent brake unit Refer to COMPONENTS LOCATION . |
6. | BCM Refer to COMPONENTS LOCATION . |
| 7. | Driver seat control unit Refer to COMPONENTS LOCATION . |
8. | Pre-crash seat belt control unit (driver side) Refer to COMPONENTS LOCATION . |
