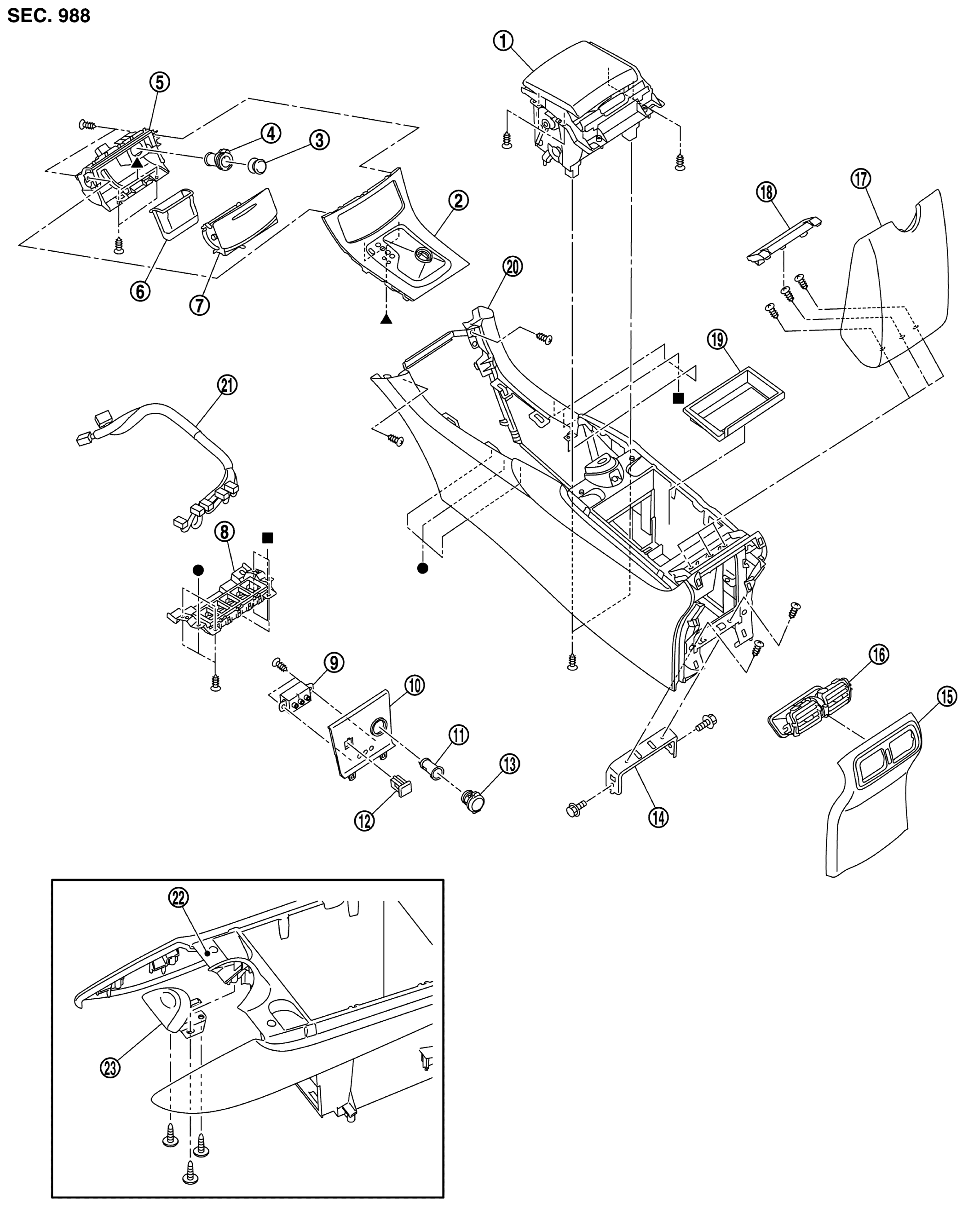

Exploded View With Torque Specifications
| 1. | Cup holder assembly | 2. | Console finisher assembly | 3. | Socket knob |
| 4. | Socket inner case | 5. | 6. | Inner ashtray | |
| 7. | Ashtray lid | 8. | Switch panel | 9. | Auxiliary input jack |
| 10. | Console center finisher | 11. | Socket inner case | 12. | USB connector |
| 13. | Socket knob | 14. | Console bracket | 15. | Console rear finisher |
| 16. | Rear ventilator grille | 17. | Console lid assembly | 18. | Console mask |
| 19. | Console pocket | 20. | Center console assembly | 21. | Console sub harness |
| 22. | Console box | 23. | Console lid release button | ||
| • , ■ , Solid Triangle : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
