Exploded View With Torque Specifications

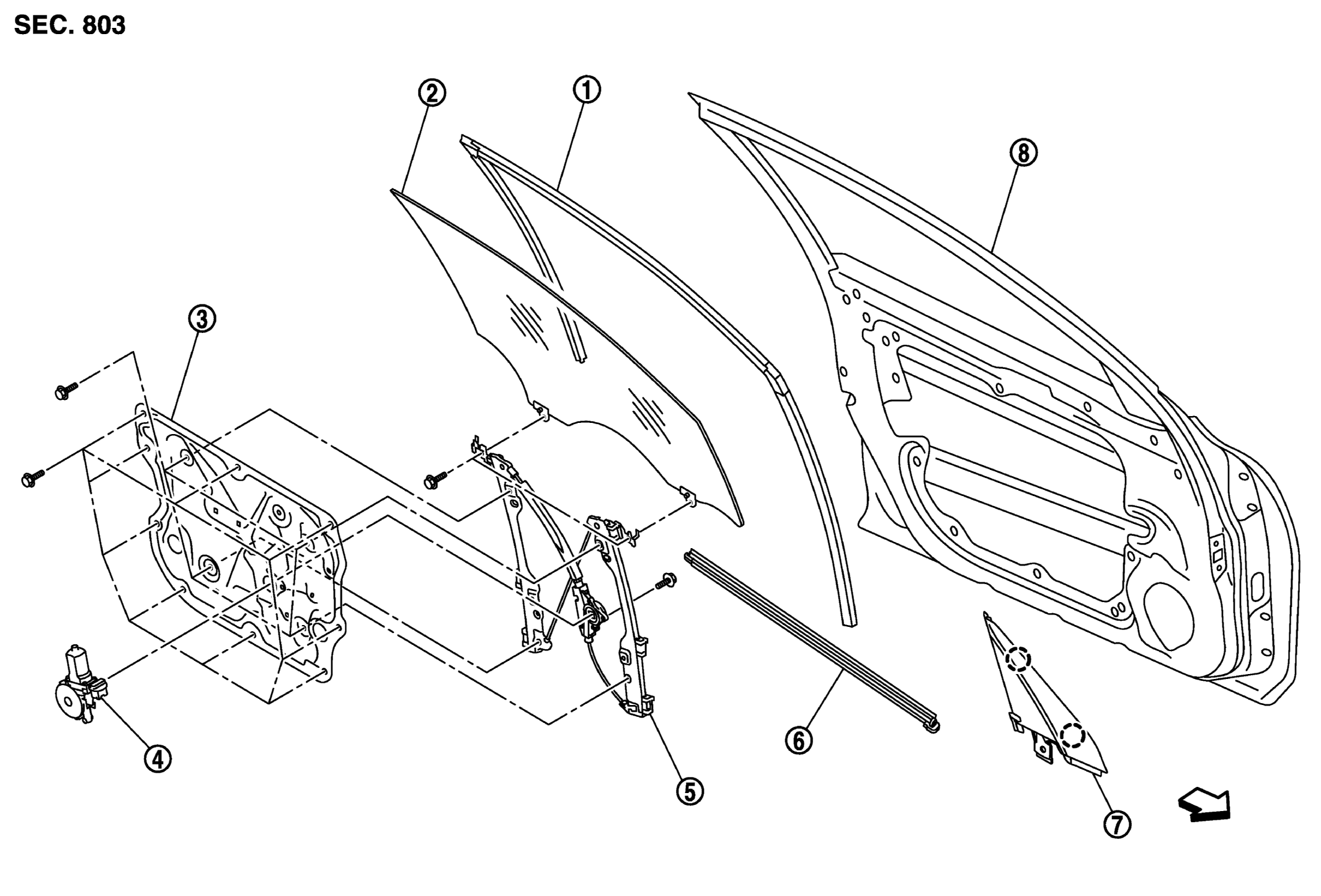

Fig 1: Exploded View Of Front Door Window Regulator & Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front door glass run	2.	Front door glass	3.	Module base
4.	Power window motor	5.	Regulator assembly	6.	Front door inside seal
7.	Corner cover	8.	Front door panel
◦	: Clip
==>	: Vehicle front
