Components Location

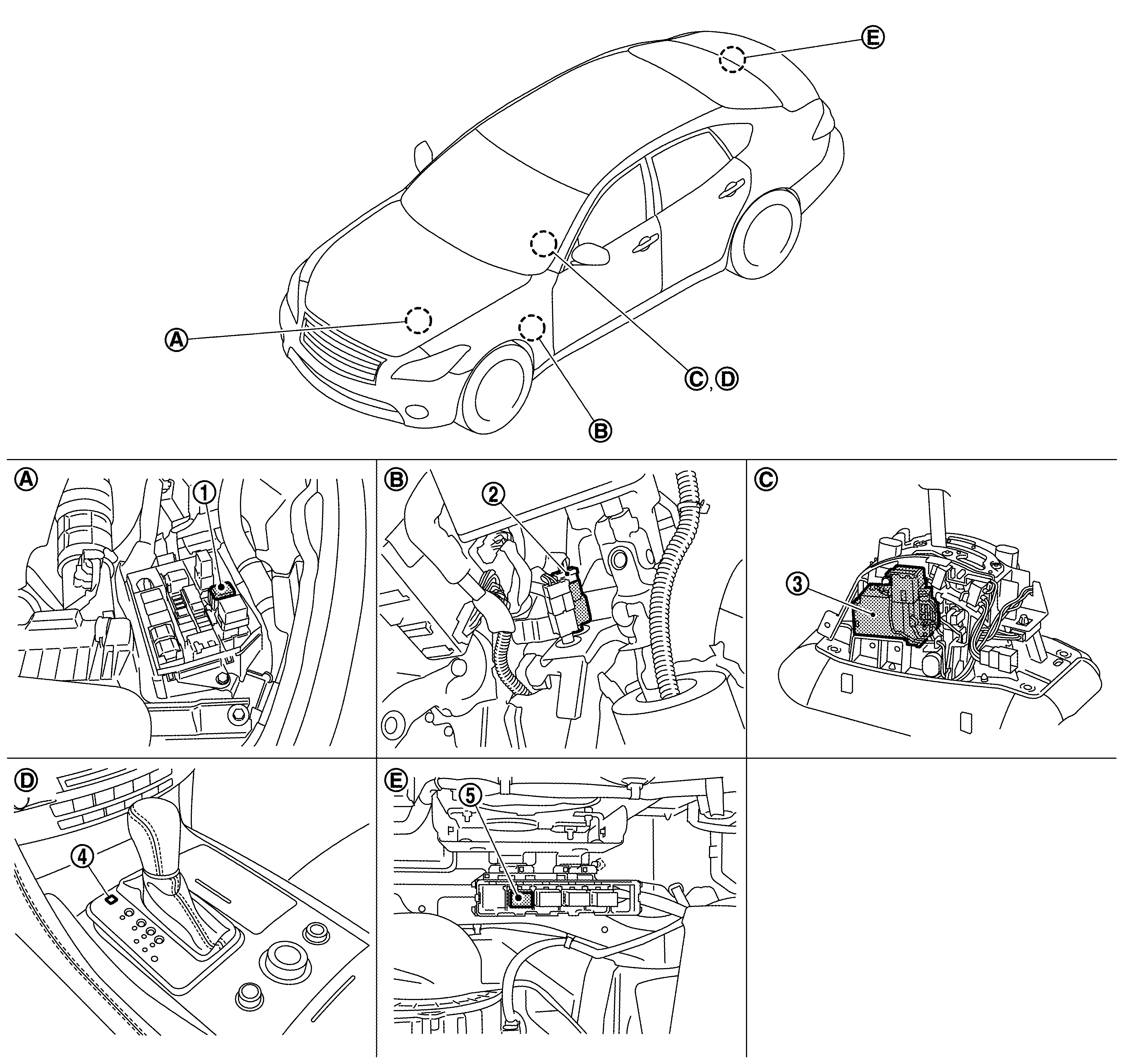

Fig 1: Automatic Transmission Shift Lock System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shift lock relay	2.	Stop lamp switch	3.	Shift lock unit
4.	Shift lock cover *	5.	Stop lamp OFF relay 1
A.	Brake pedal, upper	B.	Engine room, LH	C.	A/T shift selector
D.	Center console	E.	Trunk room, center
*: Shift lock release button becomes operative by removing shift lock cover.
