Components Location

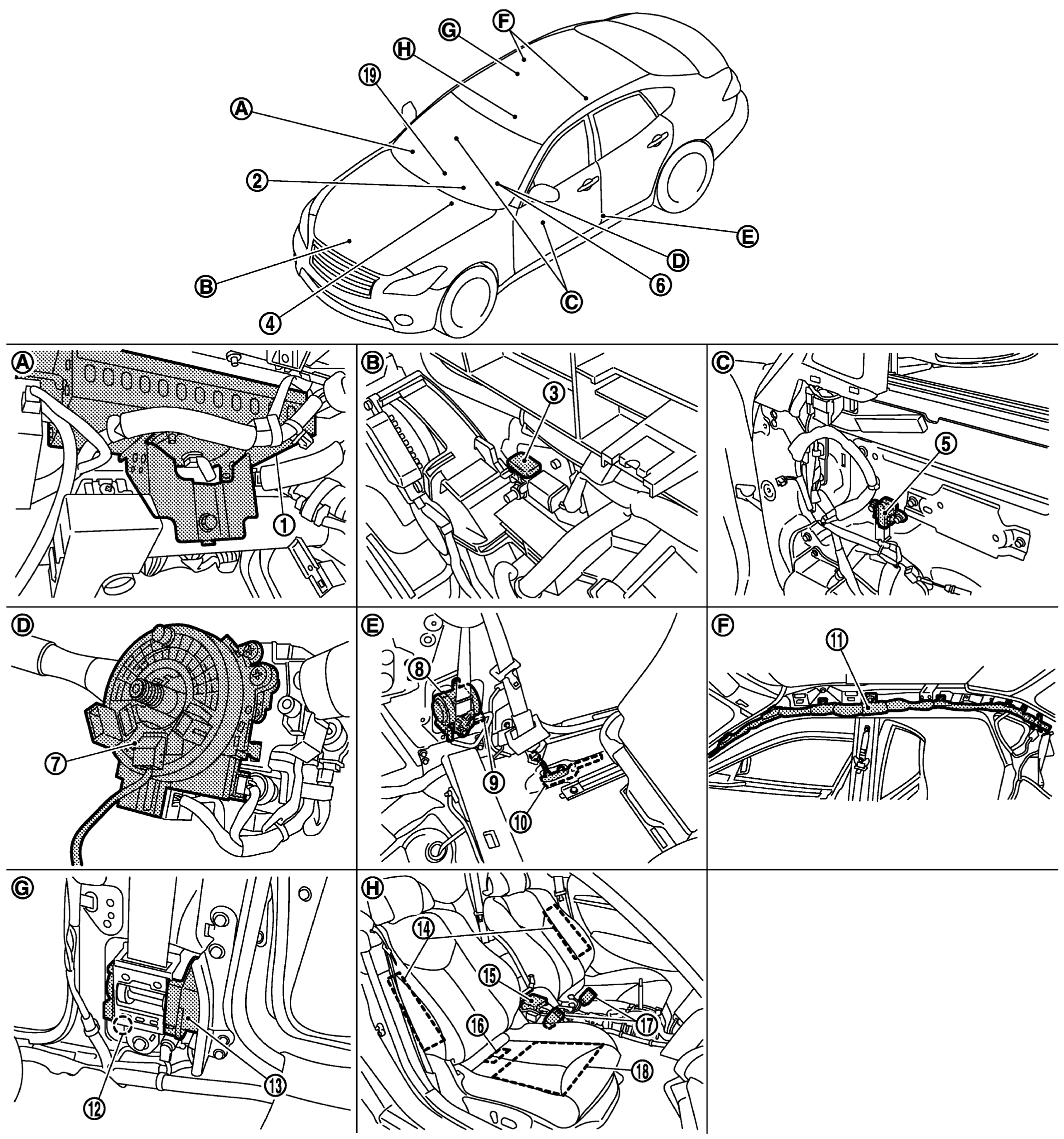

Fig 1: SRS Airbag Control System Components Location
G09418386Courtesy of NISSAN NORTH AMERICA, INC.
1. Passenger air bag module 2. Combination meter
Refer to COMPONENTS LOCATION .
3. Crash zone sensor
4. BCM
Refer to COMPONENTS LOCATION .
5. Front door satellite sensor LH/RH 6. Driver air bag module
7. Combination switch (spiral cable) 8. Seat belt pre-tensioner LH 9. Satellite sensor LH
10. Lap pre-tensioner LH 11. Curtain air bag module LH/RH 12. Satellite sensor RH
13. Seat belt pre-tensioner RH 14. Side air bag module LH/RH 15. Air bag diagnosis sensor unit
16. Occupant classification system control unit 17. Seat belt buckle switch LH/RH 18. Occupant classification system sensor
19. Multifunction switch (passenger air bag off indicator)
A. View with glove box removed B. Radiator core support assembly C. View with door finisher removed
D. View with steering wheel removed E. Behind rear side finisher F. View with headlining assembly removed
G. Behind rear side finisher H. View with center console assembly removed
