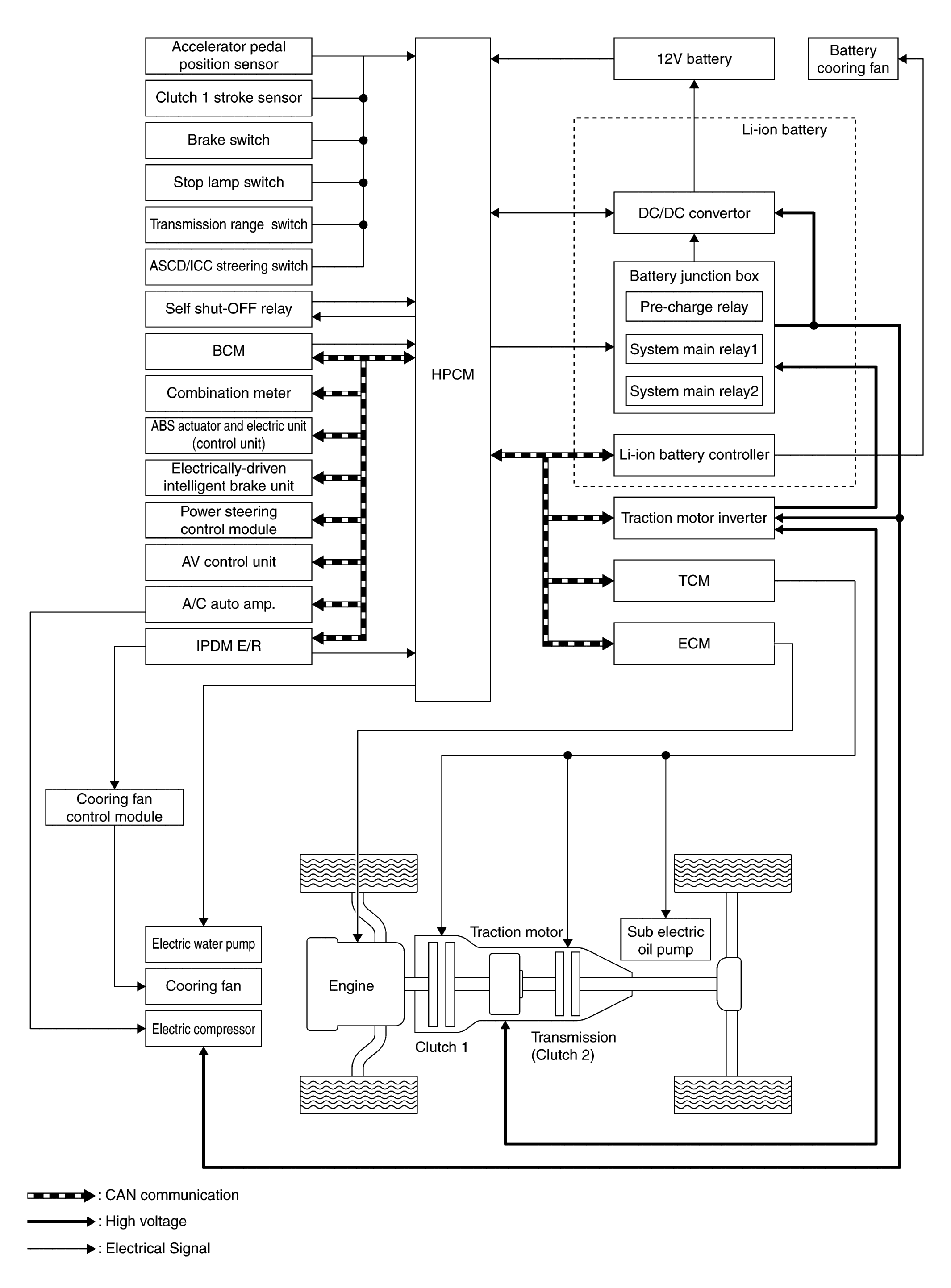

Home >> Infiniti >> 2015 >> Q70 Hybrid >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Electric Converters and Controllers >> Hybrid Control System - Introduction >> System Description >> System >> Hybrid Control System >> System Description >> System Diagram
