Wiring Diagram - Consult/GST Checking System -

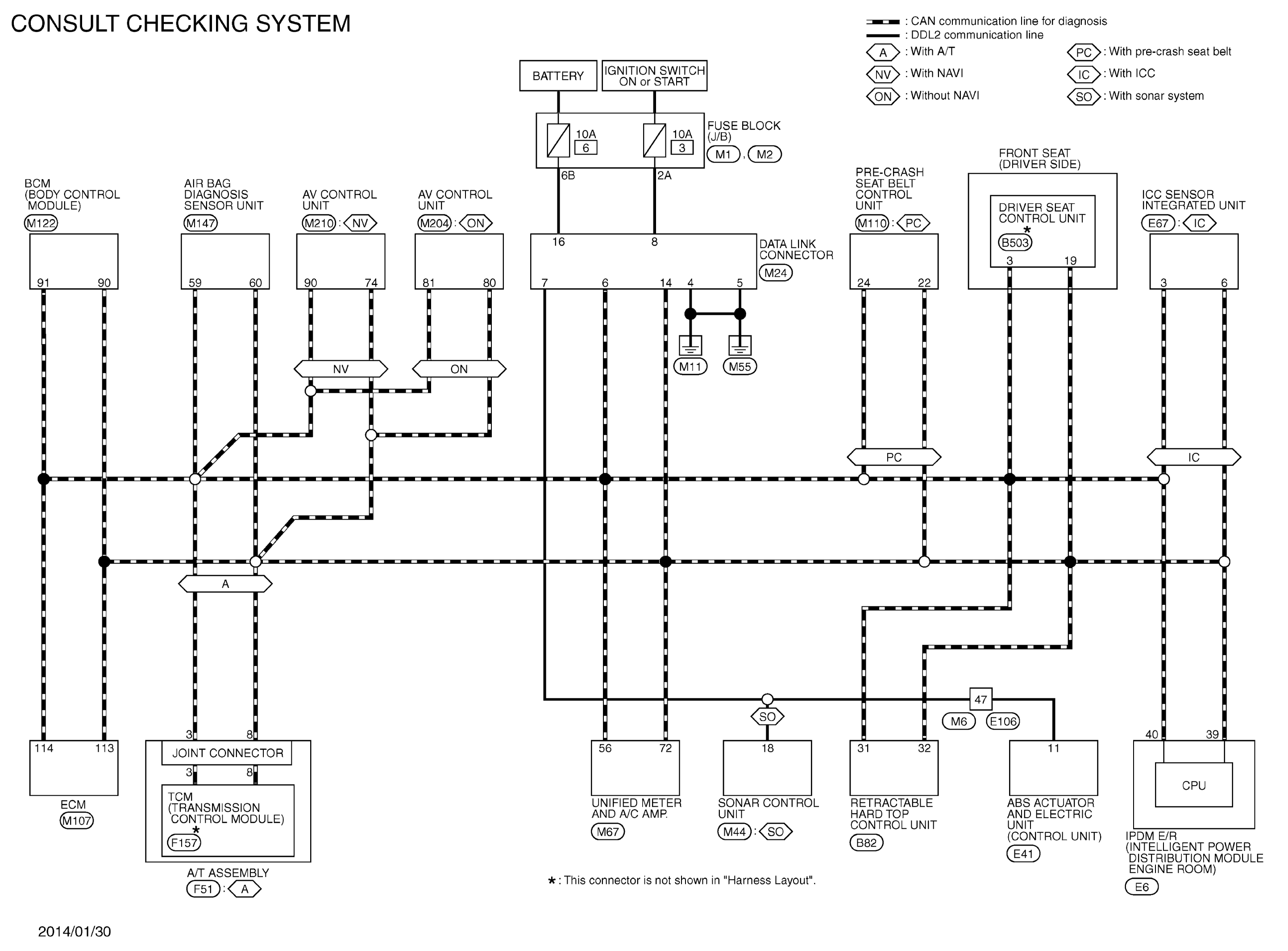

Fig 1: Consult/GST Checking System Wiring Diagram

GNSJRAWC1092GB-092

Courtesy of NISSAN NORTH AMERICA, INC.
