Consult/GST Checking System: Description

When CONSULT/GST is connected with a data link connector (A) equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.

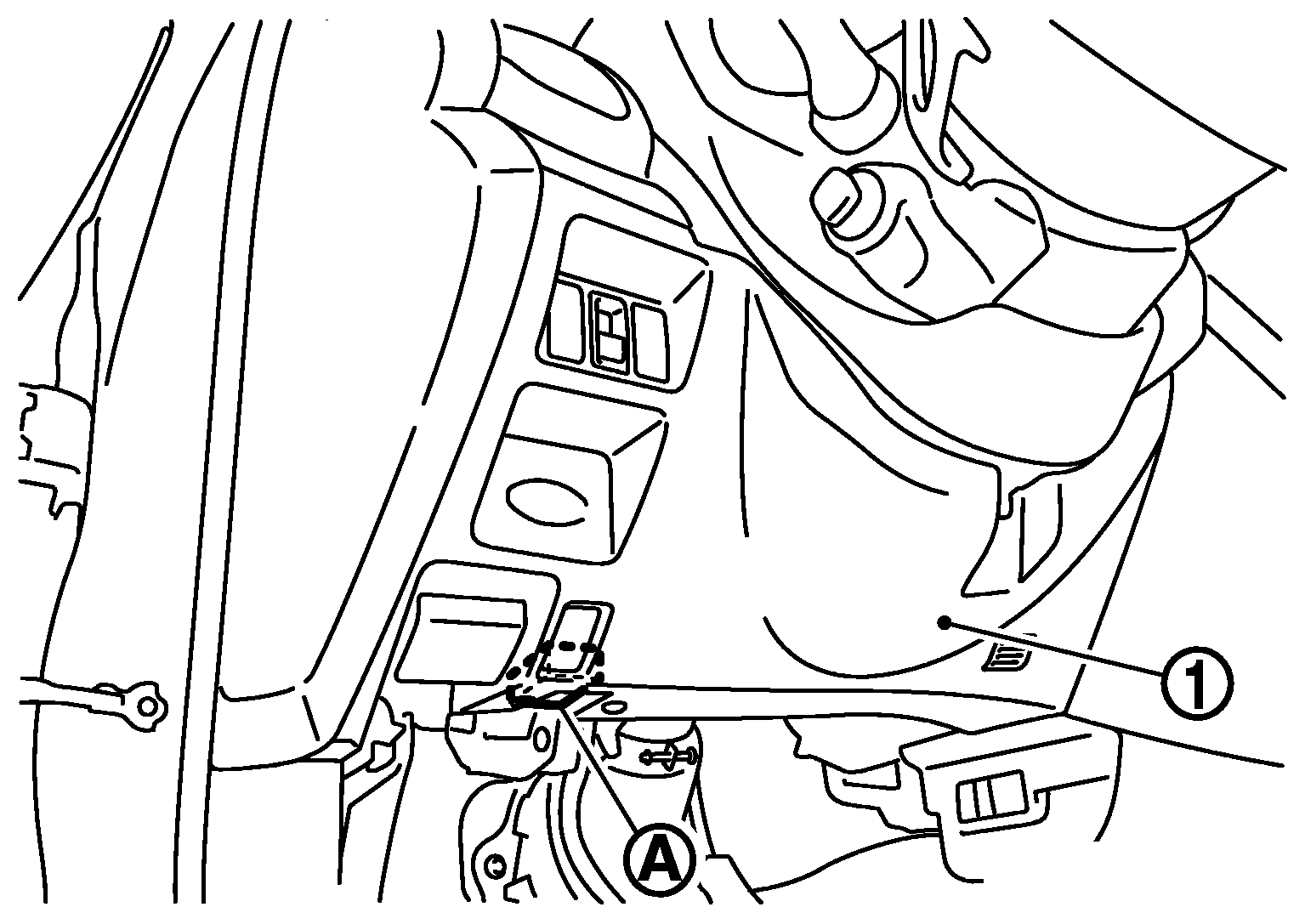

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN NORTH AMERICA, INC.

1 : Instrument lower panel LH
Refer to "CONSULT Software Operation Manual" for more information.
