Q60 Journey
>>
Repair and Diagnosis
>>
Steering
>>
Steering Control Systems
>>
Steering Control System (Coupe)
>>
Ecu Diagnosis Information
>>
Power Steering Control Unit
>>
Electronically Controlled Power Steering System Wiring Diagram
Electronically Controlled Power Steering System Wiring Diagram

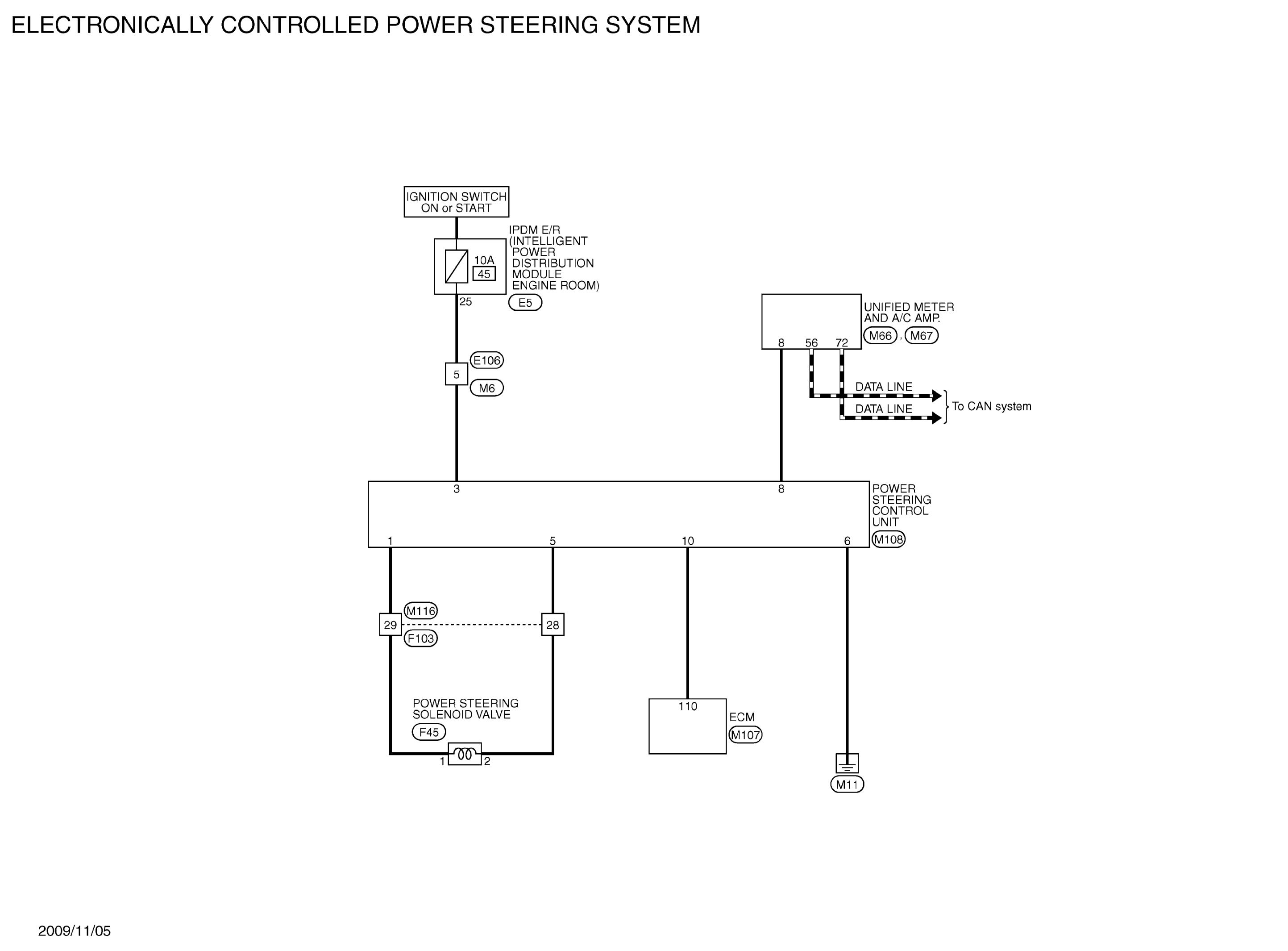

Fig 1: Electronically Controlled Power Steering System Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
