Infiniti
>>
2015
>>
Q60 IPL
>>
Repair and Diagnosis
>>
Steering
>>
Steering Control Systems
>>
Steering Control System (Convertible)
>>
Ecu Diagnosis Information
>>
Power Steering Control Unit
>>
Wiring Diagram - Electronically Controlled Power Steering System -
Wiring Diagram - Electronically Controlled Power Steering System -

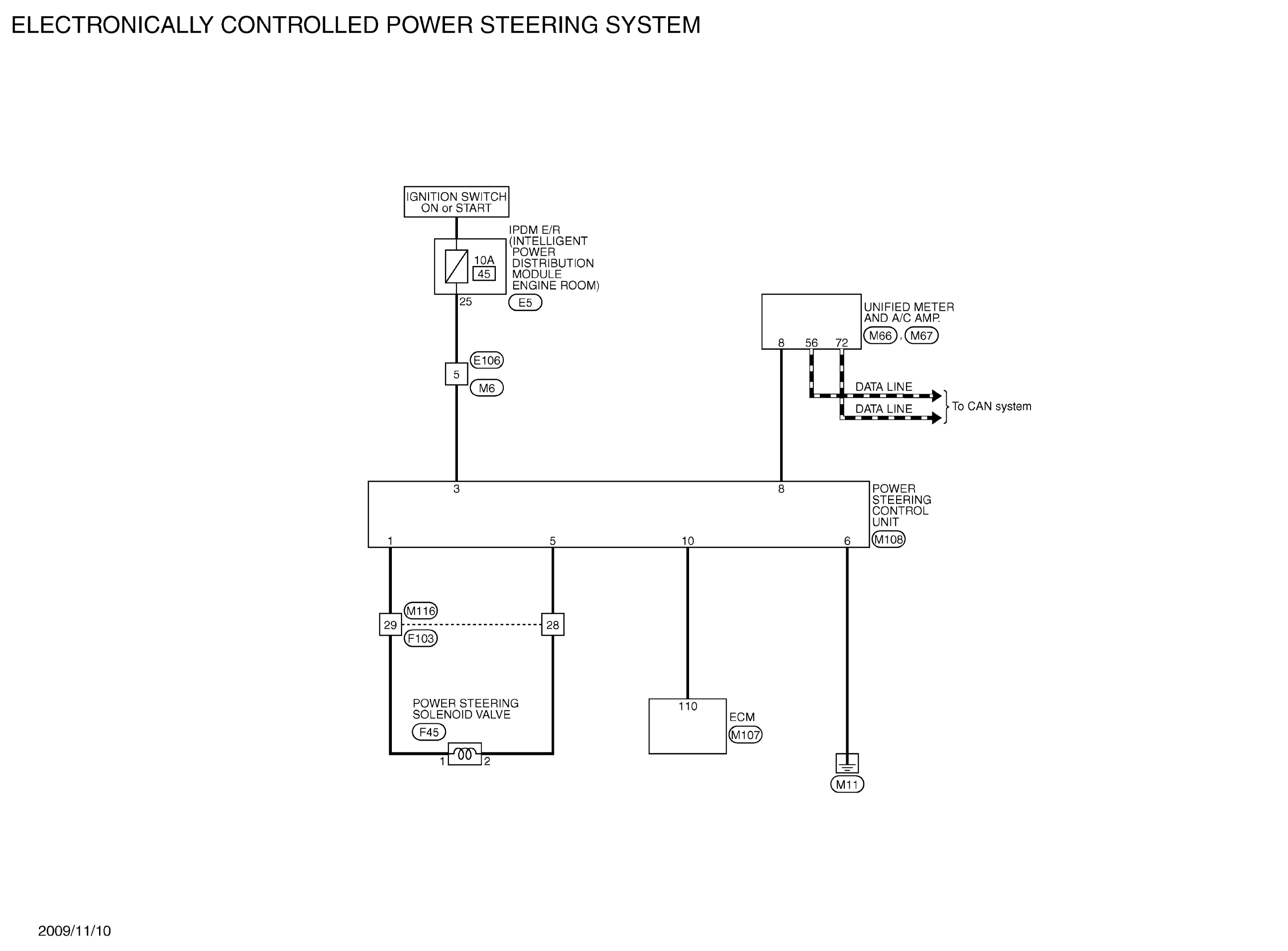

Fig 1: Electronically Controlled Power Steering System Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
