Component Parts Location

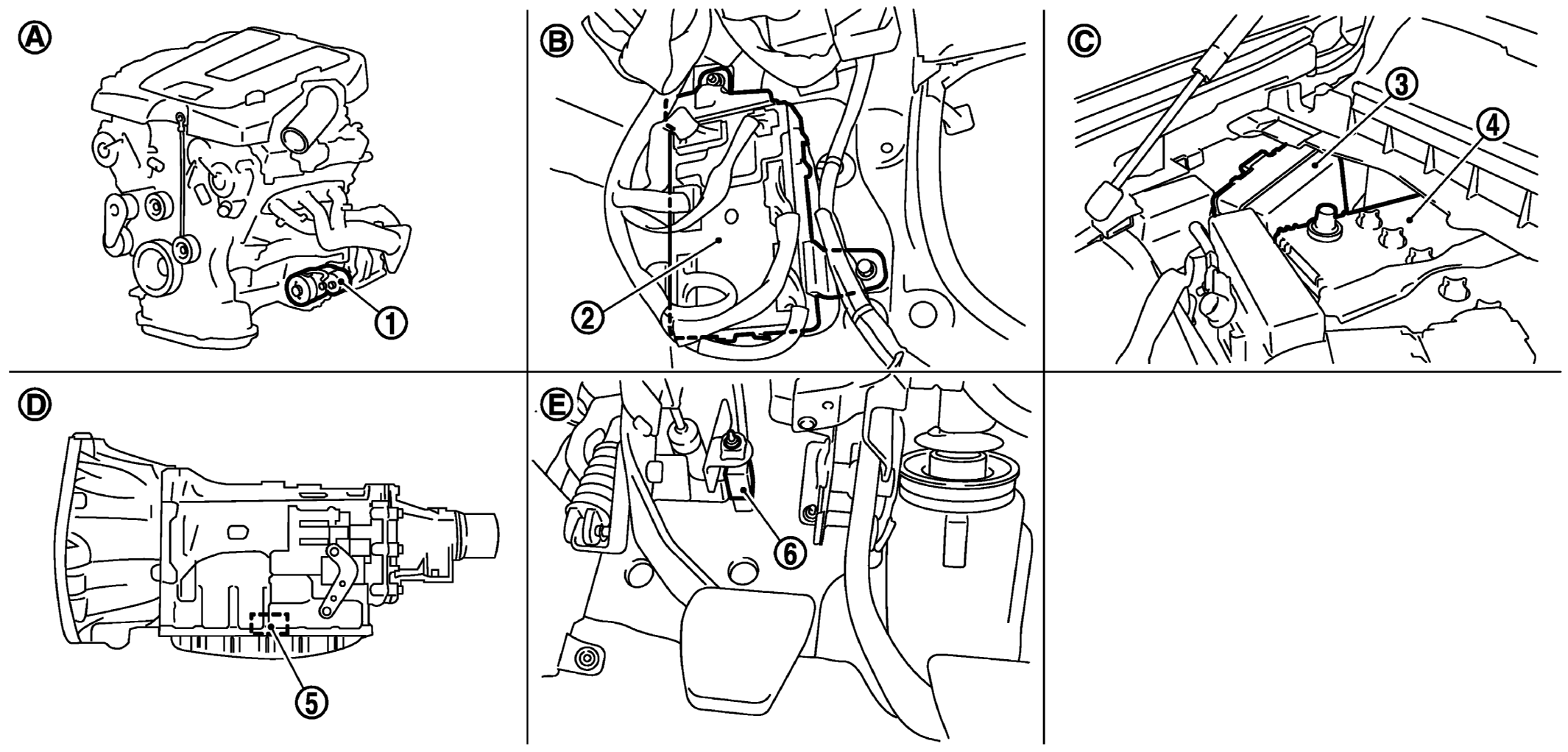

Fig 1: Starting System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Starter motor	2.	BCM	3.	IPDM E/R
4.	Battery	5.	TCM	6.	Clutch interlock switch
A.	Engine	B.	Dash side lower (passenger side)	C.	Engine room dash panel (RH)
D.	Inside of A/T (built into A/T)	E.	Clutch pedal
