Component Parts Location

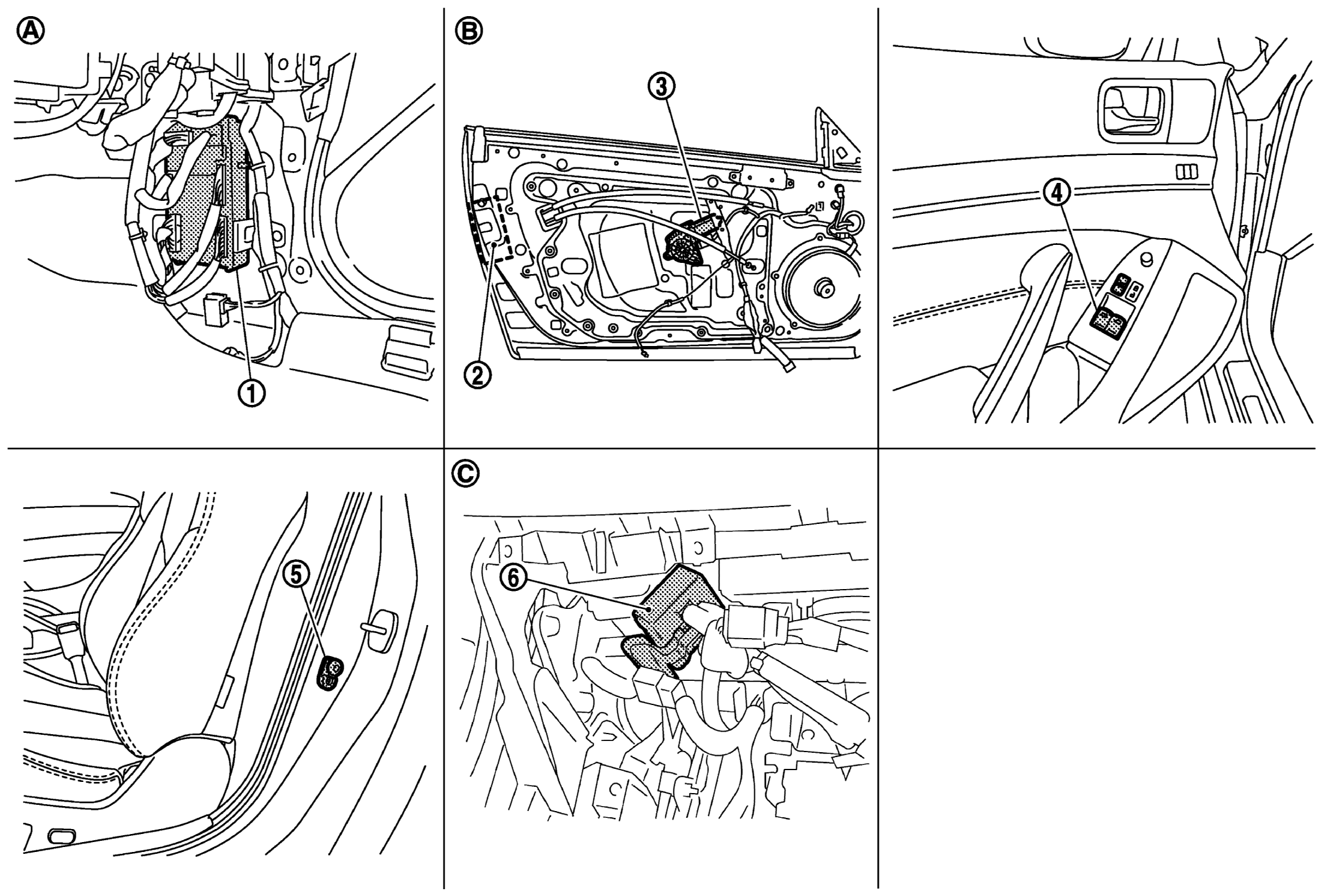

Fig 1: Power Window System Components Location
G08235000Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM M118, M119, M122, M123 2. Driver side door lock assembly (door key cylinder switch) D15 3. Driver side power window motor D10
4. Power window main switch D8 5. Driver side door switch B16 6. Remote keyless entry receiver
A. View with dash side lower (passenger side) B. View with door finisher removed C. View with instrument lower panel (passenger side) removed
