Exploded View With Torque Specifications

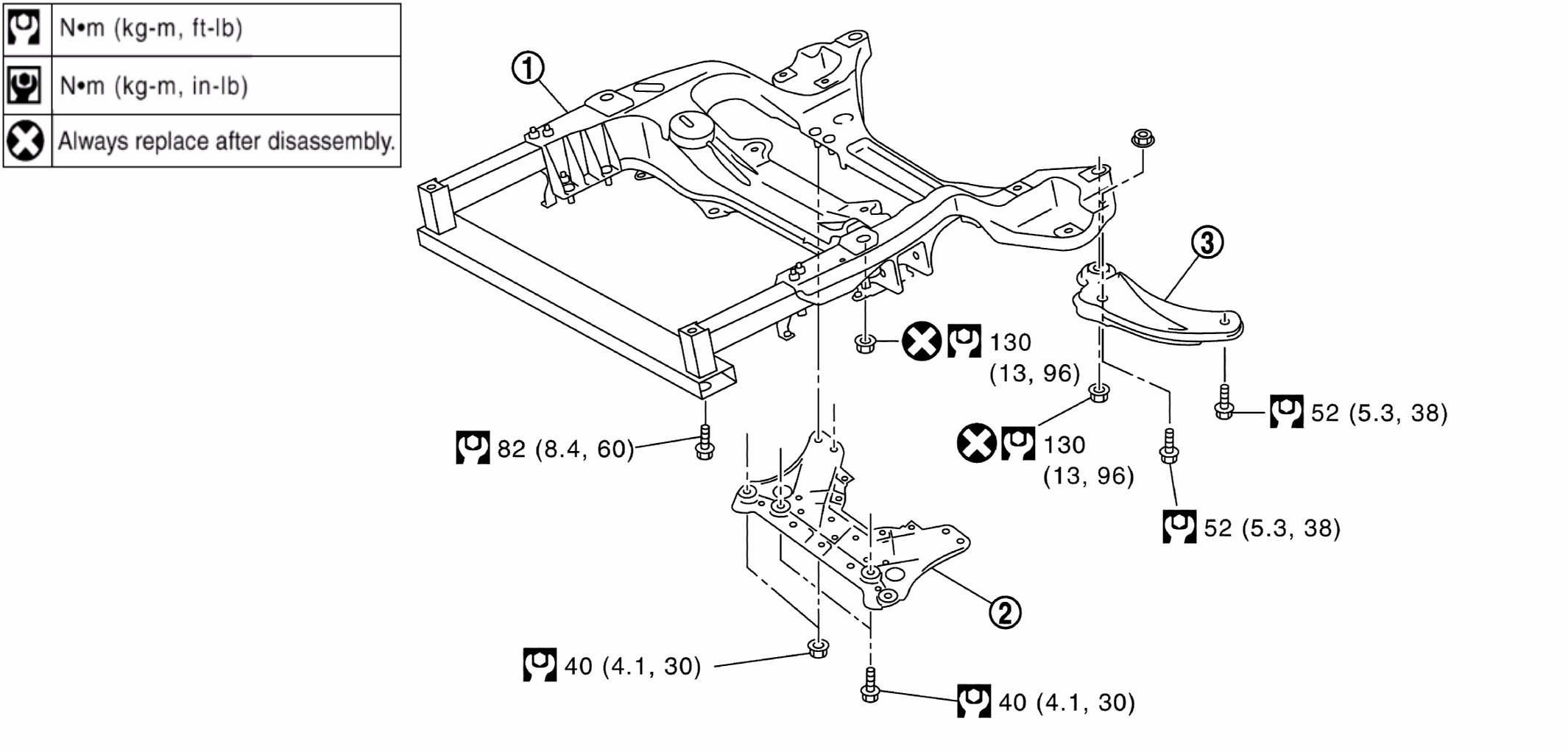

Fig 1: Exploded View Of Front Suspension Member With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front suspension member	2.	Suspension member stay	3.	Suspension member sub stay
Refer to COMPONENTS for symbols in the figure.
