Exploded View With Torque Specifications

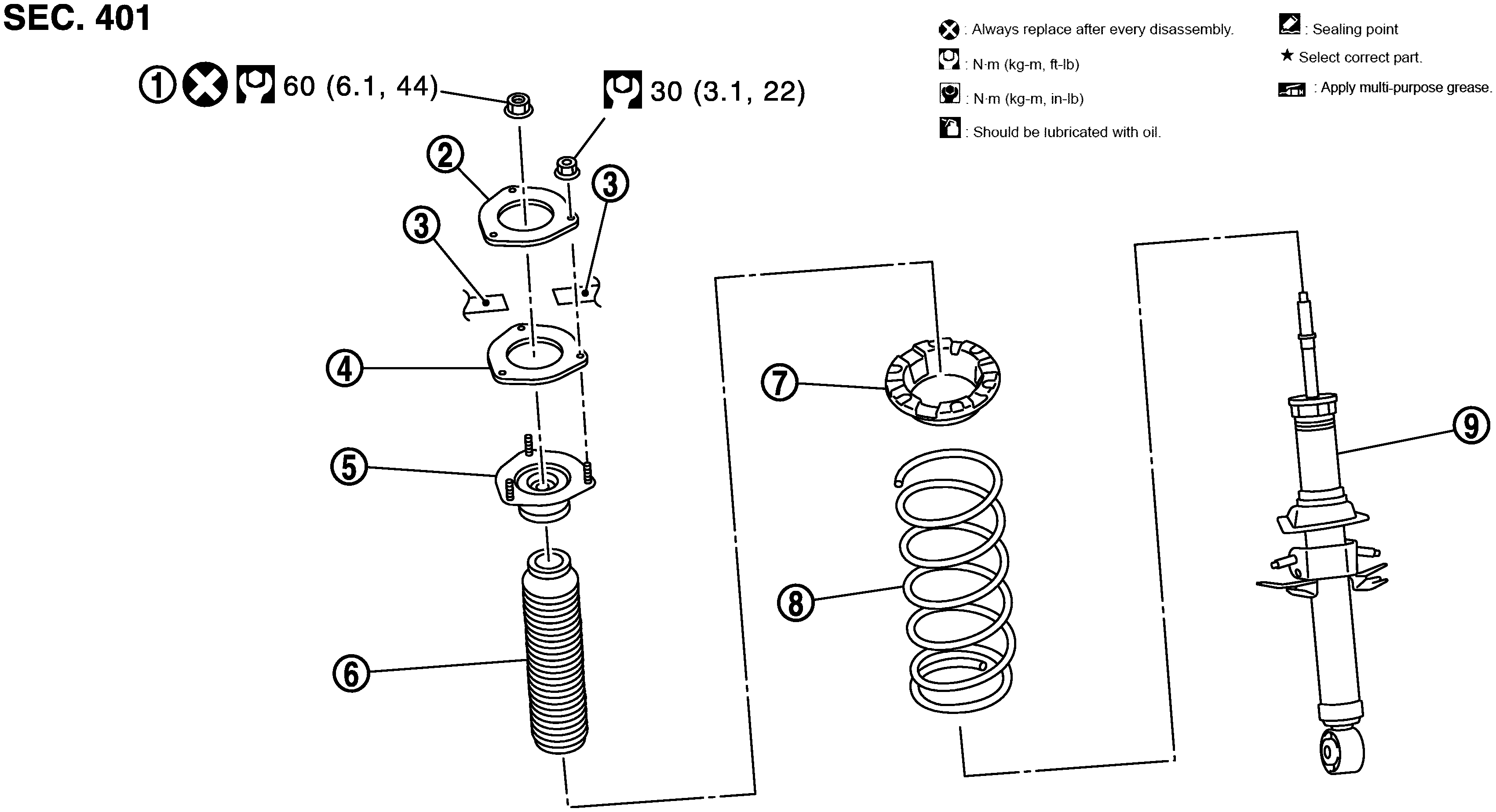

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Piston rod lock nut	2.	Gusset	3.	Vehicle body
4.	Mounting seal	5.	Shock absorber mounting bracket	6.	Bound bumper
7.	Rubber seat	8.	Coil spring	9.	Shock absorber
Refer to COMPONENTS for symbols in the figure.
