Flywheel Deflection (M/T Models)

Measure the deflection of flywheel contact surface to clutch with a dial indicator (A).

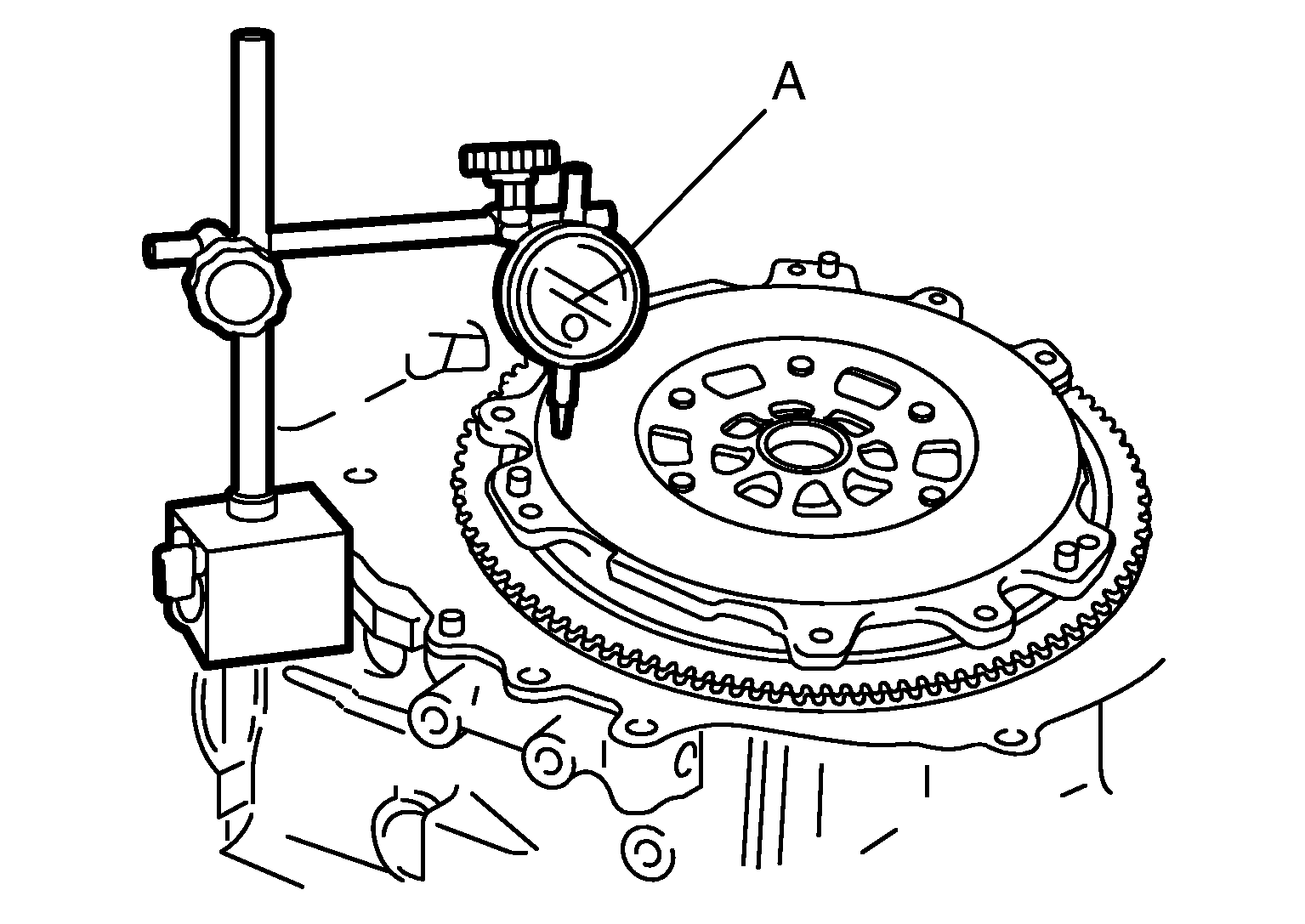

Fig 1: Measuring Deflection Of Flywheel Contact Surface To Clutch Using Dial Indicator
Courtesy of NISSAN NORTH AMERICA, INC.
Measure the deflection at 210 mm (8.27 in) dia.

Standard : 0.45 mm (0.0177 in) or less.
If measured value is out of the standard, replace flywheel.
