Exploded View With Torque Specifications

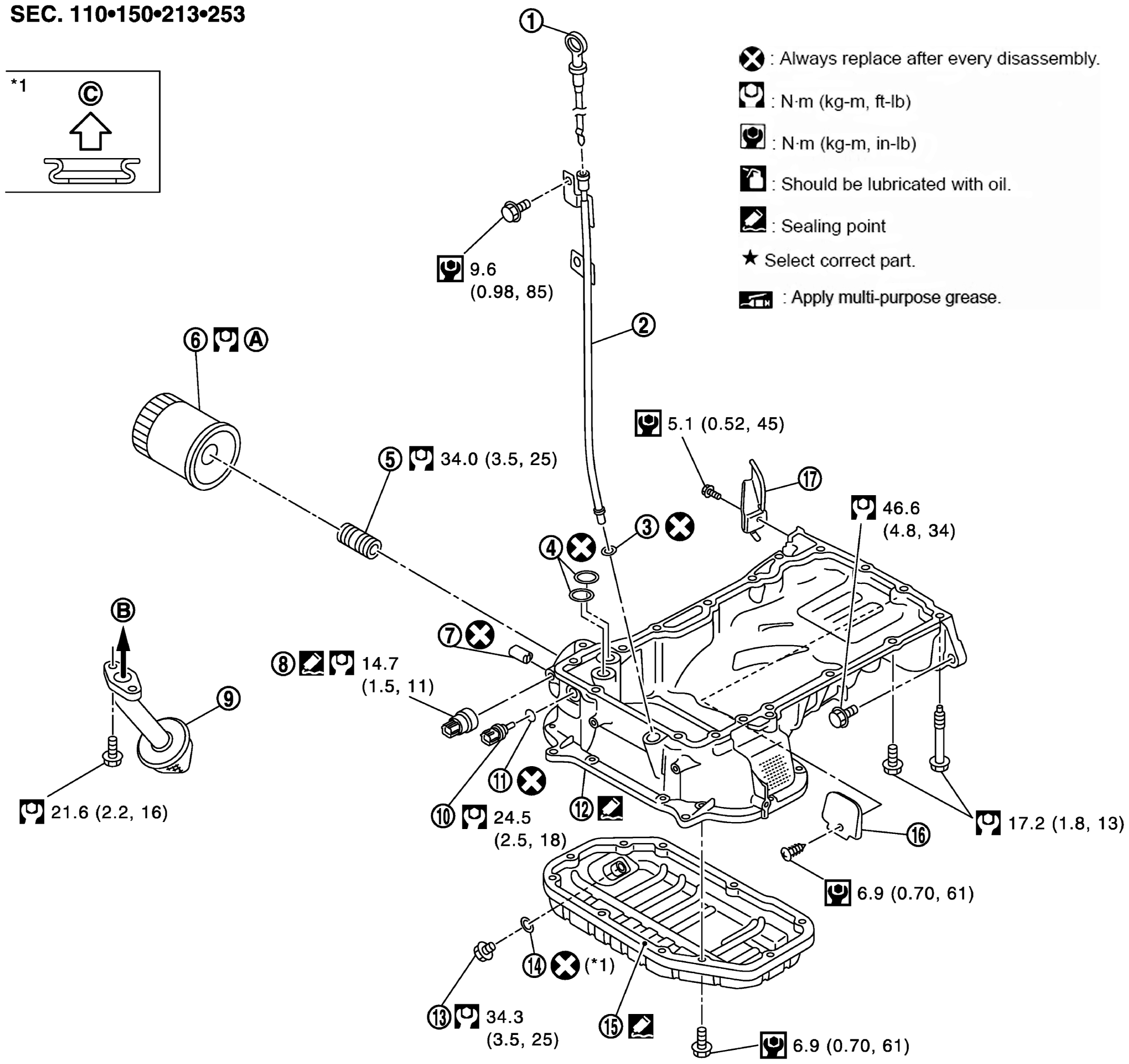

Fig 1: Exploded View Of Oil Pan (Upper) And Oil Strainer With Torque Specifications (2WD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil level gauge	2.	Oil level gauge guide	3.	O-ring
4.	O - ring	5.	Connector bolt	6.	Oil filter
7.	Relief valve	8.	Oil pressure switch	9.	Oil strainer
10.	Oil temperature sensor	11.	Washer	12.	Oil pan (upper)
13.	Drain plug	14.	Drain plug washer	15.	Oil pan (lower)
16.	Rear plate cover	17.	Rear cover plate (M/T models)
A.	Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION	B.	To oil pump	C.	Oil pan side
Refer to COMPONENTS for symbols in the figure.
