Exploded View With Torque Specifications

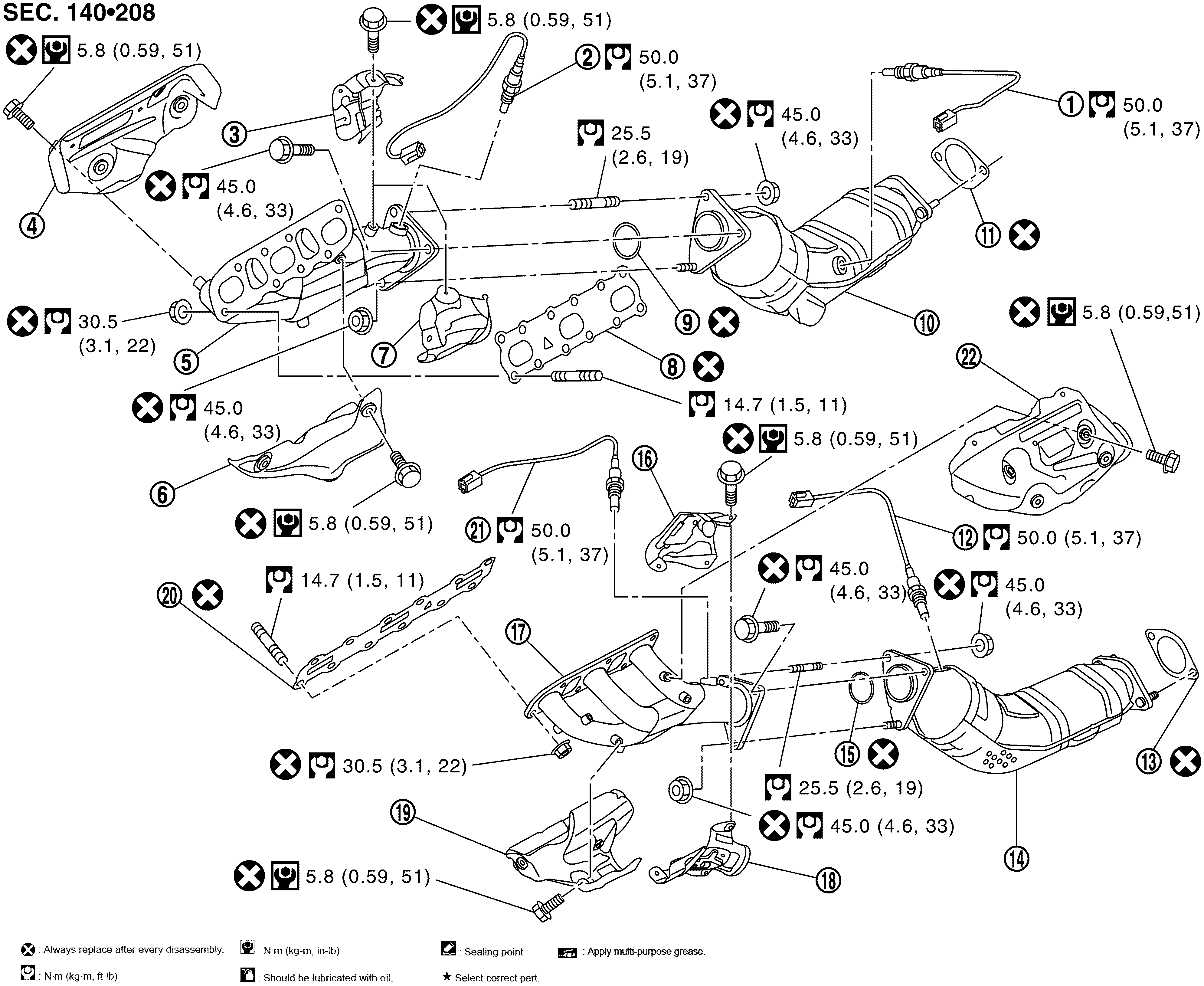

Fig 1: Exploded View Of Exhaust Manifold With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Heated oxygen sensor 2 (bank 1)	2.	Air fuel ratio sensor 1 (bank 1)	3.	Exhaust manifold cover (upper rear) (bank 1)
4.	Exhaust manifold cover (upper) (bank 1)	5.	Exhaust manifold (bank 1)	6.	Exhaust manifold cover (lower) (bank 1)
7.	Exhaust manifold cover (lower rear) (bank 1)	8.	Gasket	9.	Ring gasket
10.	Three way catalyst (bank 1)	11.	Gasket	12.	Heated oxygen sensor 2 (bank 2)
13.	Gasket	14.	Three way catalyst (bank 2)	15.	Ring gasket
16.	Exhaust manifold cover (upper rear) (bank 2)	17.	Exhaust manifold (bank 2)	18.	Exhaust manifold cover (lower rear) (bank 2)
19.	Exhaust manifold cover (lower) (bank 2)	20.	Gasket	21.	Air fuel ratio sensor 1 (bank 2)
22.	Exhaust manifold cover (upper) (bank 2)
Refer to COMPONENTS for symbols in the figure.
