Wiring Diagram - Power Window Control System -

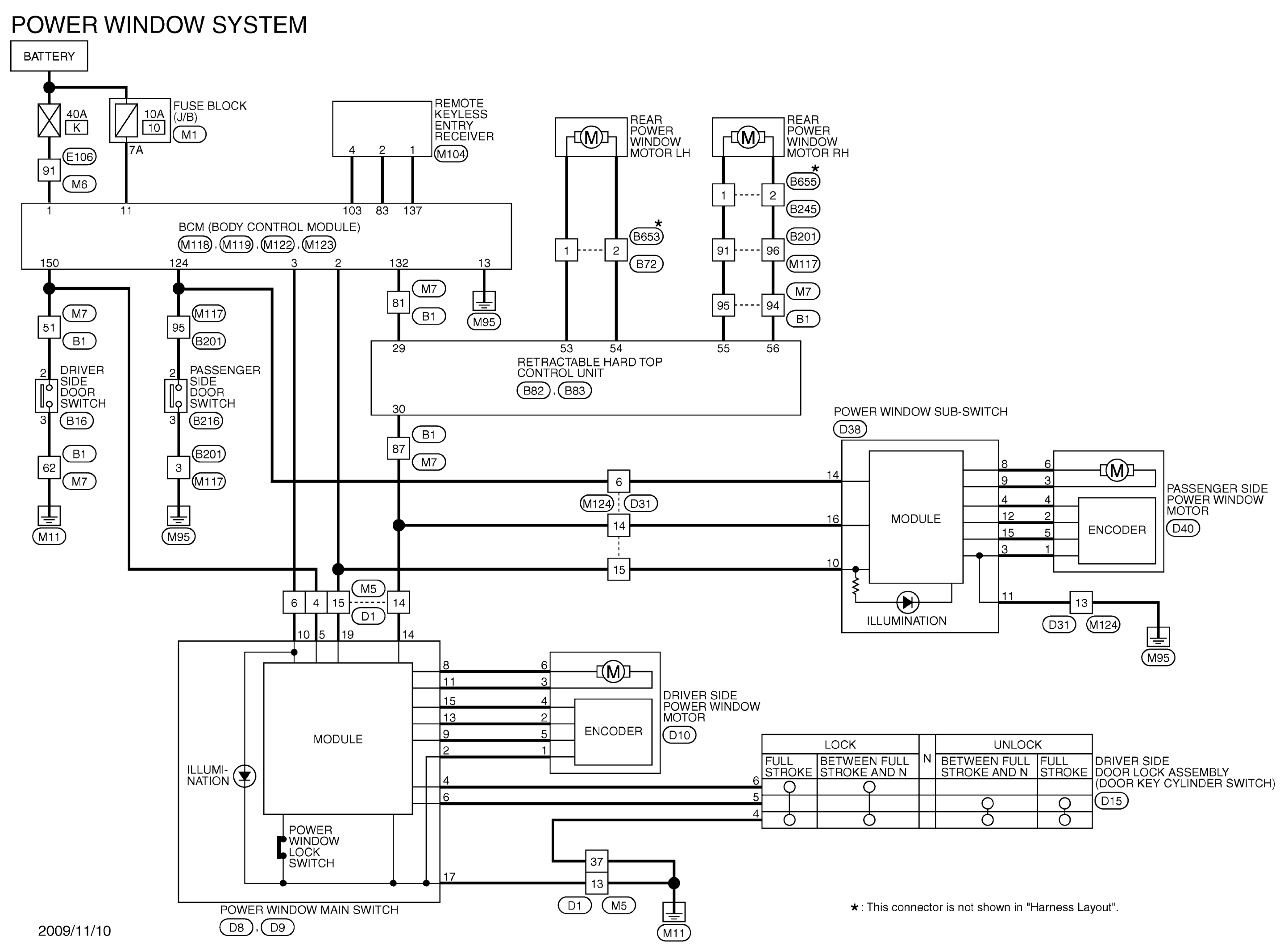

Fig 1: Power Window Control System Wiring Diagram

G06623609

Courtesy of NISSAN NORTH AMERICA, INC.
