Wiring Diagram - BCM -

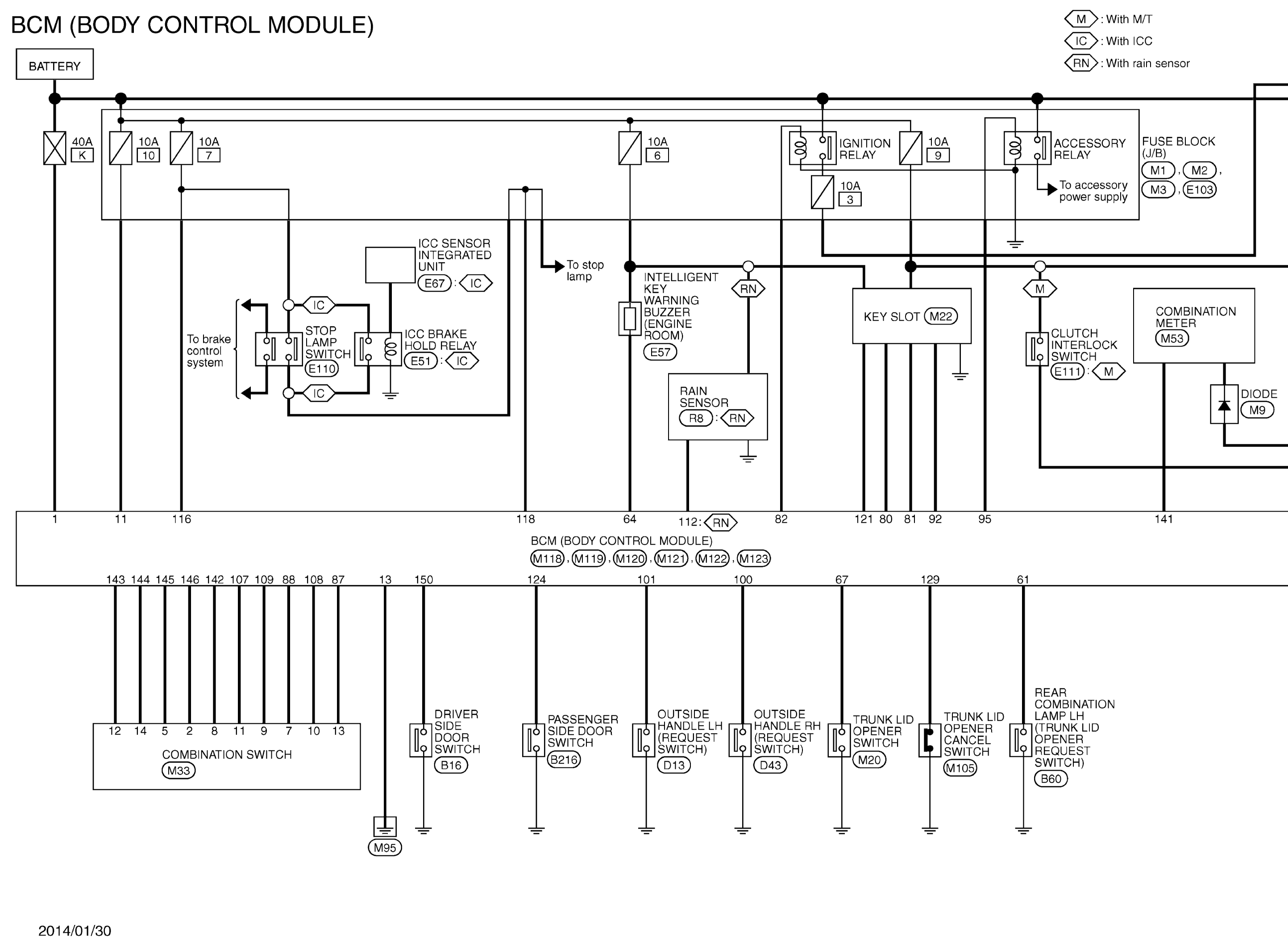

Fig 1: BCM Wiring Diagram (1 Of 4)

GNSJRMWF1739GB-739

Courtesy of NISSAN NORTH AMERICA, INC.

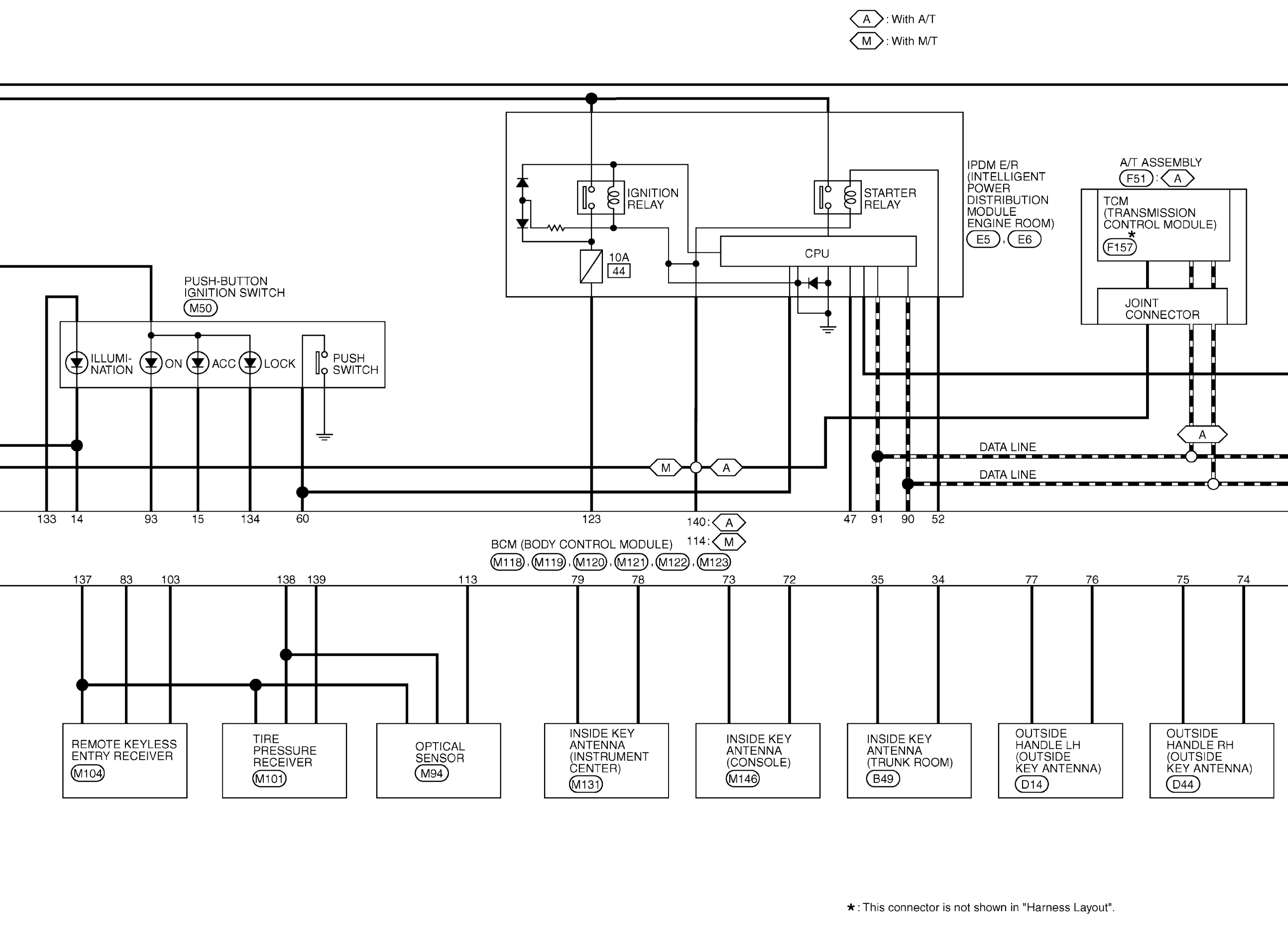

Fig 2: BCM Wiring Diagram (2 Of 4)

GNSJRMWF1740GB-740

Courtesy of NISSAN NORTH AMERICA, INC.

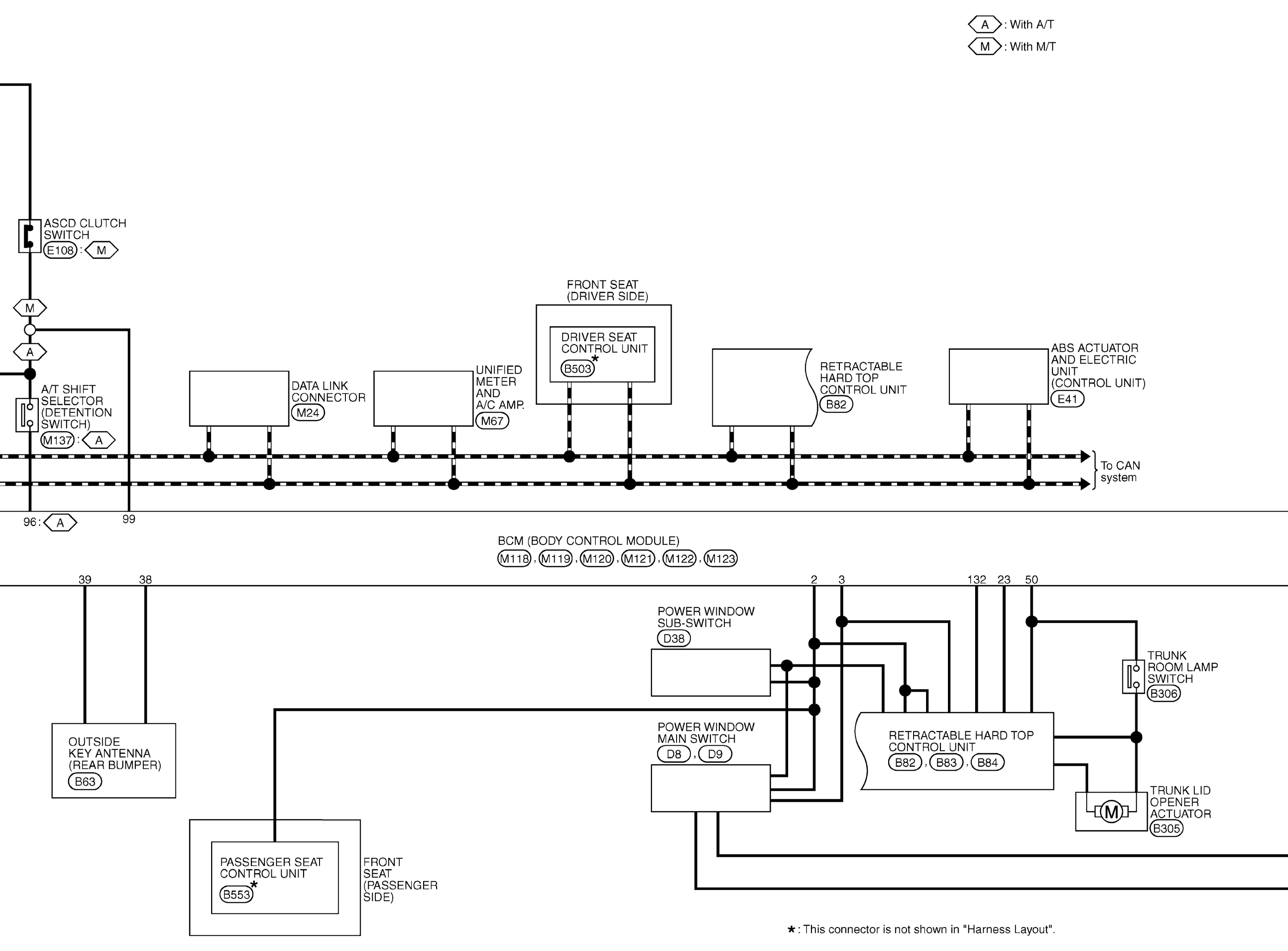

Fig 3: BCM Wiring Diagram (3 Of 4)

GNSJRMWF1741GB-741

Courtesy of NISSAN NORTH AMERICA, INC.

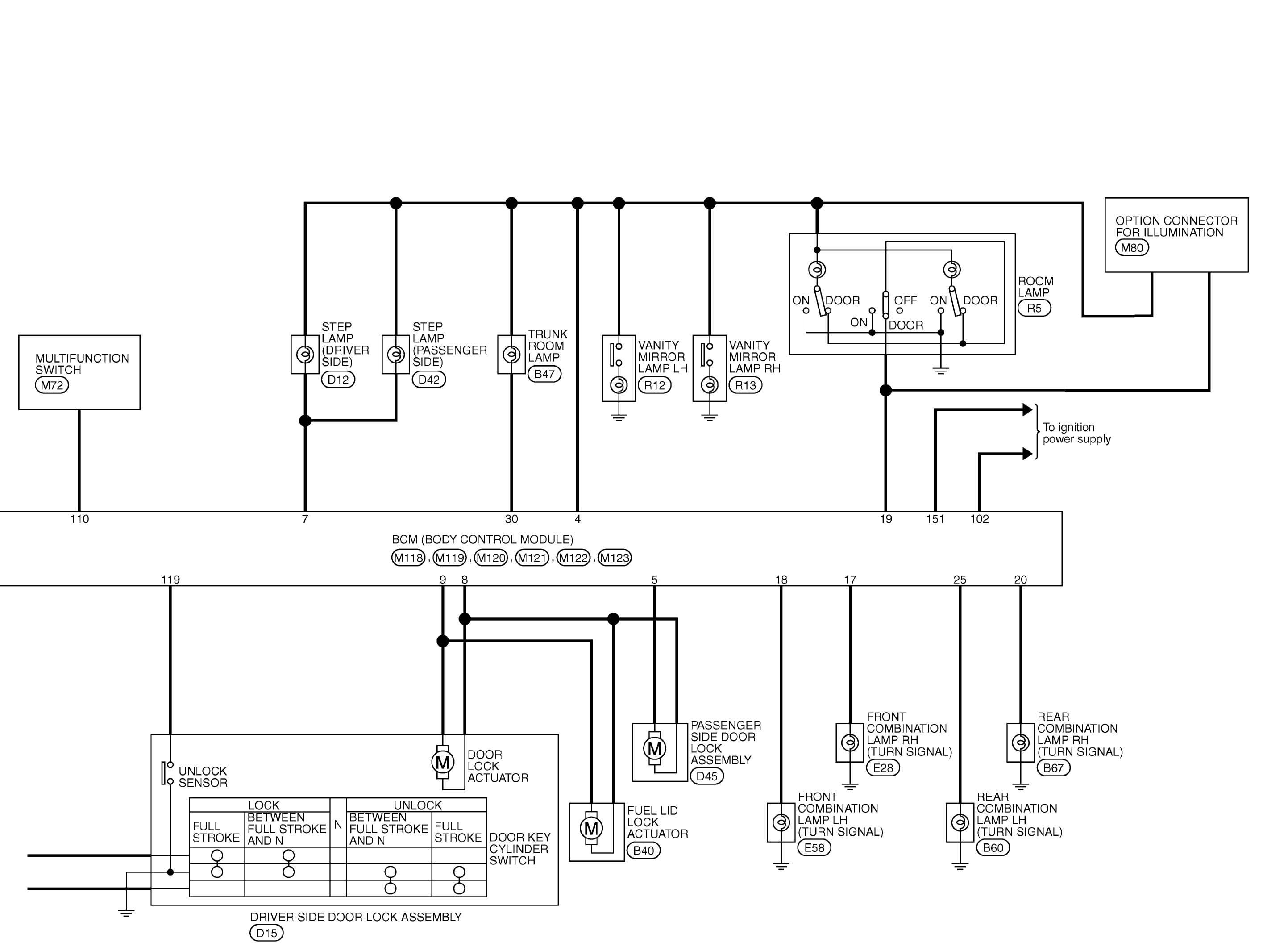

Fig 4: BCM Wiring Diagram (4 Of 4)

GNSJRMWF1742GB-742

Courtesy of NISSAN NORTH AMERICA, INC.
