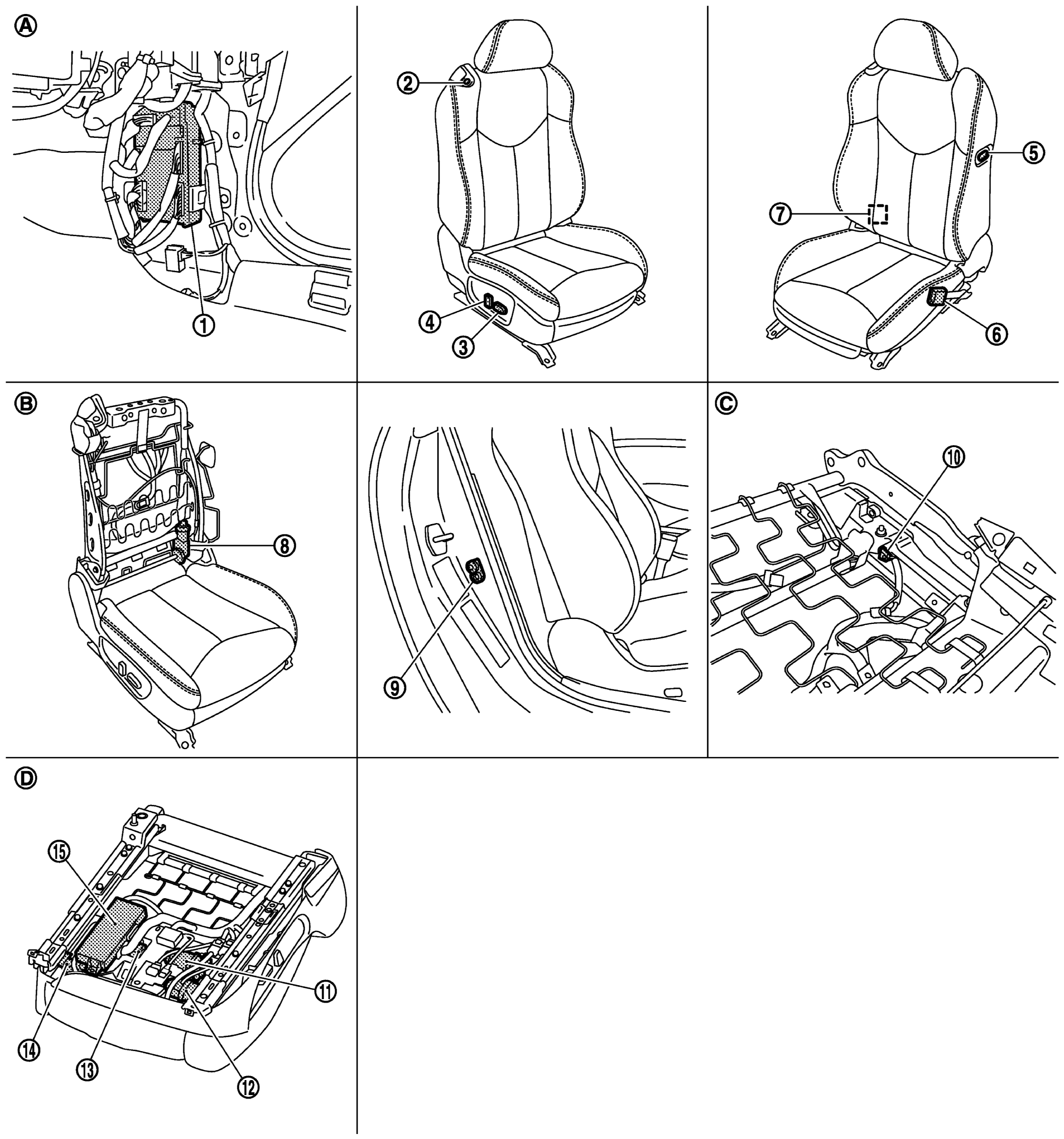

| 1. |
BCM |
2. |
Power walk-in switch |
3. |
Sliding, lifting switch (power seat switch) |
| 4. |
Reclining switch (power seat switch) |
5. |
Sliding switch (seatback) |
6. |
Seat belt buckle switch (passenger side) |
| 7. |
Forward switch |
8. |
Reclining motor |
9. |
Passenger side door switch |
| 10. |
Sliding limit switch |
11. |
Lifting motor (rear) |
12. |
Sliding motor |
| 13. |
Lifting motor (front) |
14. |
Sliding sensor |
15. |
Passenger seat control unit |
| A. |
Dash side lower (passenger side) |
B. |
View with seatback pad removed |
C. |
View with seatback pad removed |
| D. |
Back side of seat cushion |
|
|
|
|
