Power Steering Control System Connectors

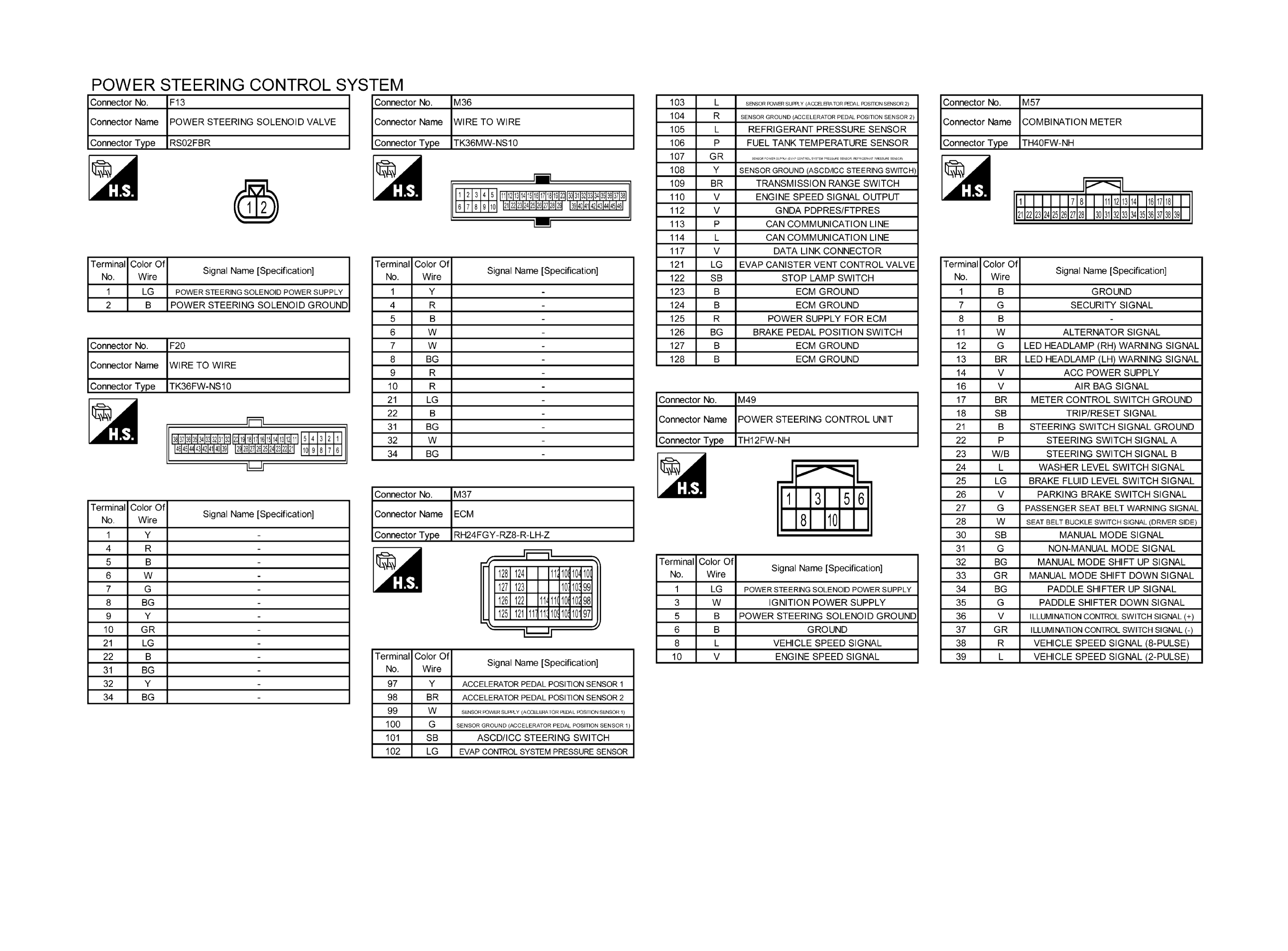

Fig 1: Power Steering Control System Connectors (1 Of 2)
GNSJRGWC1677GB-677Courtesy of NISSAN NORTH AMERICA, INC.

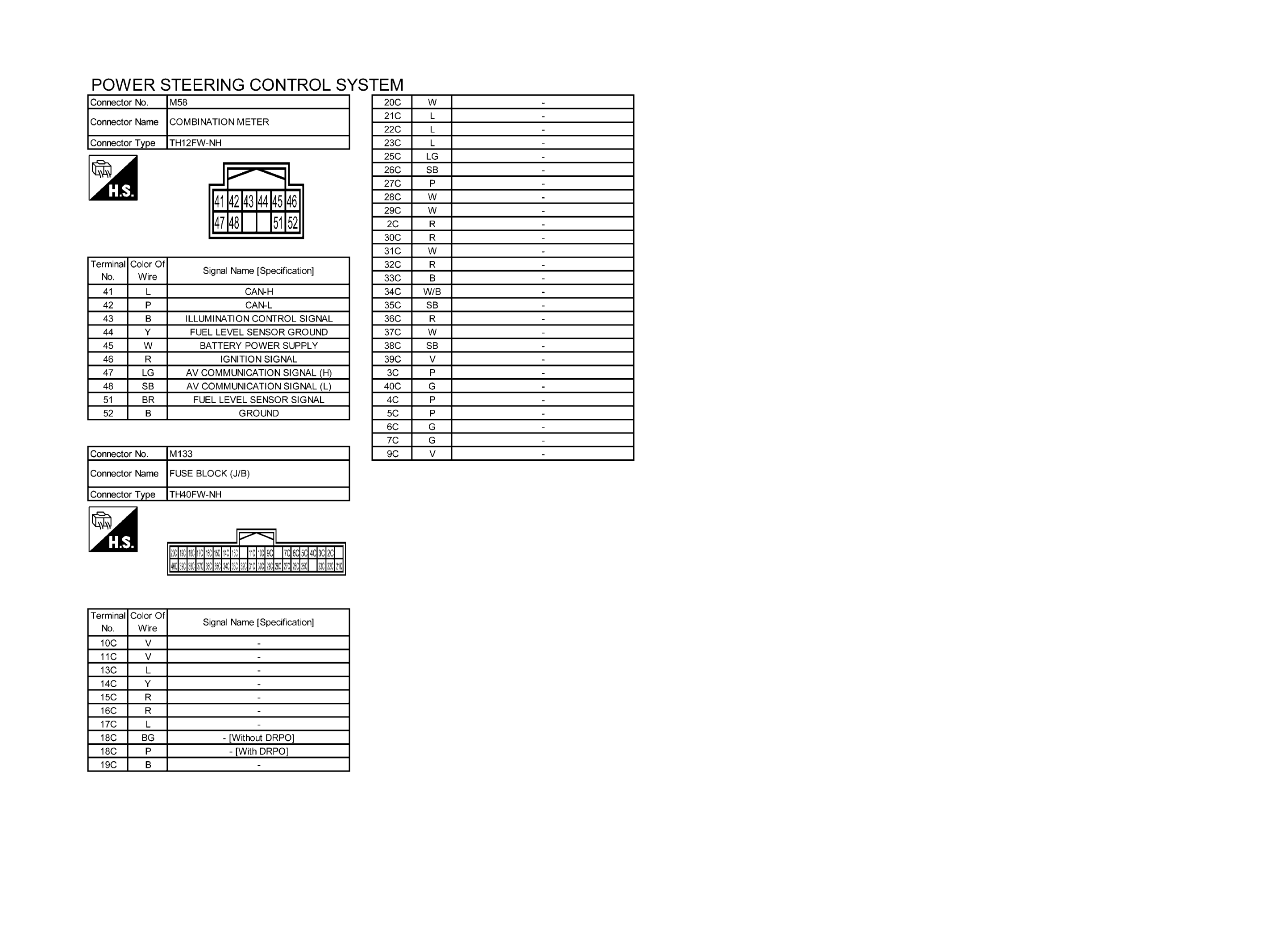

Fig 2: Power Steering Control System Connectors (1 Of 2)
GNSJRGWC1678GB-678Courtesy of NISSAN NORTH AMERICA, INC.
