Direct Adaptive Steering: Wiring Diagram

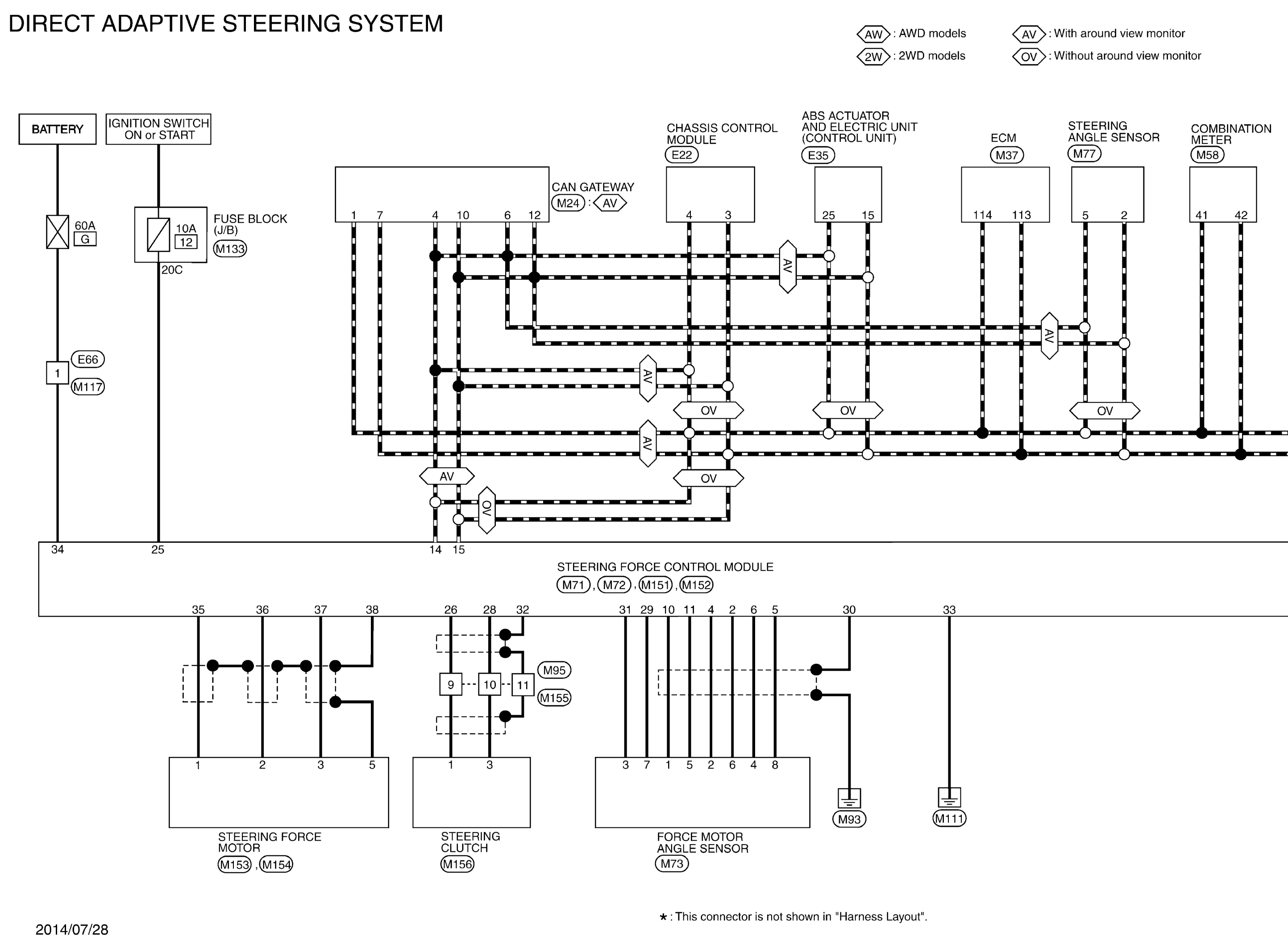

Fig 1: Direct Adaptive Steering Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

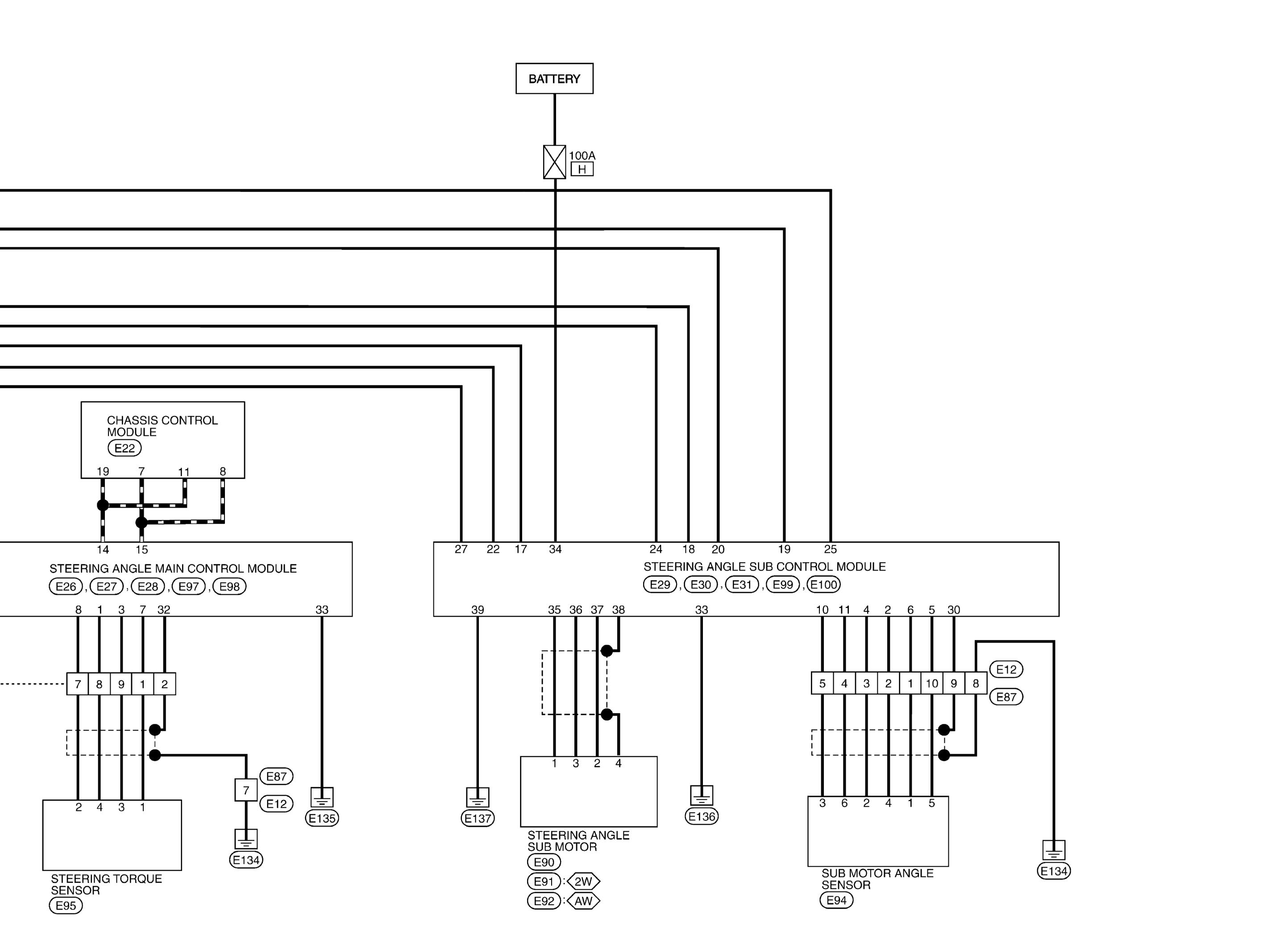

Fig 2: Direct Adaptive Steering Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Direct Adaptive Steering Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
