Exploded View With Torque Specifications

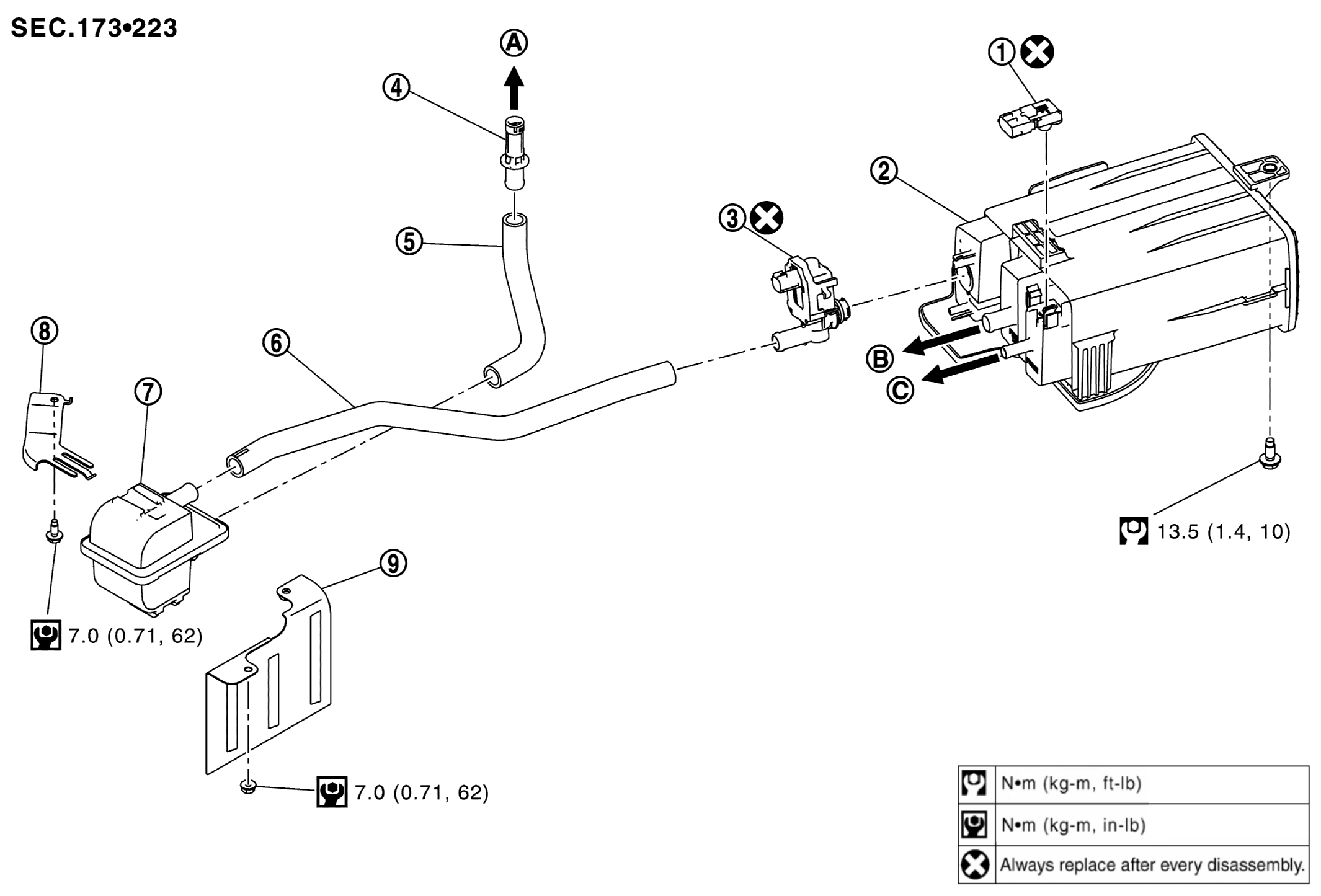

Fig 1: Exploded View Of EVAP Canister With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	EVAP control system pressure sensor		EVAP canister		EVAP canister vent control valve
	Connector		Vent hose		Vent hose
	Canister filter		Bracket		Insulator
	To floor panel		To fuel tank		To EVAP canister purge volume control solenoid valve
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
	: Always replace after every disassembly.
