VDC Off Switch

This is an integrated switch with switches for other functions.
Non-operational status or standby status of the following functions can be selected using VDC OFF switch. VDC OFF indicator lamp indicates the operation status of function. (ON: Non-operational status, OFF: Standby status)

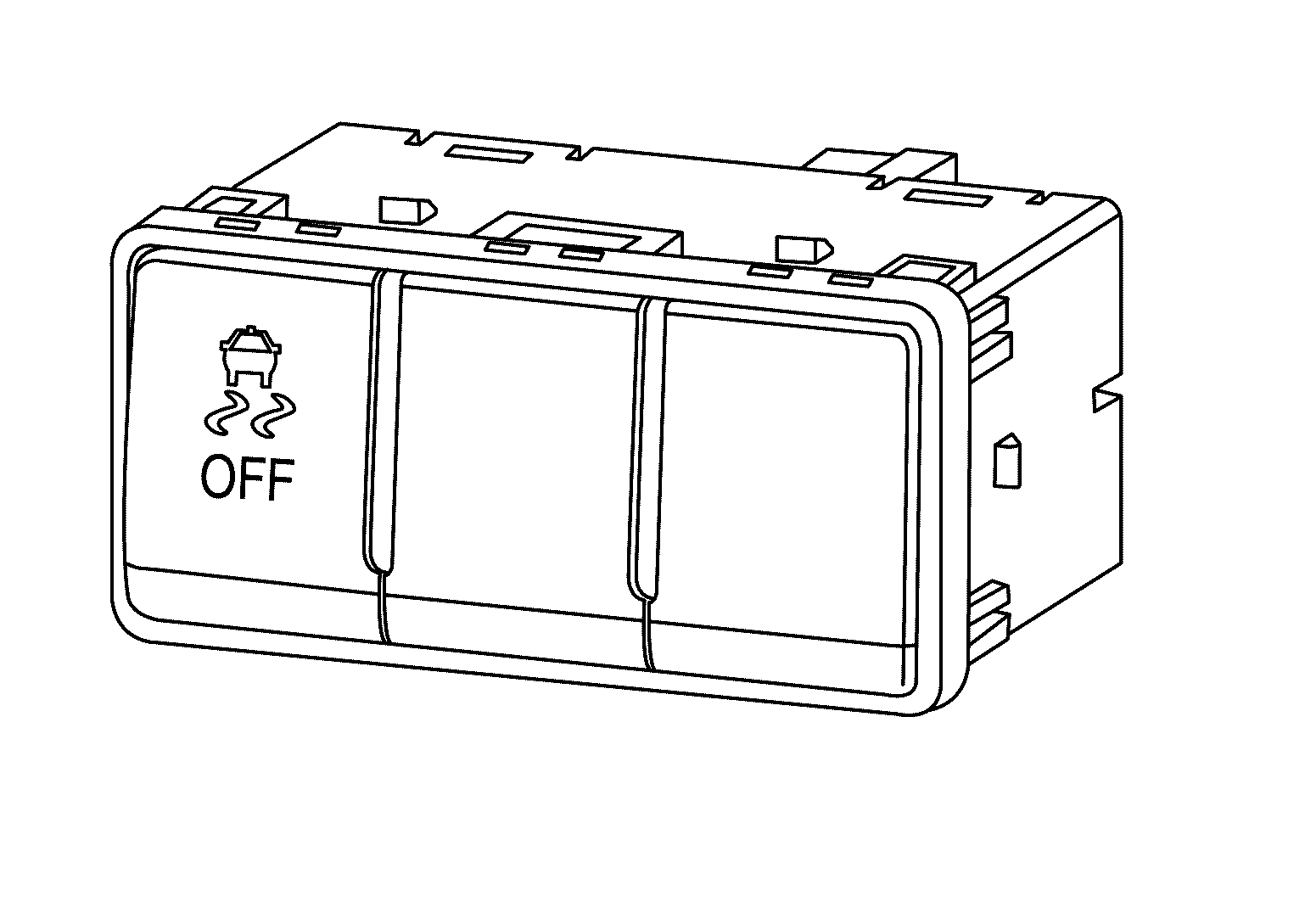

Fig 1: Identifying VDC Off Switch
Courtesy of NISSAN NORTH AMERICA, INC.
- VDC function
- TCS function
- Active trace control function

NOTE:

ABS function, EBD function and Brake limited slip differential (BLSD) function control operates.

VDC OFF indicator lamp turns OFF (standby status) when the engine is started again after it is stopped once while VDC OFF indicator lamp is ON (non-operational status).
