Circuit Diagram

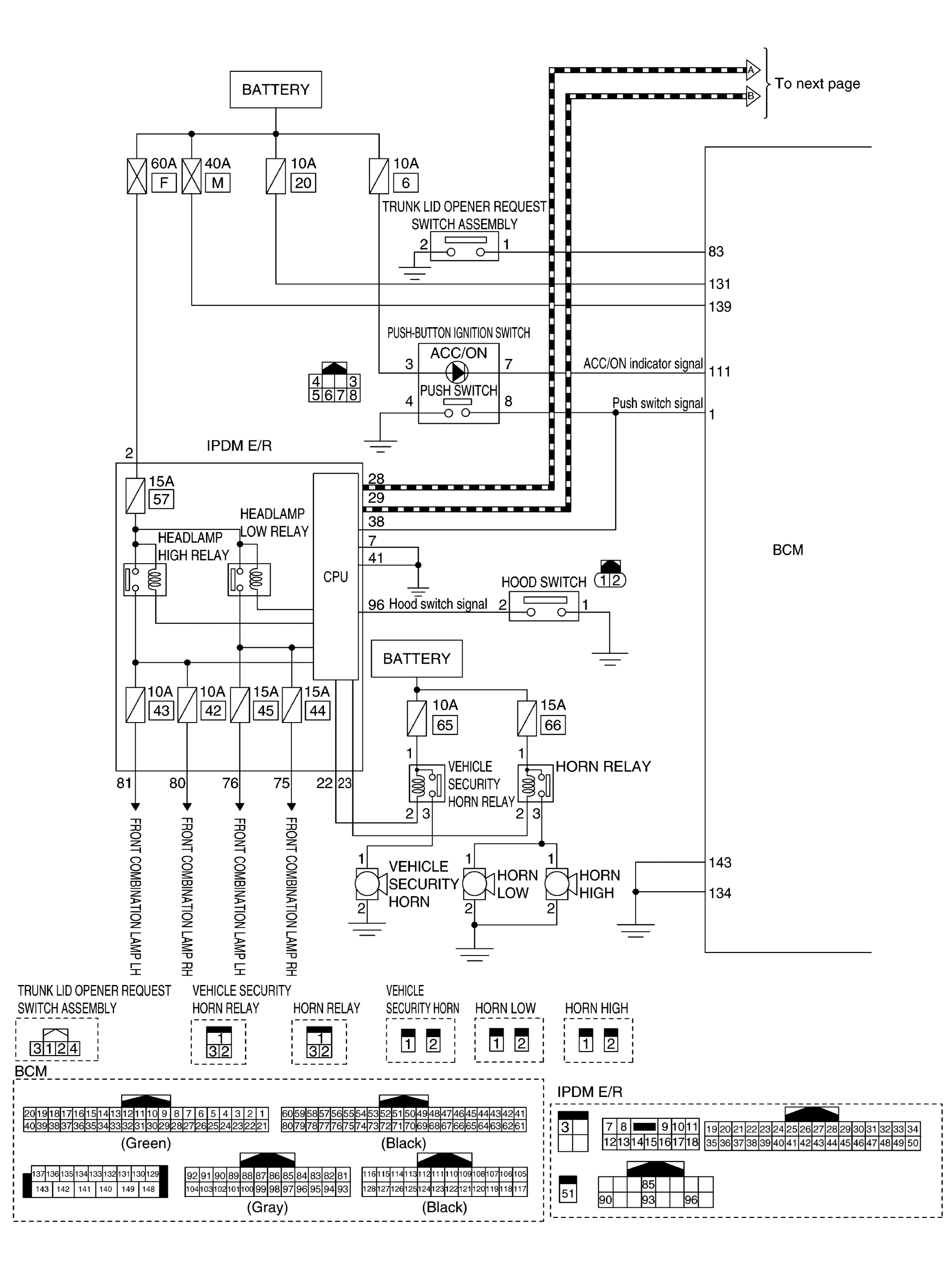

Fig 1: Vehicle Security System Circuit Diagram With Connectors (1 Of 2)
G09159532Courtesy of NISSAN NORTH AMERICA, INC.

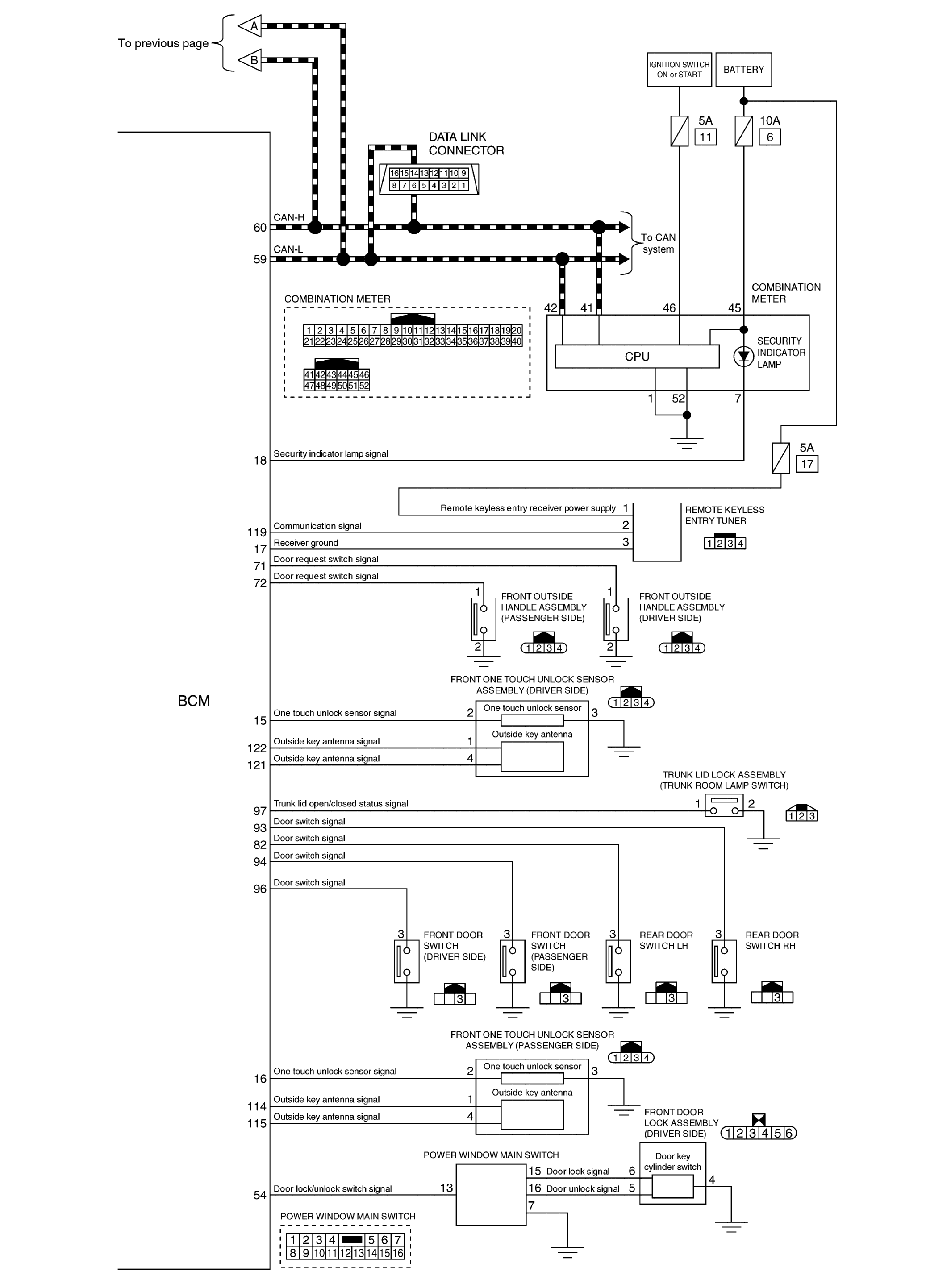

Fig 2: Vehicle Security System Circuit Diagram With Connectors (2 Of 2)
G09159533Courtesy of NISSAN NORTH AMERICA, INC.
