Circuit Diagram

Fig 1: Intelligent Key System/Engine Start Function Circuit Diagram With Connectors (1 Of 2)
G09159525Courtesy of NISSAN NORTH AMERICA, INC.

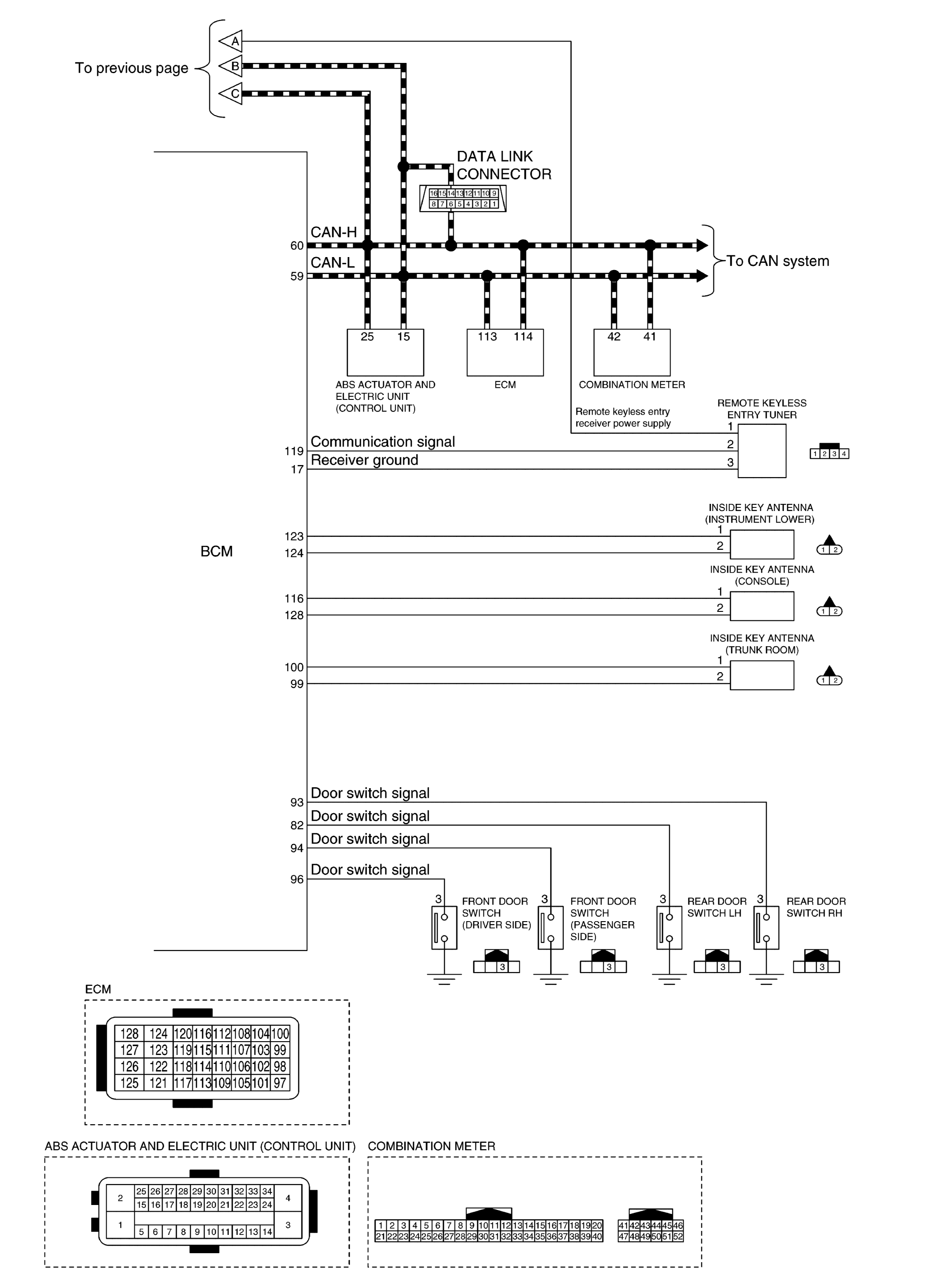

Fig 2: Intelligent Key System/Engine Start Function Circuit Diagram With Connectors (2 Of 2)
G09159526Courtesy of NISSAN NORTH AMERICA, INC.
