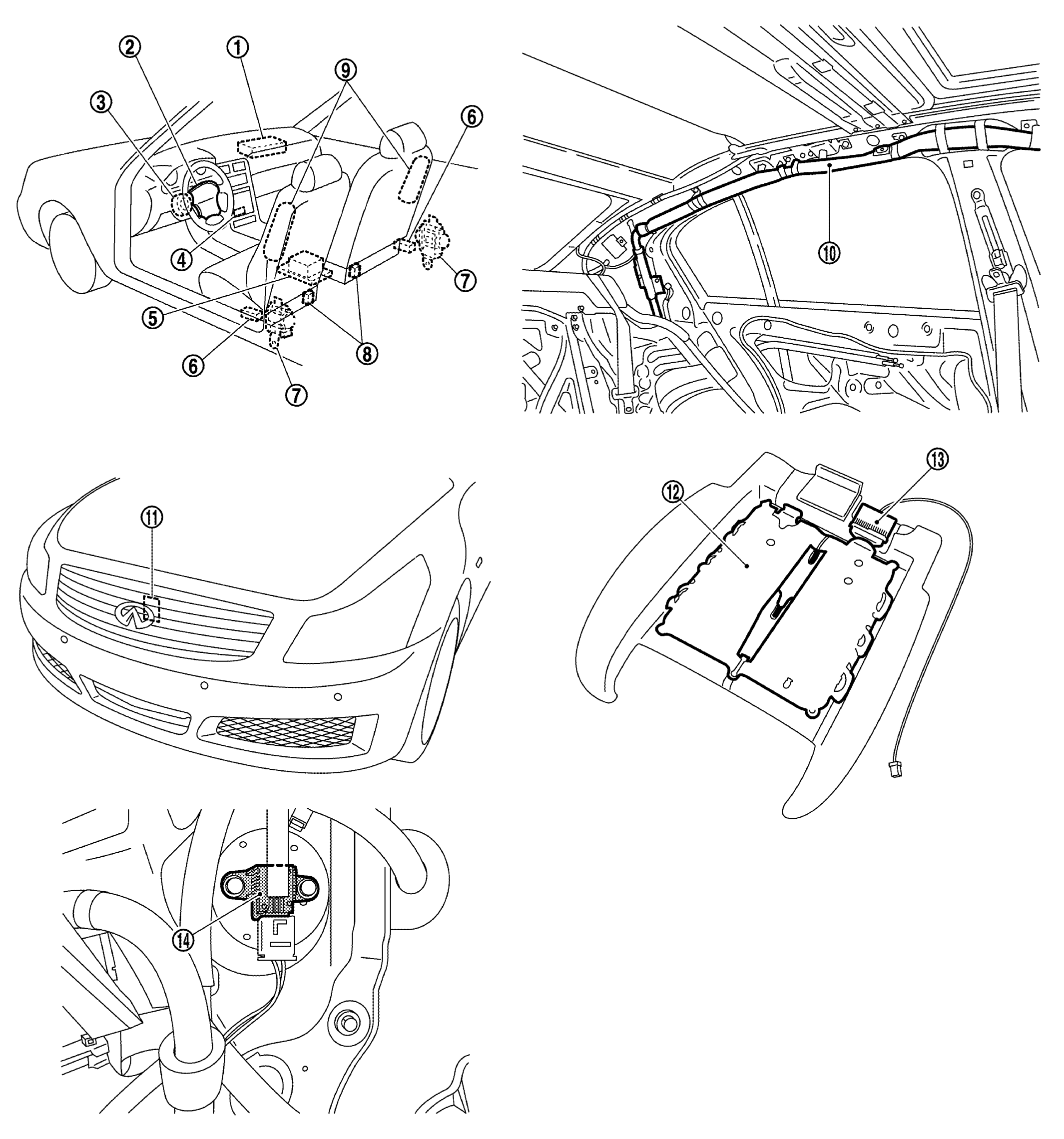

Component Parts Location
| 1. | Front passenger air bag module-1 Front passenger air bag module-2 |
2. | Driver air bag module | 3. | Combination switch (spiral cable) |
| 4. | Front passenger air bag off indicator | 5. | Air bag diagnosis sensor unit | 6. | LH/RH side air bag (satellite) sensor |
| 7. | Front LH/RH seat belt pre-tensioner | 8. | Seat belt buckle switch | 9. | Front LH/RH side air bag module |
| 10. | LH/RH side curtain air bag module | 11. | Crash zone sensor | 12. | Occupant Classification System seat sensor mat |
| 13. | Occupant Classification System control unit | 14. | Front door satellite sensor (LH/RH) |
