Exploded View With Torque Specifications

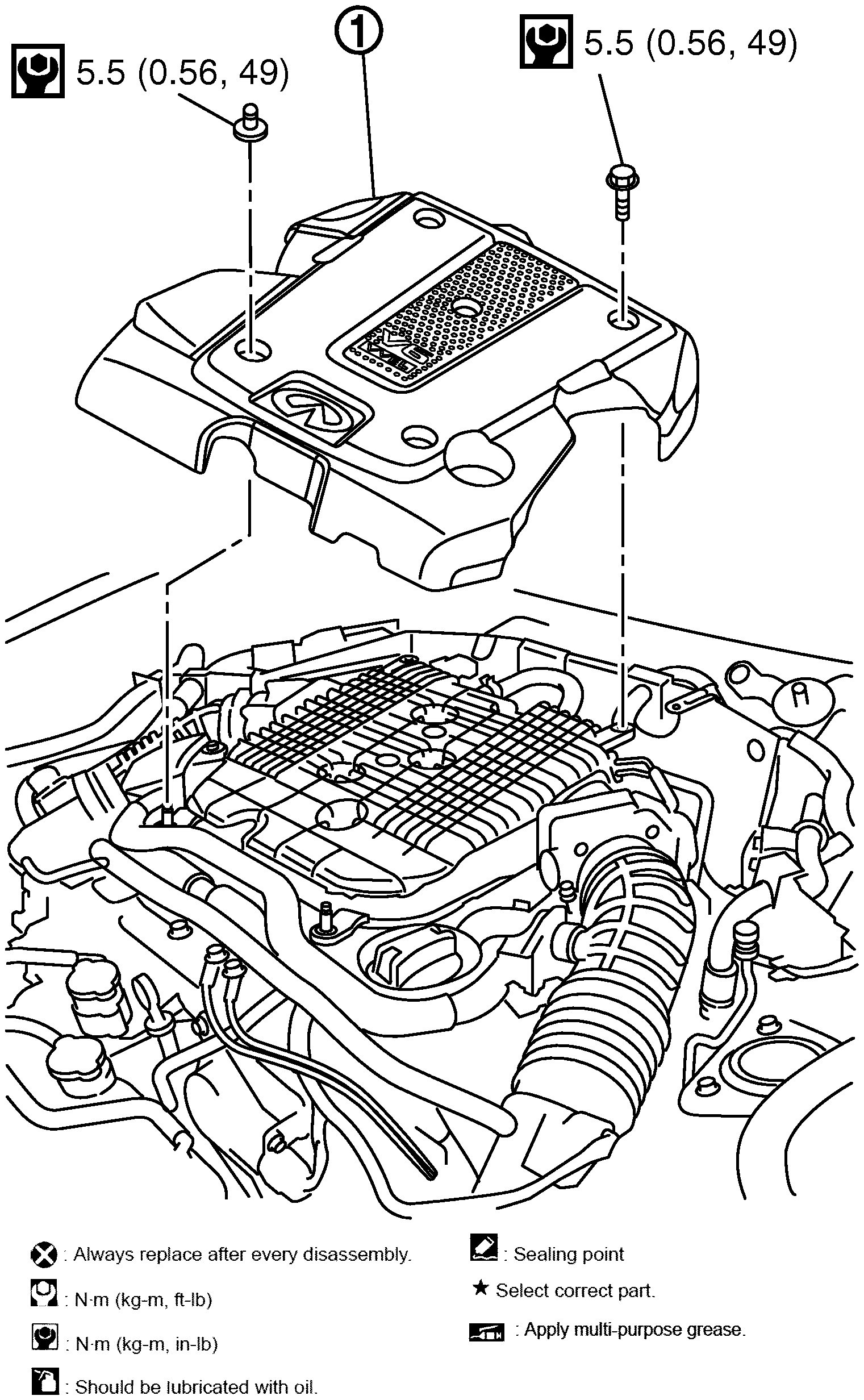

Fig 1: Exploded View Of Engine Cover With Torque Specifications
GNSJPBIA1049GB-049Courtesy of NISSAN NORTH AMERICA, INC.
1 : Engine cover
Refer to COMPONENTS for symbols in the figure.
