Removal And Installation: Installation

Note the following, and install in the reverse order of removal.

• When installing the transfer to the transmission, install the mounting bolts following the standard below, tighten bolts to the specified torque.

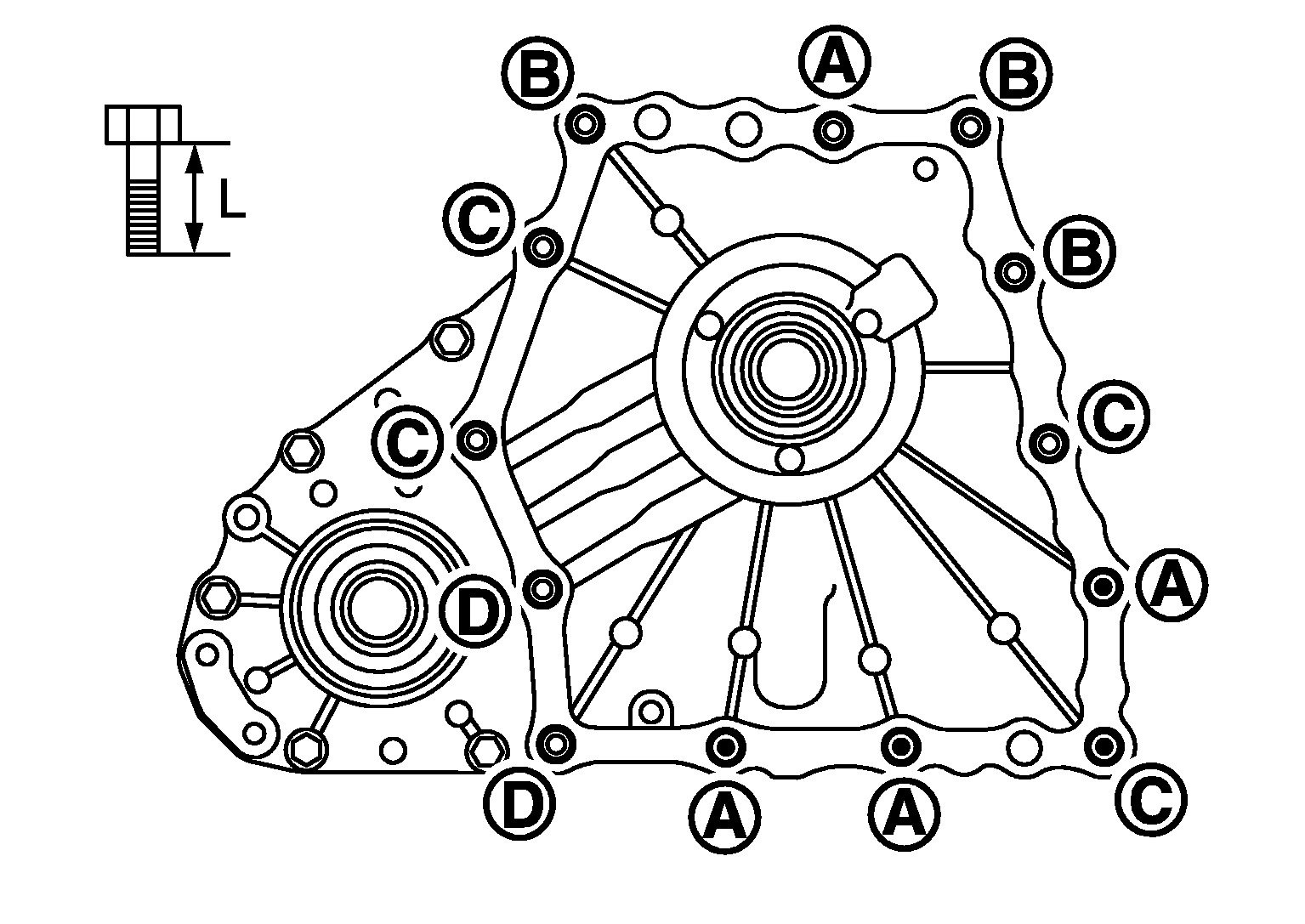

  Fig 1: Identifying Transfer To Transmission And Transmission To Transfer Mounting Bolts

  Courtesy of NISSAN NORTH AMERICA, INC.

  Bolt No.	A	B	C	D
  Quantity	4	3	4	2
  Bolt length " L "mm (in)	75 (2.95)	45 (1.77)	40 (1.57)	30 (1.18)

  : Transfer to transmission.

  : Transmission to transfer.

• When installing transfer air breather hose, make sure there are no pinched or restricted areas on the transfer air breather hose caused by bending or winding.
  • Be sure to insert until front side end (A) of air breather hose (1) reaches the end and rear side end (B) reaches the tube bent R.

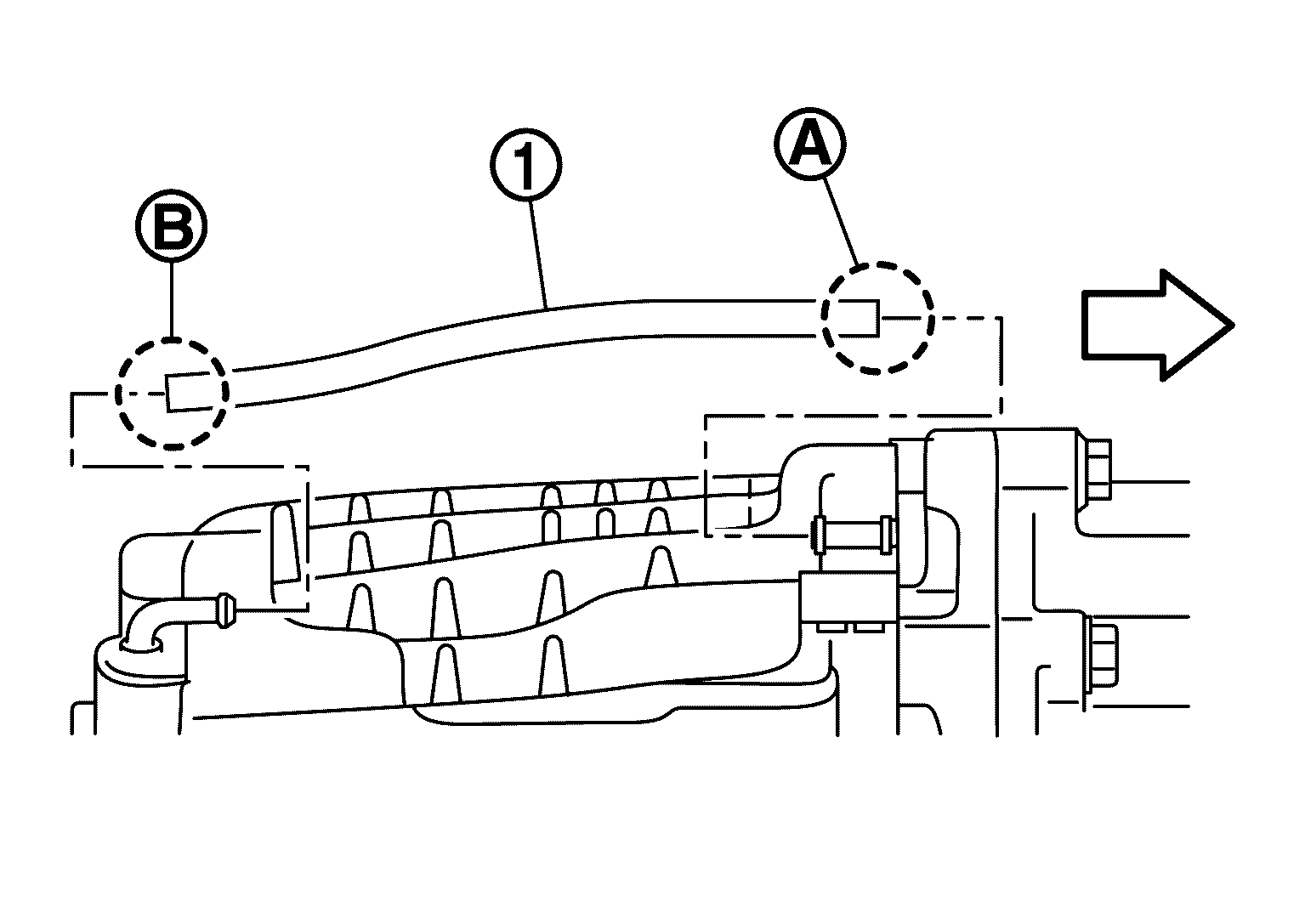

    Fig 2: Identifying Breather Hose

    Courtesy of NISSAN NORTH AMERICA, INC.

    : Vehicle front

• After the installation, check the fluid level, fluid leakage and the A/T positions. Refer to INSPECTION .
