Special Service Tools

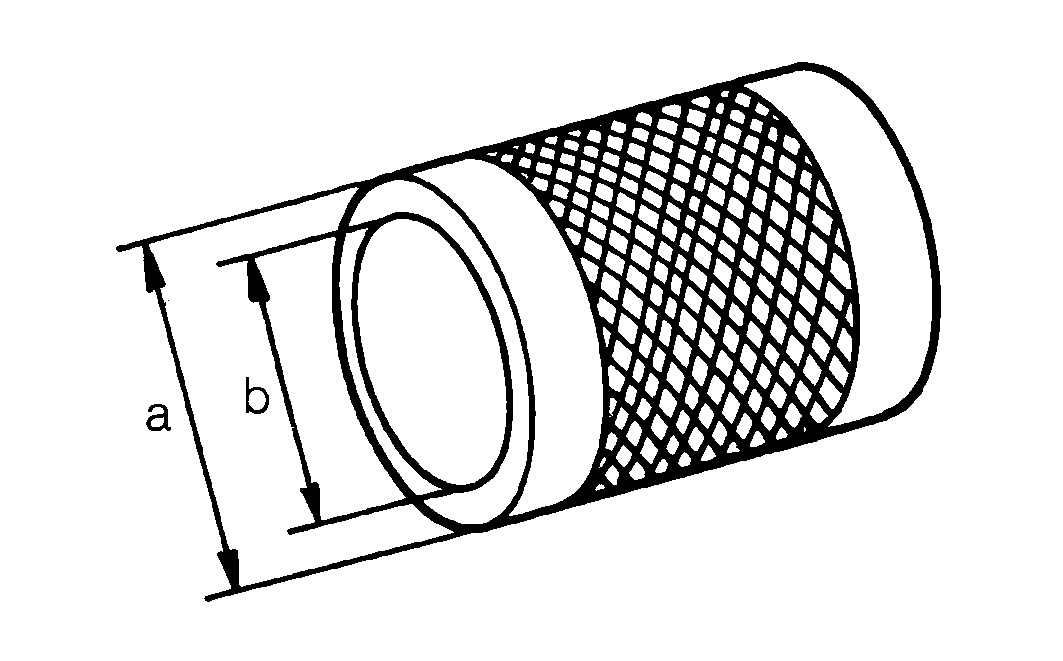

The actual shapes of TechMate tools may differ from those of special service tools illustrated here.

Tool number (TechMate No.) Tool name		Description
ST27862000 (-) Drift a: 62.5 mm (2.461 in) dia. b: 42 mm (1.65 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing front oil seal
KV381054S0 (J-34286) Puller	Courtesy of NISSAN NORTH AMERICA, INC.	Removing rear oil seal
ST30720000 (J-25405) Drift a: 77 mm (3.03 in) dia. b: 55.5 mm (2.185 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing rear oil seal Installing main shaft oil seal
KV40104830 (-) Drift a: 70 mm (2.76 in) dia. b: 63.5 mm (2.500 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing rear oil seal
ST33052000 (-) Drift a: 28 mm (1.10 in) dia. b: 22 mm (0.87 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Removing main shaft assembly
ST35321000 (-) Drift a: 49 mm (1.93 in) dia. b: 41 mm (1.61 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing main shaft assembly
ST31214000 (J-25269-B) Drift a: 34 mm (1.34 in) dia. b: 25.5 mm (1.004 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Removing front drive shaft front bearing Removing front drive shaft rear bearing
ST33200000 (J-26082) Drift a: 60 mm (2.36 in) dia. b: 44.5 mm (1.752 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing front drive shaft rear bearing
KV38104010 (-) Drift a: 67 mm (2.64 in) dia. b: 49 mm (1.93 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing front drive shaft front bearing
