Component Parts Location

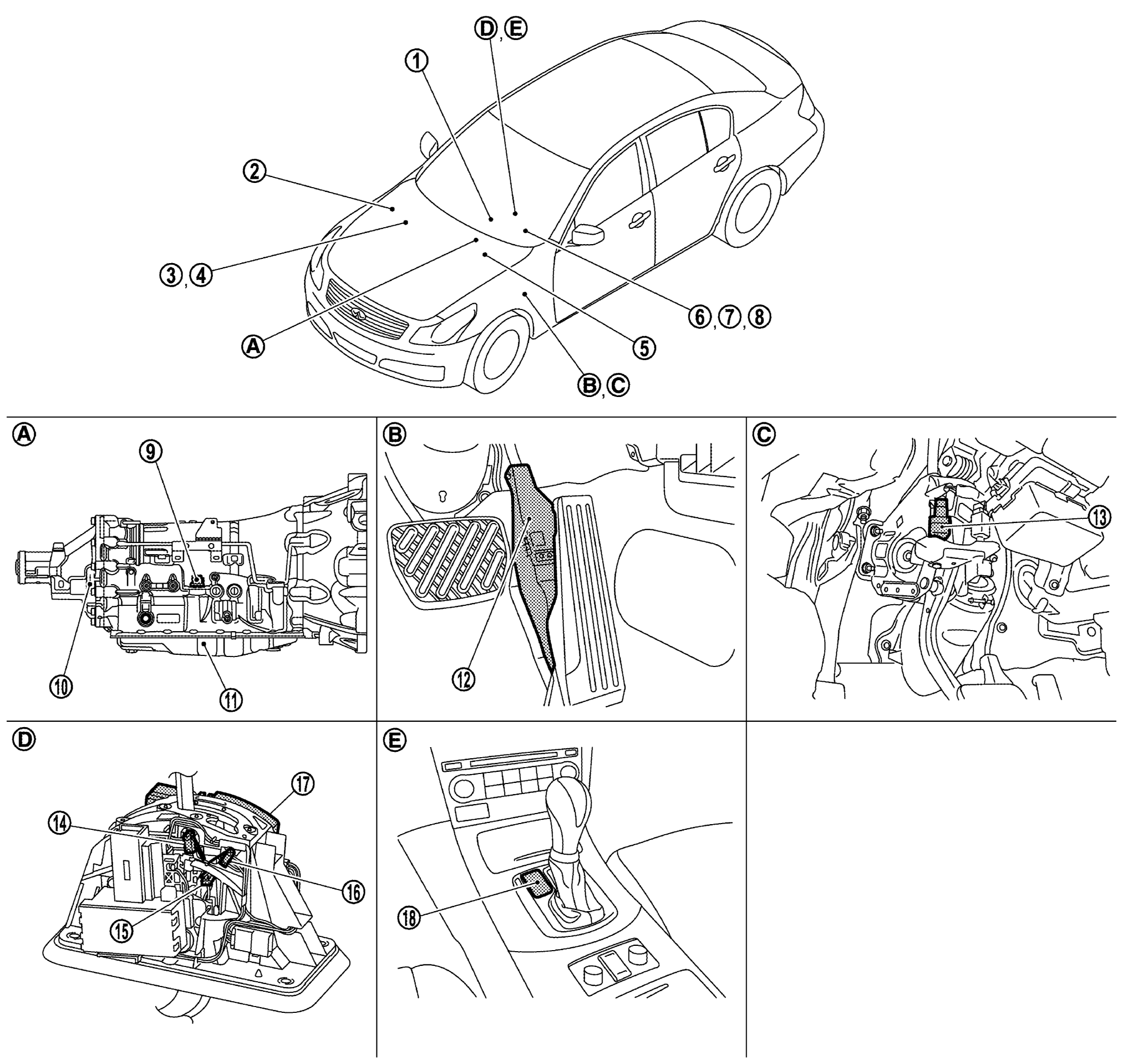

| 1. | Unified meter and A/C amp. Refer to COMPONENT PARTS LOCATION . |
2. | IPDM E/R Refer to COMPONENT PARTS LOCATION . |
3. | ECM Refer to COMPONENT PARTS LOCATION . |
| 4. | BCM Refer to COMPONENT PARTS LOCATION . |
5. | ABS actuator and electric unit (control unit) Refer to COMPONENT PARTS LOCATION . |
6. | A/T CHECK indicator lamp (On the combination meter) |
| 7. | Shift position indicator (On the combination meter) |
8. | Manual mode indicator (On the combination meter) |
9. | A/T assembly connector |
| 10. | Output speed sensor*1 | 11. | Control valve & TCM*2 | 12. | Accelerator pedal position signal |
| 13. | Stop lamp switch | 14. | Manual mode position select switch (shift-up) | 15. | Manual mode select switch |
| 16. | Manual mode position select switch (shift-down) | 17. | Shift position switch | 18. | Selector lever position indicator |
| A. | A/T assembly | B. | Accelerator pedal, upper | C. | Brake pedal, upper |
| D. | A/T shift selector assembly | E. | Center console | ||
| *1 | : Output speed sensor is installed in A/T assembly. | ||||
| *2 | : Control valve & TCM is installed in A/T assembly. | ||||
NOTE:
The following components are included in control valve & TCM (11).
- TCM
- Input speed sensor 1, 2
- A/T fluid temperature sensor
- Transmission range switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve
