Exploded View With Torque Specifications

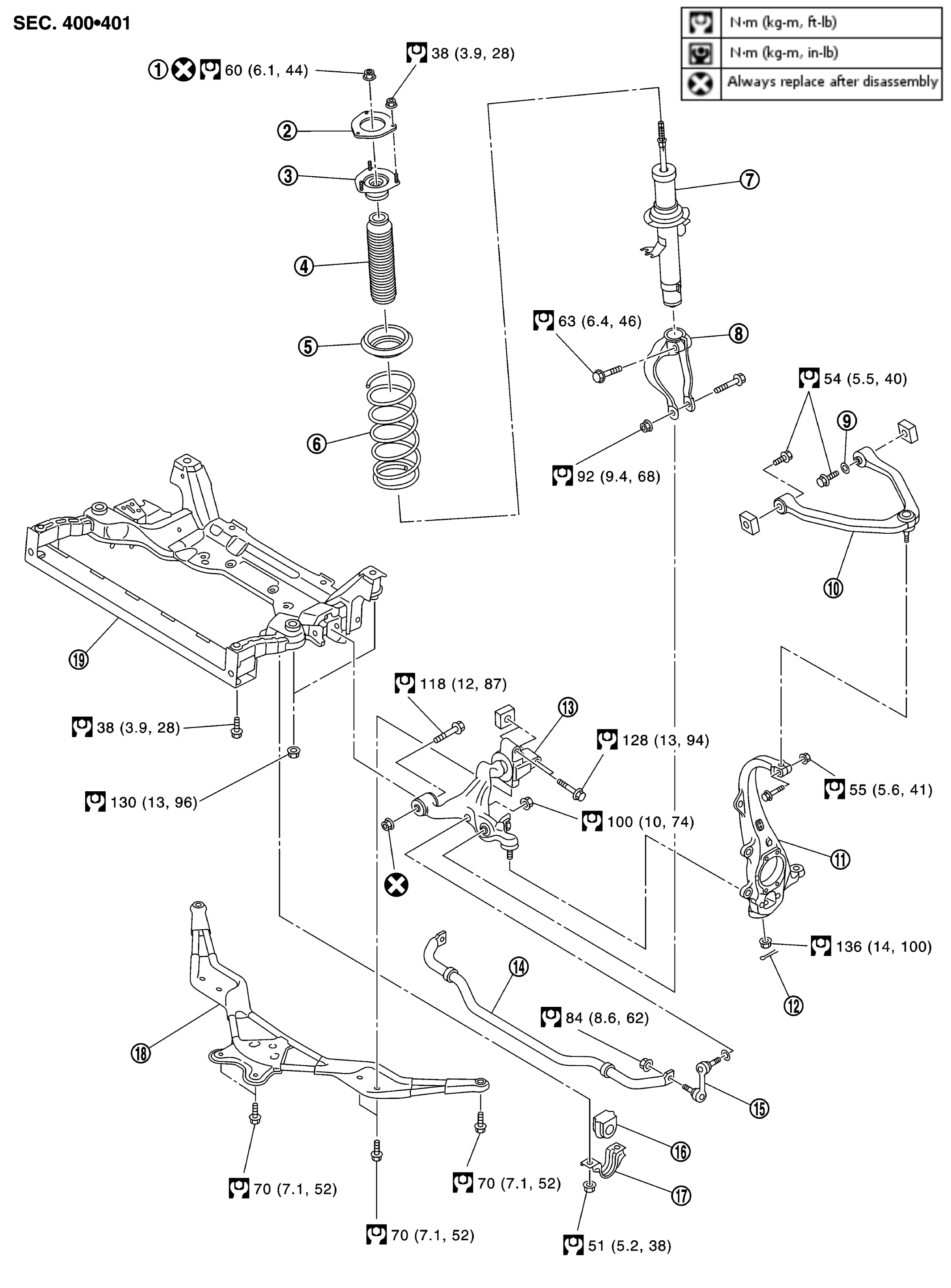

Fig 1: Exploded View Of Front Suspension Member With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Piston rod lock nut	2.	Mounting seal	3.	Shock absorber mounting bracket
4.	Bound bumper	5.	Rubber seat	6.	Coil spring
7.	Shock absorber	8.	Shock absorber arm	9.	Stopper rubber
10.	Upper link	11.	Steering knuckle	12.	Cotter pin
13.	Transverse link	14.	Stabilizer bar	15.	Stabilizer connecting rod
16.	Stabilizer bushing	17.	Stabilizer clamp	18.	Front cross bar
19.	Front suspension member
Refer to COMPONENTS for symbols in the figure.
