Electronically Controlled Power Steering System Connectors

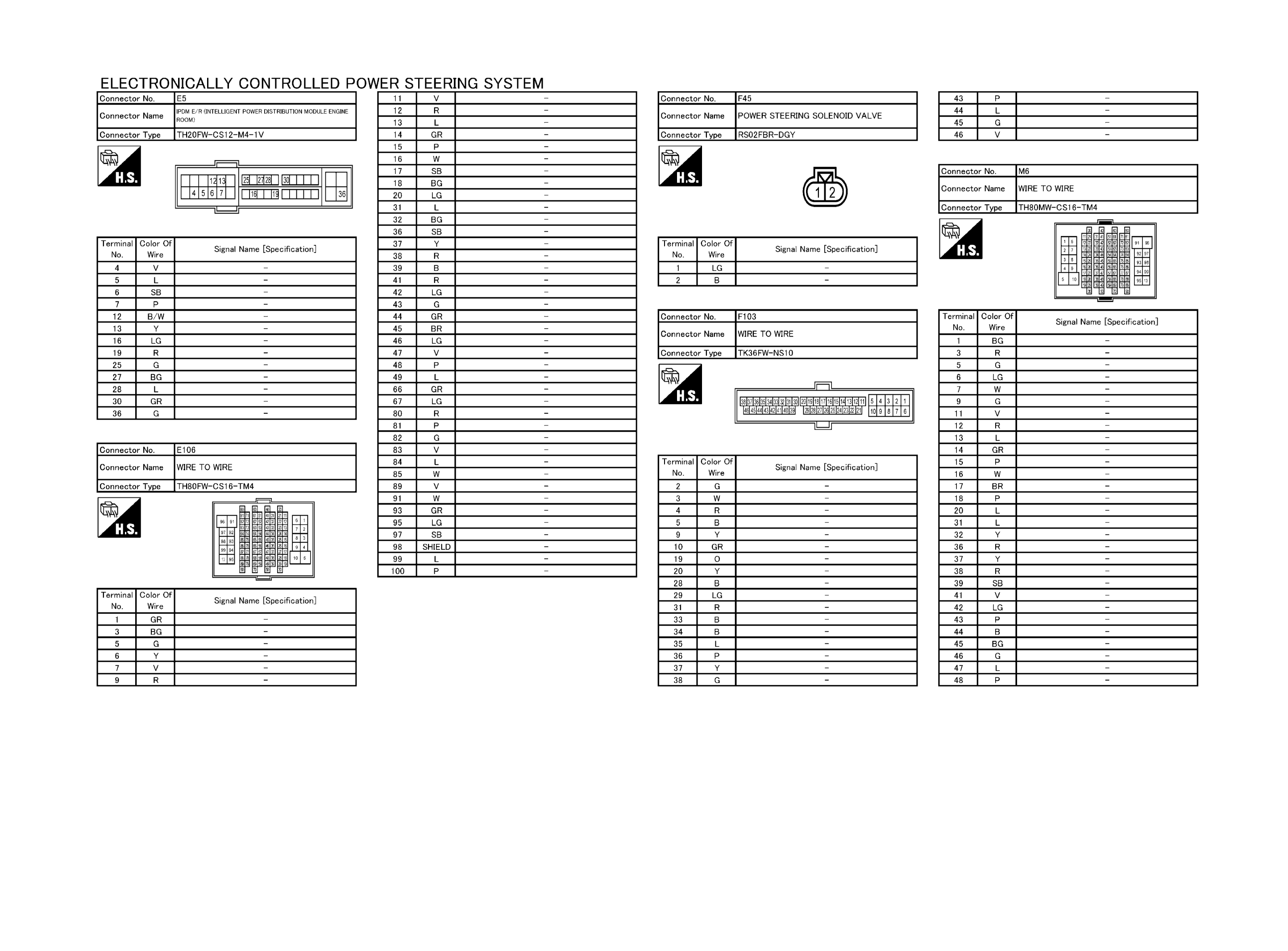

Fig 1: Electronically Controlled Power Steering System Connectors (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

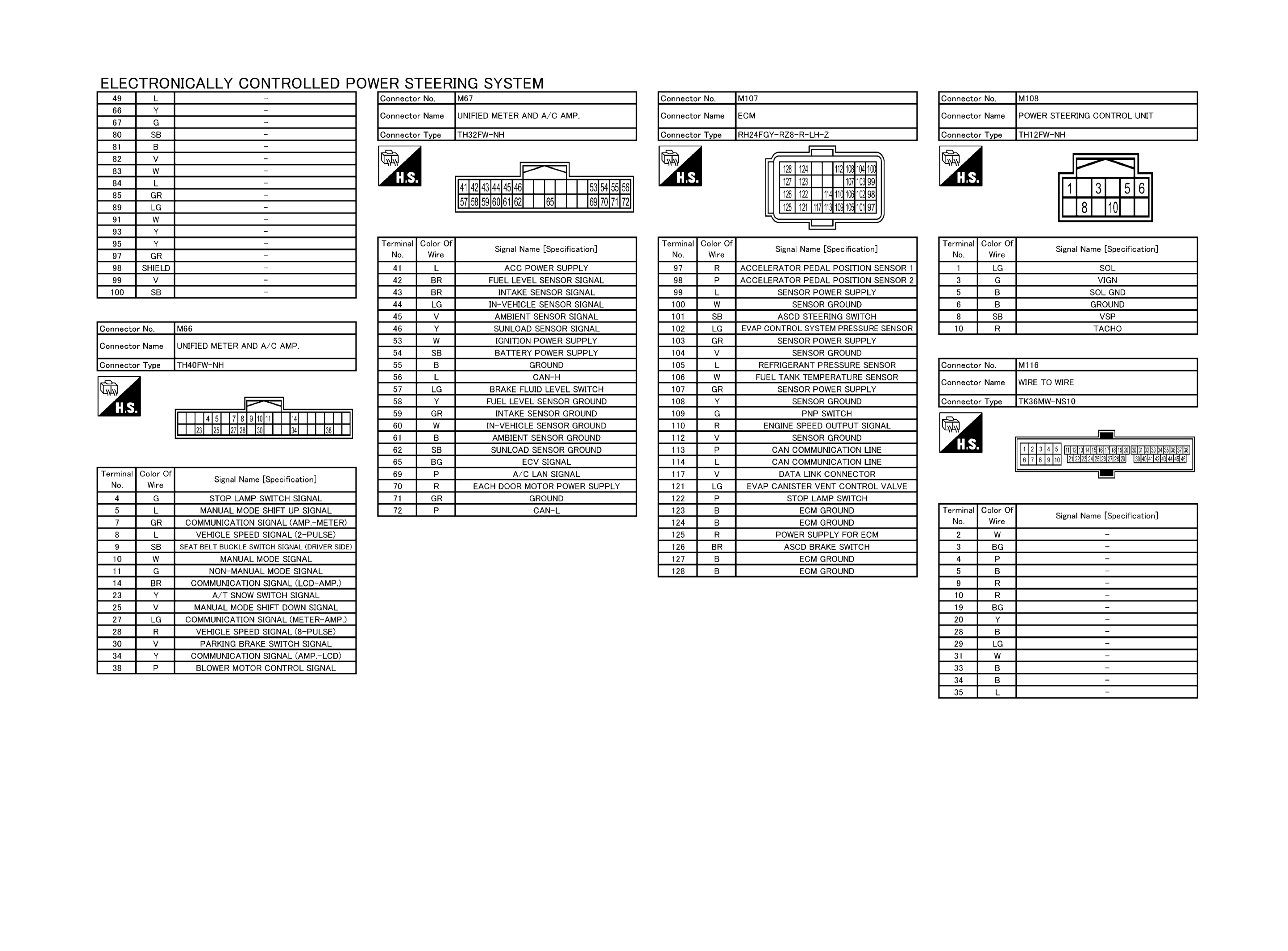

Fig 2: Electronically Controlled Power Steering System Connectors (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

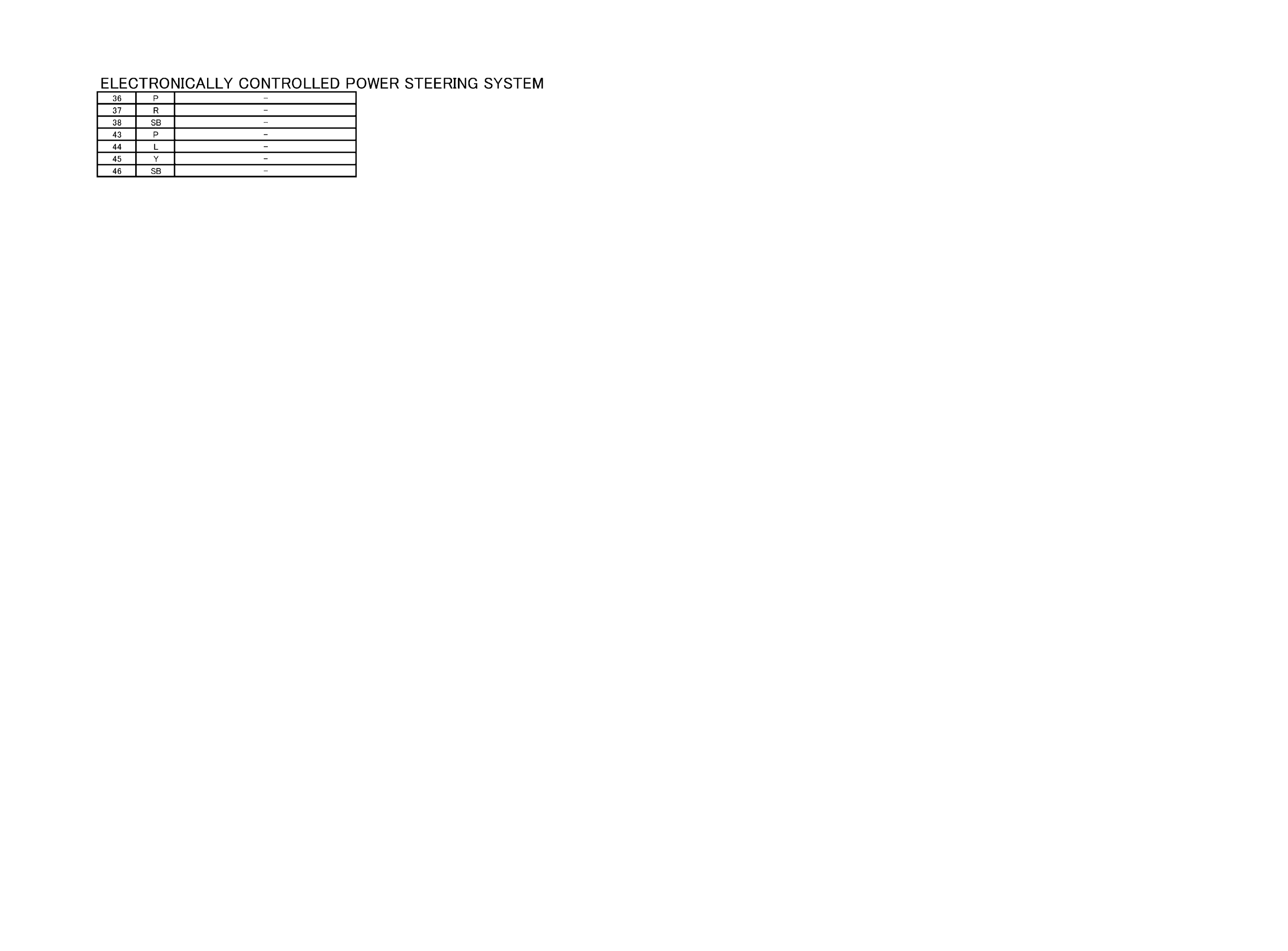

Fig 3: Electronically Controlled Power Steering System Connectors (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
