SRS Airbag Control System
>>
System Description
>>
SRS Air Bag System
>>
System Diagram
System Diagram

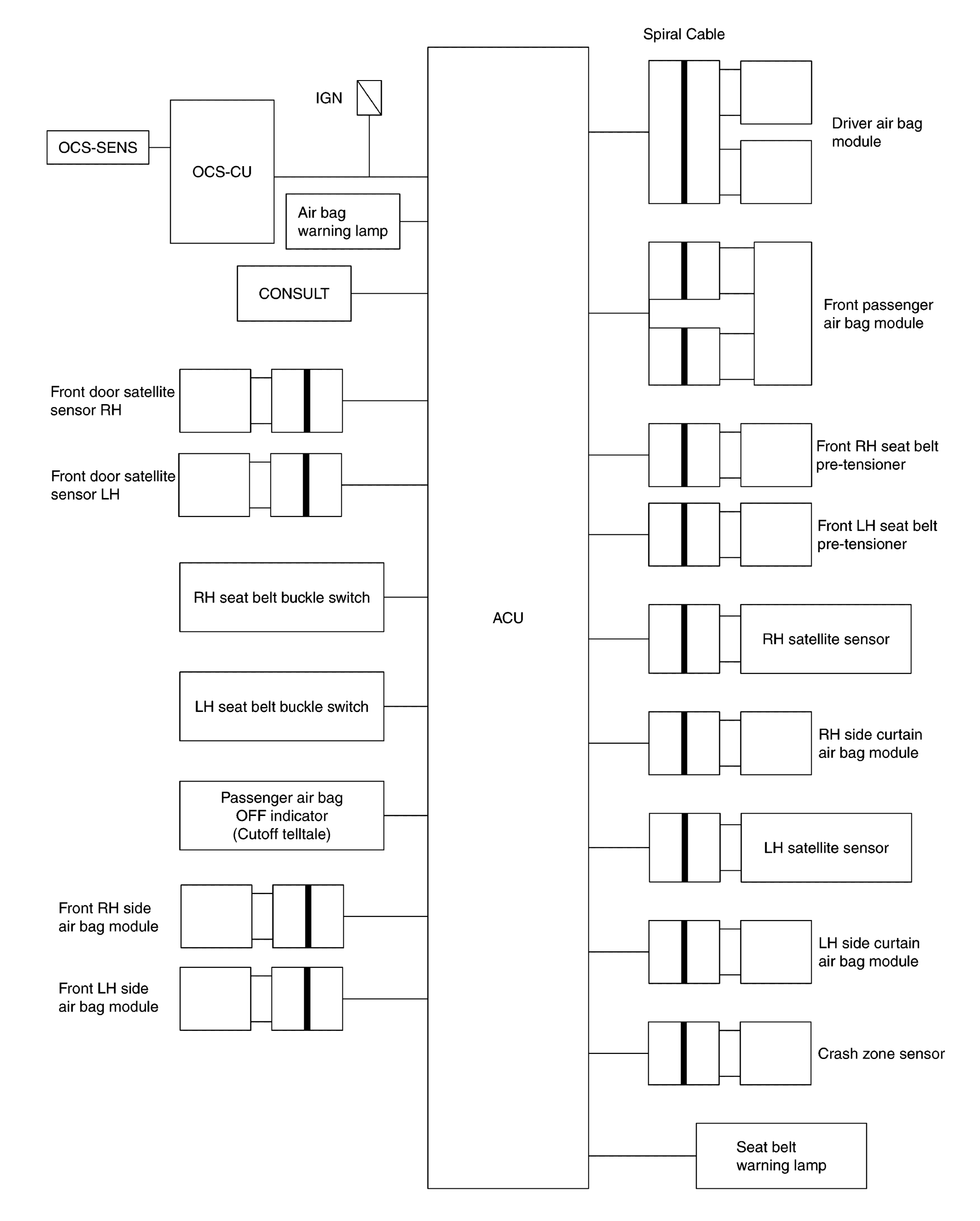

Fig 1: SRS Air Bag System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
