Exploded View With Torque Specifications

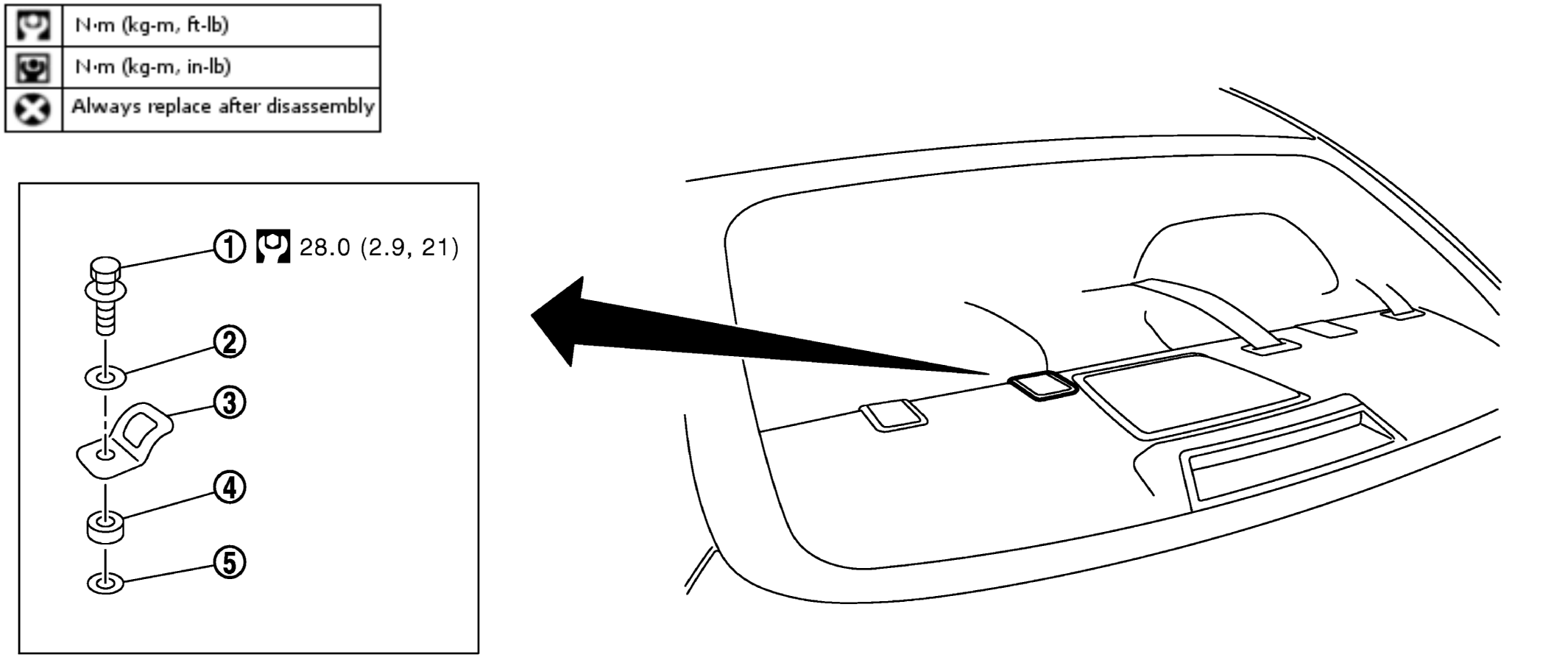

Fig 1: Exploded View Of Top Tether Strap Child Restraint With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Anchor bolt	2.	Wave washer	3.	Anchor plate
4.	Spacer	5.	Fiber washer
	: N•m (kg - m, ft - lb)
