Body Electrical
>>
Power Control System (Power Distribution System)
>>
DTC/Circuit Diagnosis
>>
Power Distribution System
>>
PDS (Power Distribution System) Wiring Diagram
PDS (Power Distribution System) Wiring Diagram

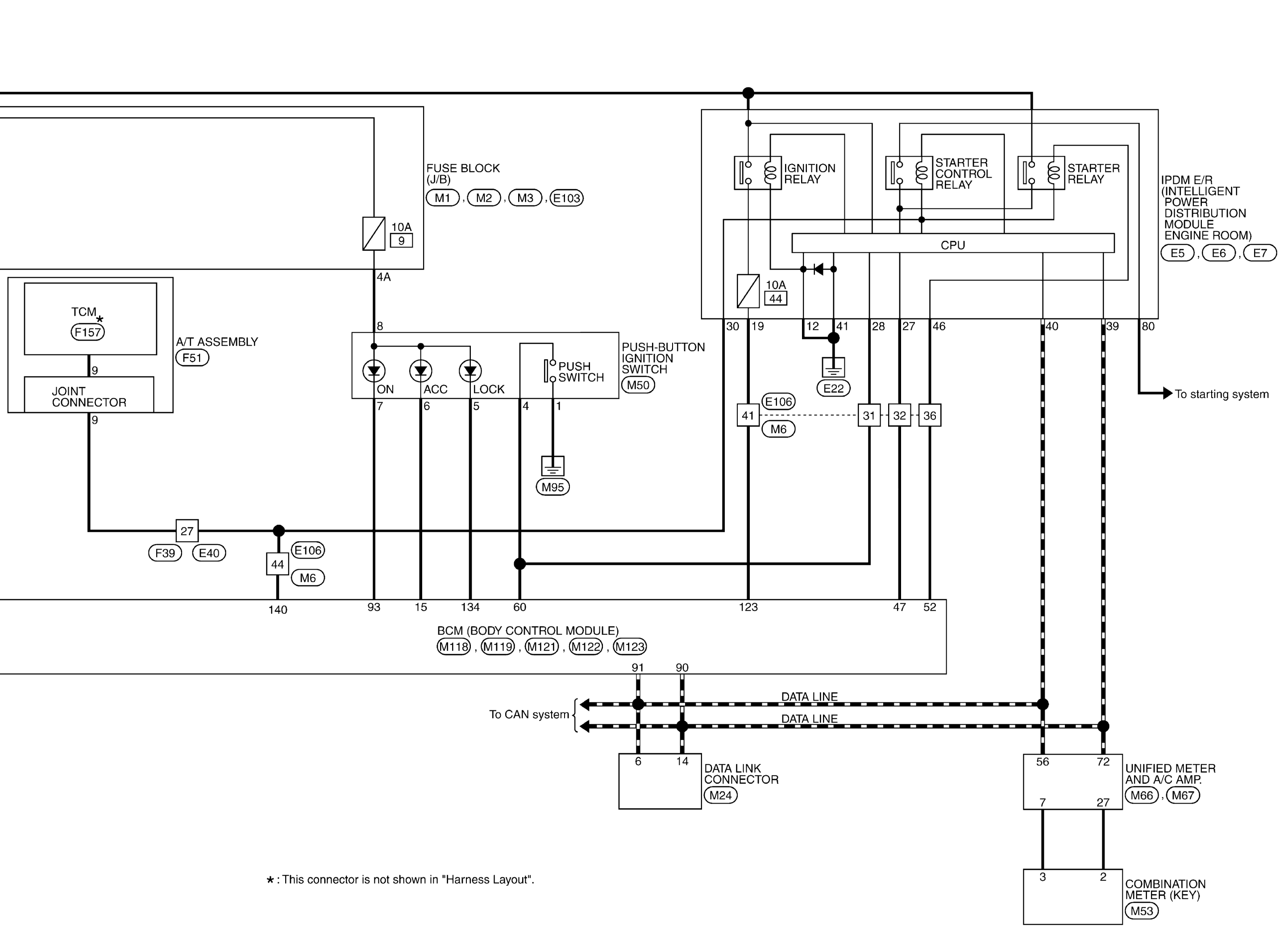

Fig 1: PDS (Power Distribution System) Wiring Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

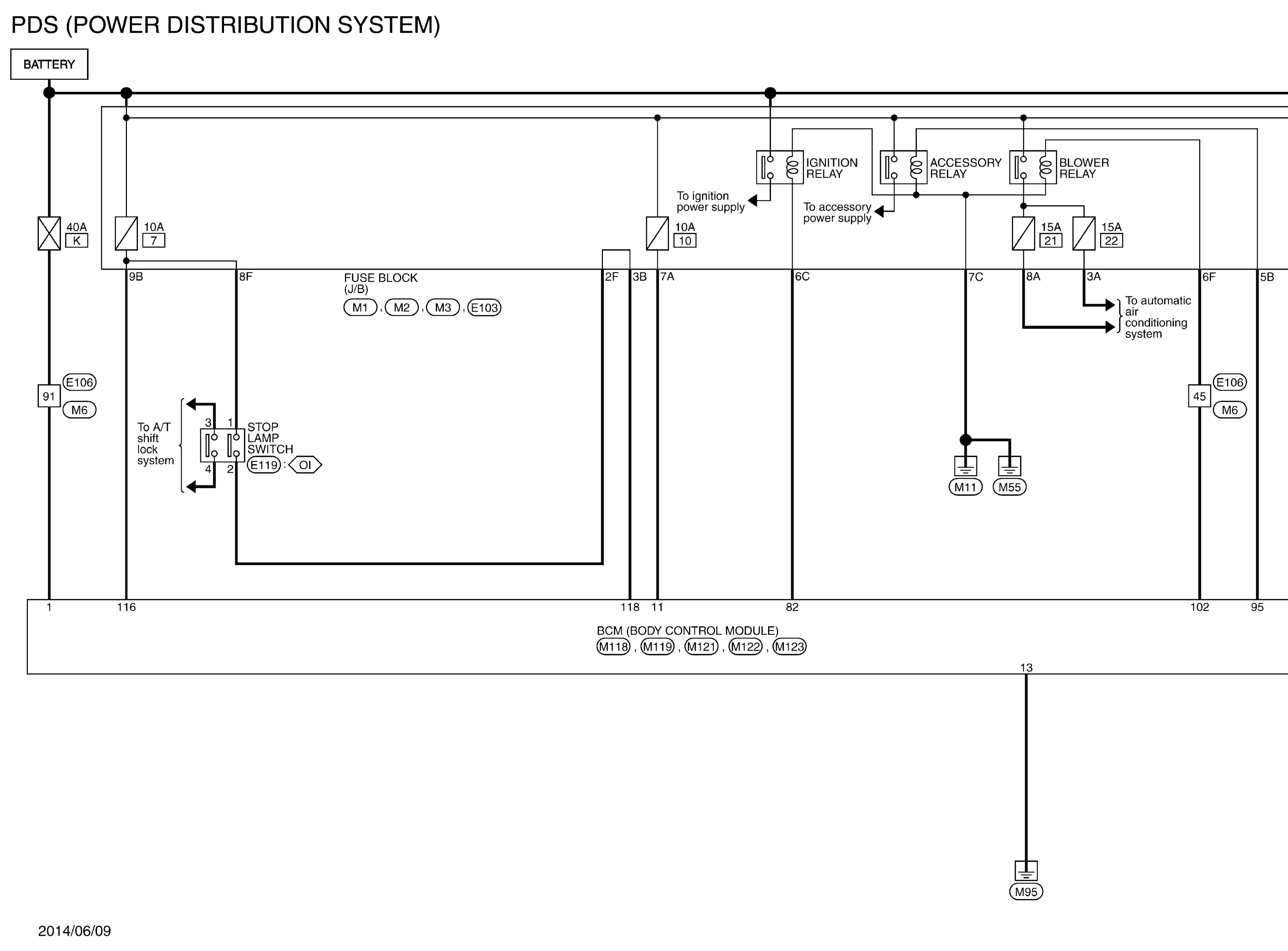

Fig 2: PDS (Power Distribution System) Wiring Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
