Exploded View With Torque Specifications

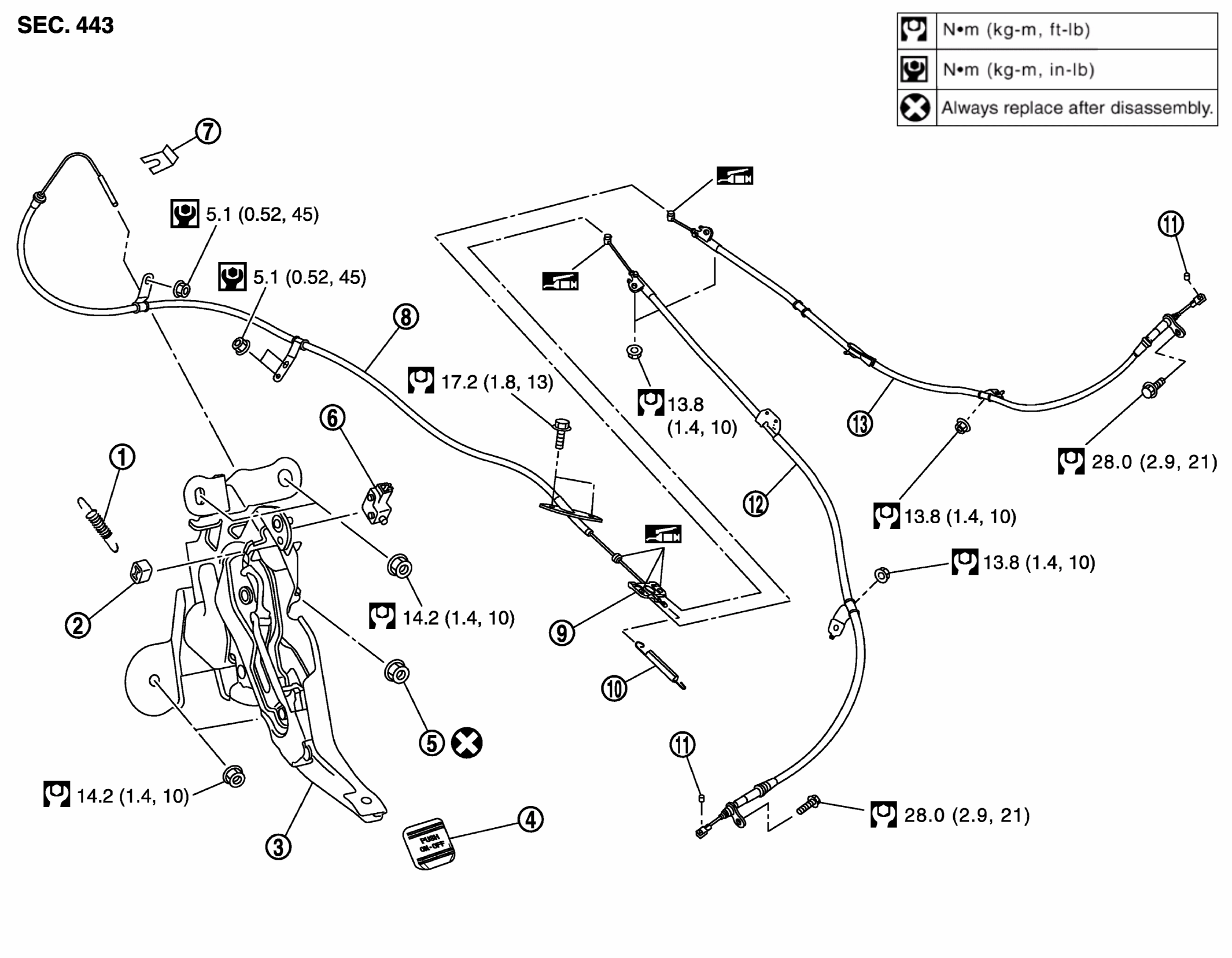

Fig 1: Exploded View Of Parking Brake Control With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Return spring	2.	Stopper rubber	3.	Parking brake pedal assembly
4.	Pedal pad	5.	Adjusting nut	6.	Parking brake switch
7.	Lock plate	8.	Front cable	9.	Equalizer
10.	Spring	11.	Pin	12.	Rear cable (left side)
13.	Rear cable (right side)
: Apply multi-purpose grease.
Refer to COMPONENTS for symbols not described on the above.
