Power Window Control System Wiring Diagram

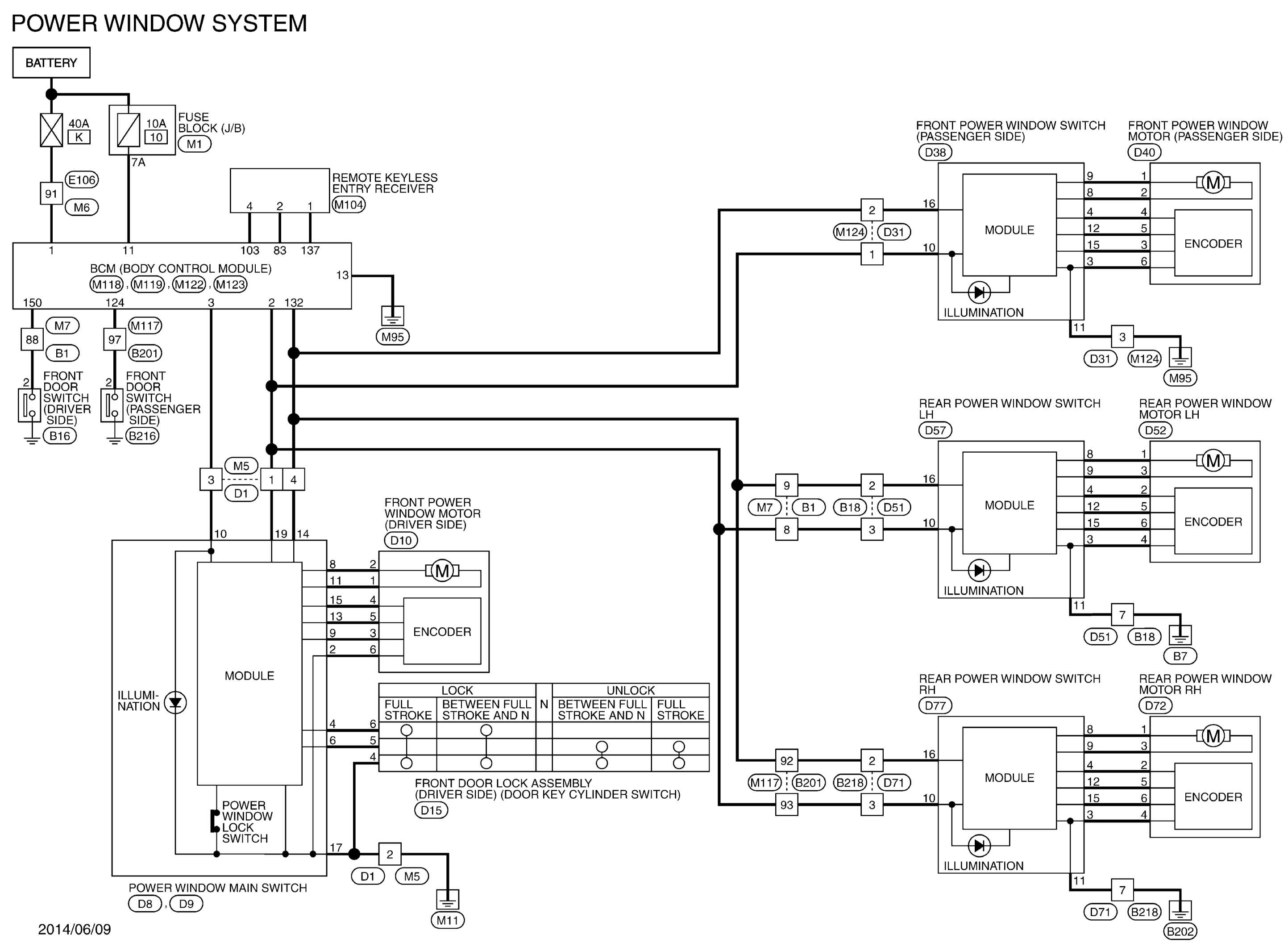

Fig 1: Power Window Control System Wiring Diagram

GNSJRKWD7584GB-584

Courtesy of NISSAN NORTH AMERICA, INC.
