Exploded View With Torque Specifications: Armrest

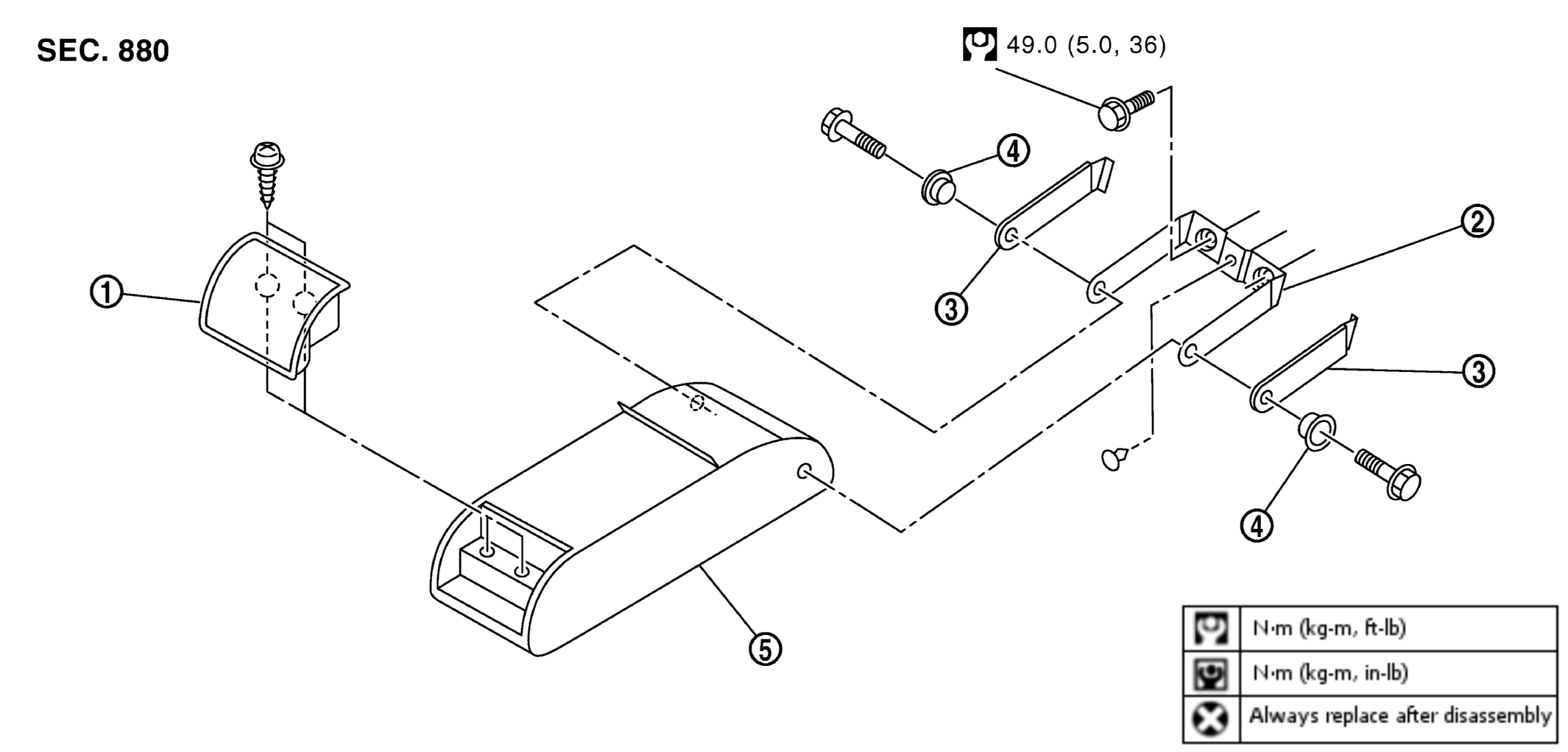

Fig 1: Exploded View Of Armrest With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cup holder	2.	Armrest bracket	3.	Armrest bracket outer cover
4.	bushing	5.	Armrest trim and pad
	: N•m (kg - m, ft - lb)
