Component Parts Location

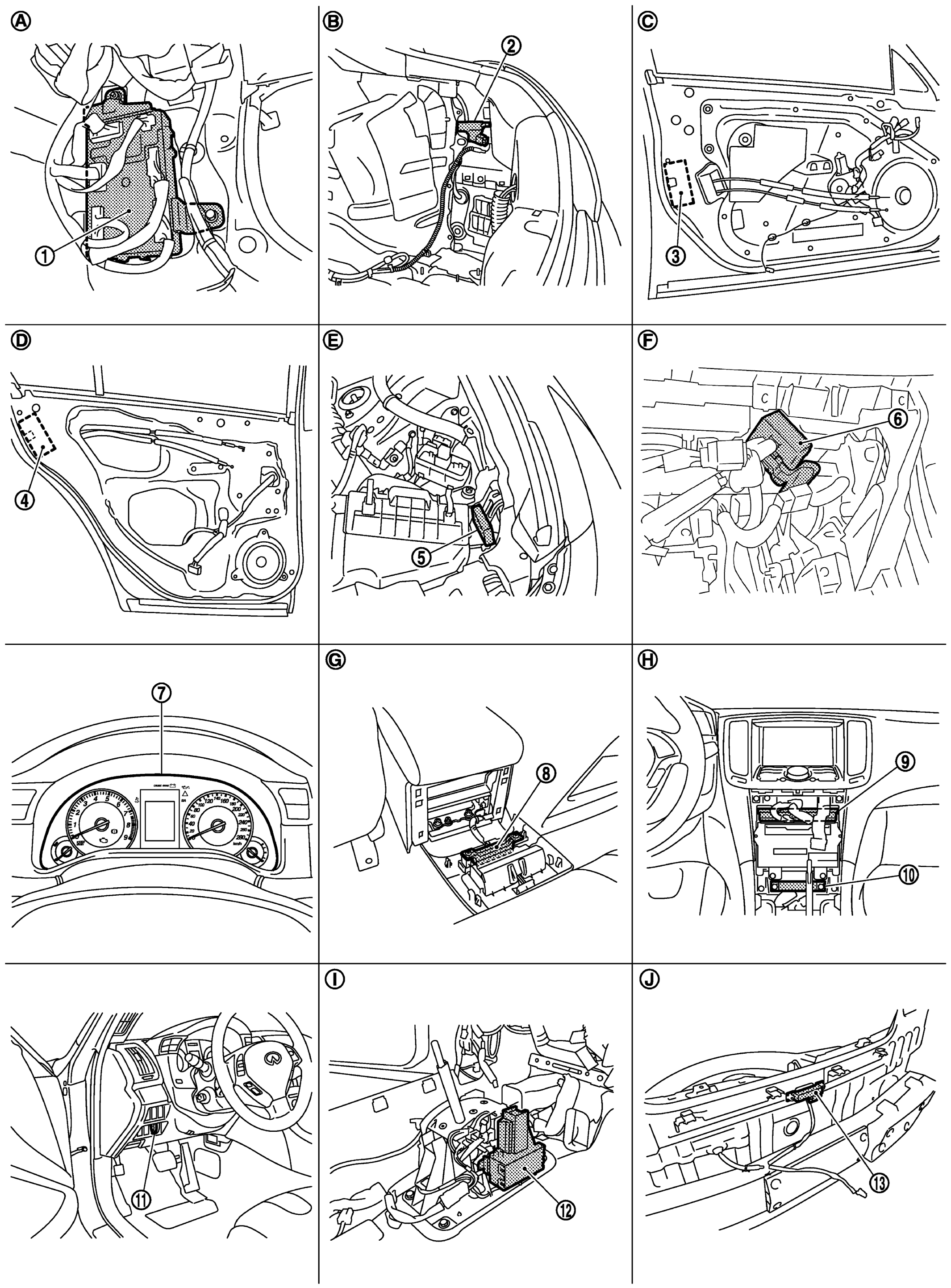

Fig 1: Intelligent Key System Component Parts Location (1 Of 2)
GNSJMKIA3521ZZ-521Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM M118, M119, M120, M121, M122, M123 2. Fuel lid lock actuator B242 3. Front door lock assembly (driver side) D15
4. Rear door lock assembly LH D55 5. Intelligent Key warning buzzer E57 6. Remote keyless entry receiver M104
7. Combination meter M53 8. Inside key antenna (console) M146 9. Unified meter and A/C amp. M66, M67
10. Inside key antenna (instrument center) M131 11. Key slot M22 12. A/T shift selector (detention switch) * M137
13. Outside key antenna (rear bumper) B63
A. Dash side lower (passenger side) B. View with trunk side finisher removed C. View with driver side door finisher removed
D. View with rear door finisher LH removed E. View with hood seal assembly removed F. Engine room dash panel
G. View with console rear finisher removed H. View with cluster lid C removed I. View with center console assembly removed
J. View with rear bumper removed

* : With A/T models

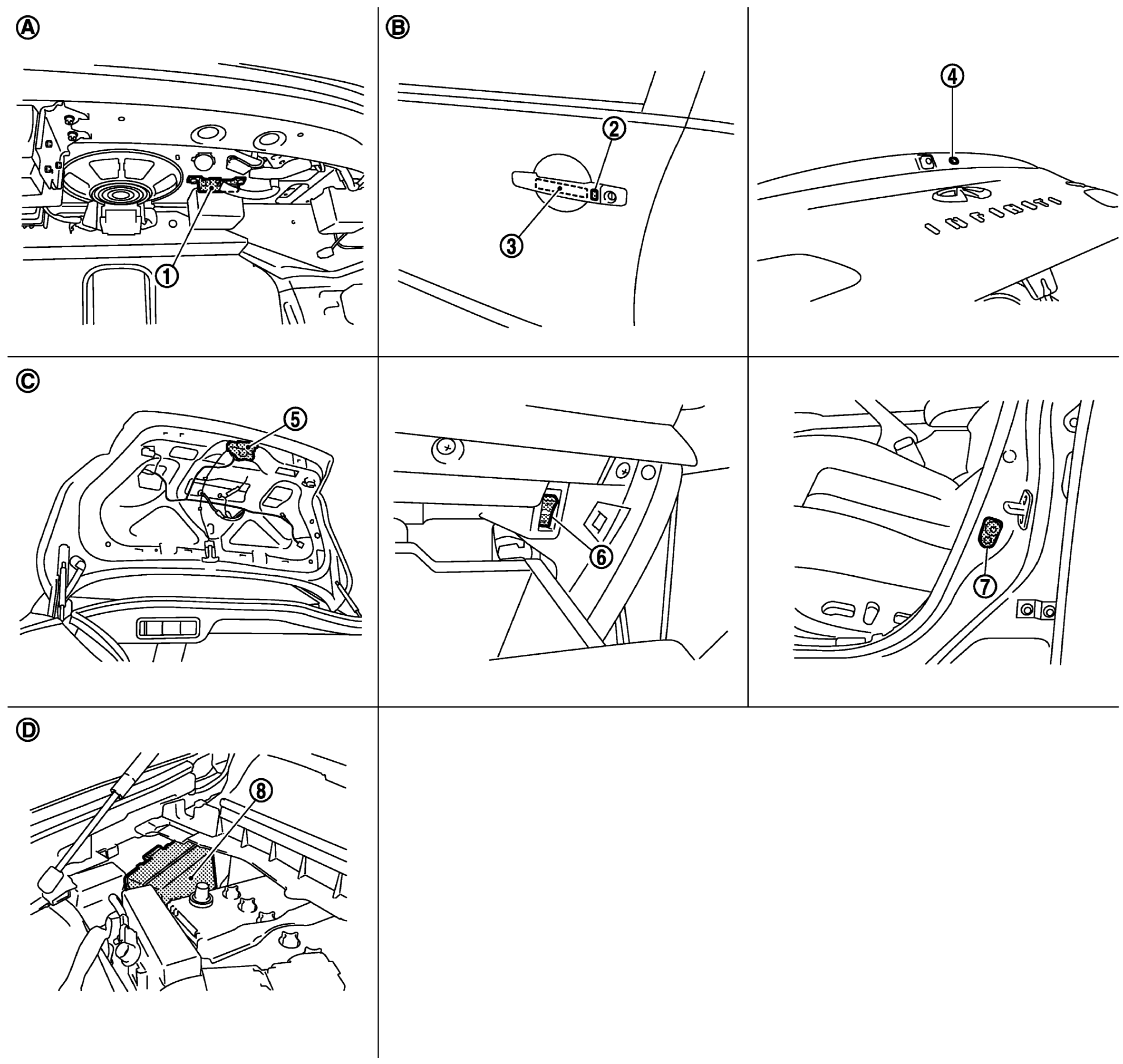

Fig 2: Intelligent Key System Component Parts Location (2 Of 2)
GNSJMKIA3522ZZ-522Courtesy of NISSAN NORTH AMERICA, INC.
1. Inside key antenna (trunk room) B49 2. Front outside handle LH (request switch) D13 3. Front outside handle LH (outside key antenna) D14
4. Trunk lid opener request switch B304 5. Trunk lid lock assembly B303 6. Trunk lid opener cancel switch M105
7. Front door switch (driver side) B16 8. IPDM E/R E5, E6
A. View with trunk front finisher removed B. View with driver side door C. View with trunk lid finisher removed
D. Engine room dash panel (RH)
