Engine Coolant Temperature Sensor Connector End View (F21)

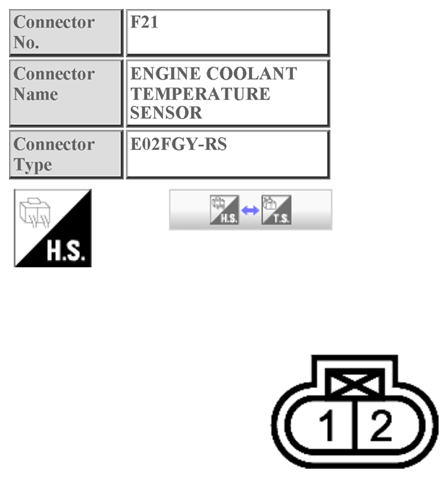

Fig 1: Engine Coolant Temperature Sensor Connector End View (F21)

G10440618

Courtesy of NISSAN NORTH AMERICA, INC.
