Exploded View

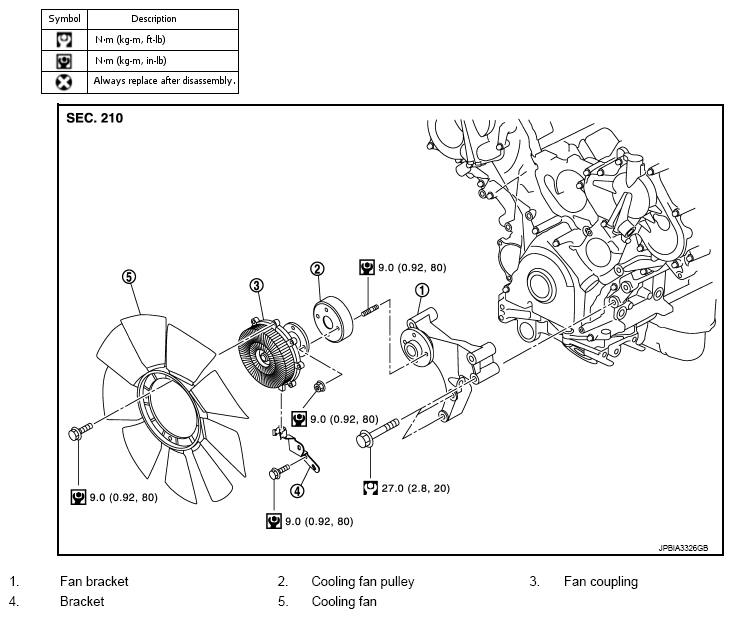

Fig 1: Exploded View Of Cooling Fan With Torque Specifications

G09180656

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
