Home
>>
Infiniti
>>
2014
>>
QX80 AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Removal And Installation
>>
Front Oil Seal
>>
Exploded View
Exploded View

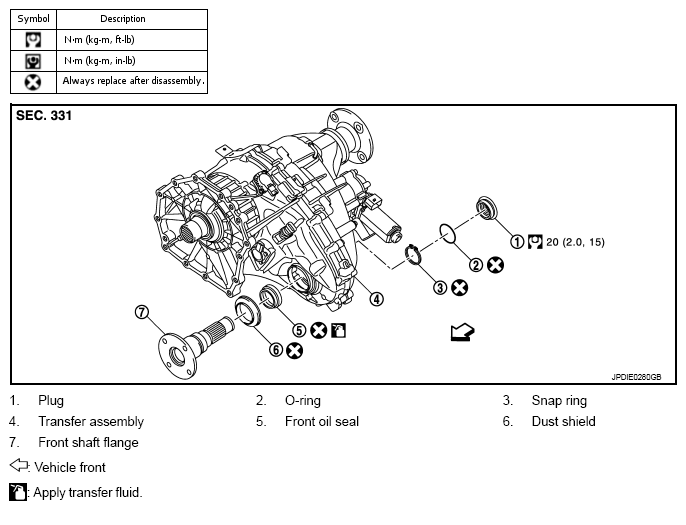

Fig 1: Exploded View Of Front Oil Seal With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols not described above.
