4WD: Exploded View
4WD: Exploded View

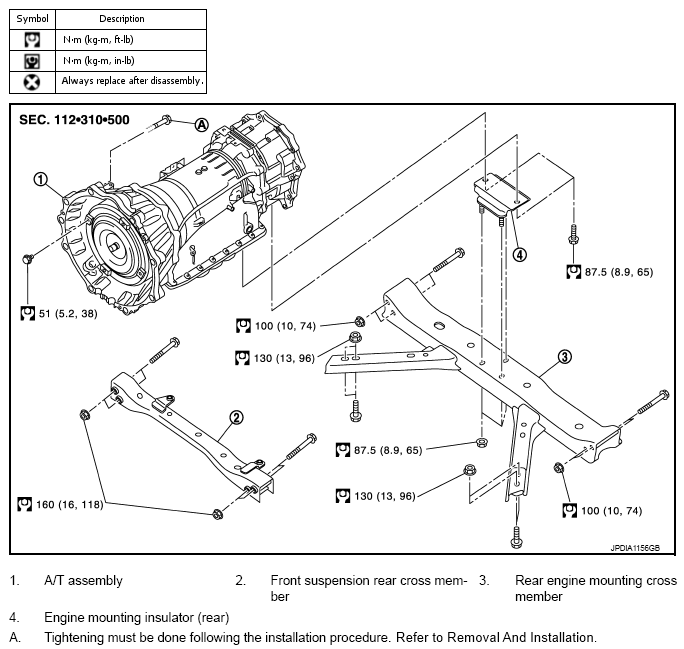

Fig 1: Exploded View Of Transmission Assembly (4WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
